Manual of NVUM_SP

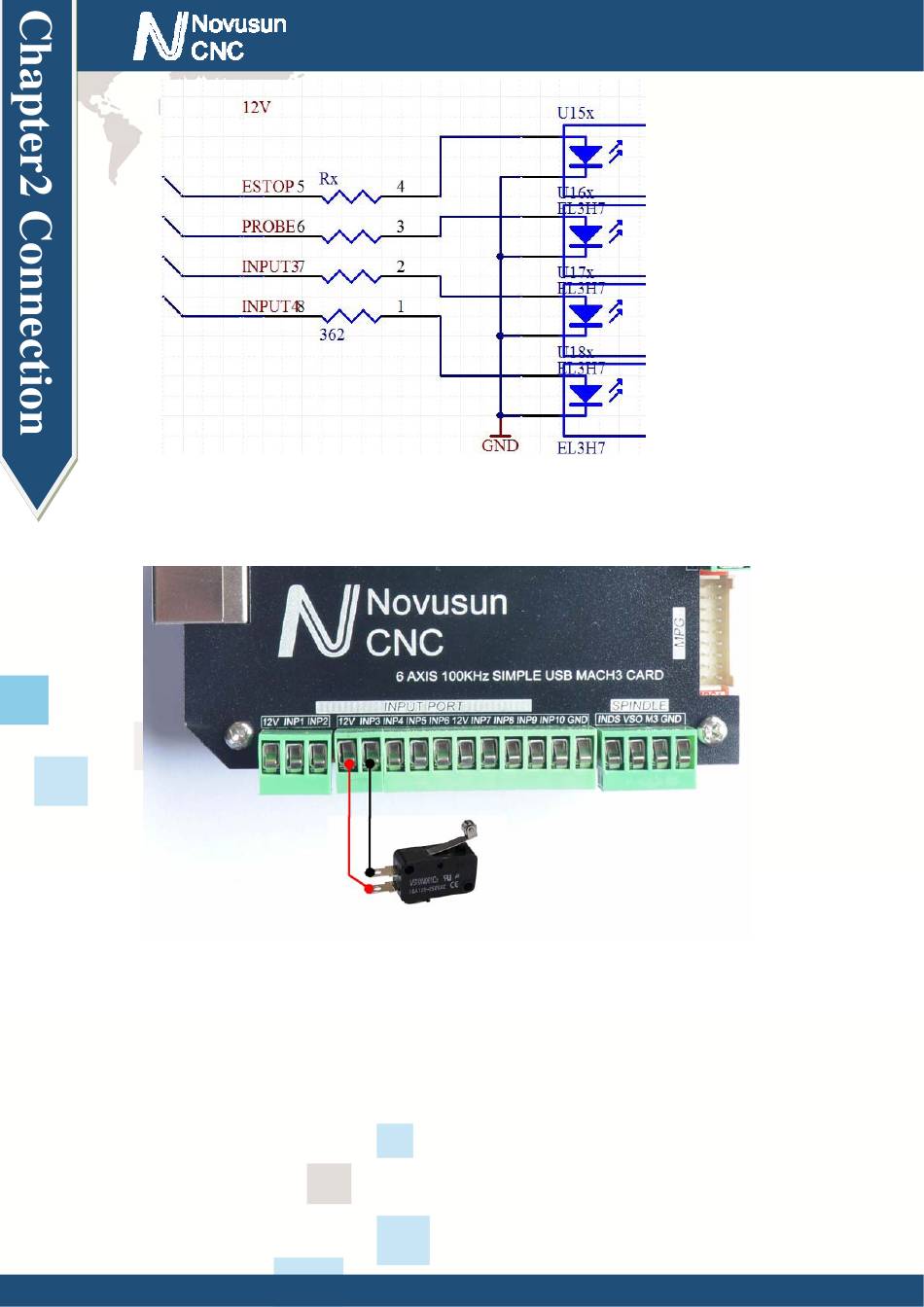

Figure2-9. Internal structure drawing of Input interface
2 lines Proximity Switch/ordinary fretting switch/ESTOP/probe drawing see as Figure 2-10
Figure2-10. 2 lines Proximity Switch/ordinary fretting switch/ESTOP/probe drawing
3 lines Proximity Switch connection Figure 2-11,brown cable for Proximity switch connect
with 12V,Black cable connect channel,blue cable connect with GND1.
Only support PNP 3lines proximity switch.
