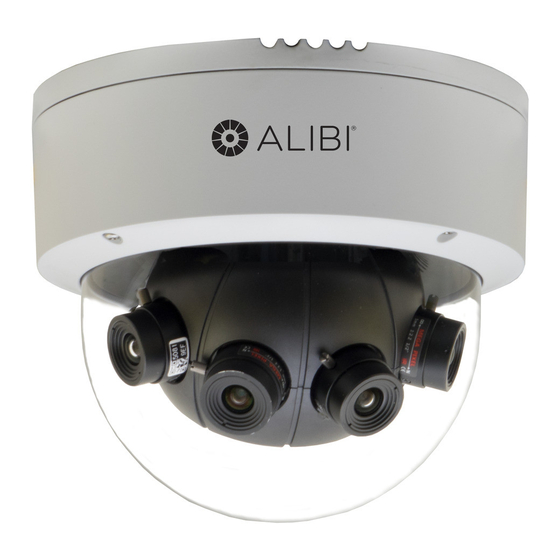

ALI-NP1018VHP 7.3MP 4-Sensor
Panoramic IP Dome Camera
Quick Installation Guide
This document guides you through the basic steps to install the ALI-NP1018VHP camera hardware. These
cameras feature:
Resolutions up to 4096 x 1800 pixels, 7.3 Megapixels
•
Low light .002 Lux color
•
DC driven auto iris
•
Backlight compensation, defog,
•
Video stream compression: H.264 standard, H.264 OVC (optimized video CODEC) and MJPEG
•
3D-DNR noise reduction and Digital Wide Dynamic Range (WDR)
•
Multi-power capable - Power over Ethernet (PoE), 12 Vdc
•
Weatherproof - IP66 rated and vandalproof - IK10 rated
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ IP Camera Firmware Version x.x User Manual provided at
•
www.alibisecurity.com/resources.
ALIBI™ Tools Utility Installation and User Manual
•
ALIBI™ Witness and ALIBI™ Witness HD Apps for Android - Quick Start Guide
•

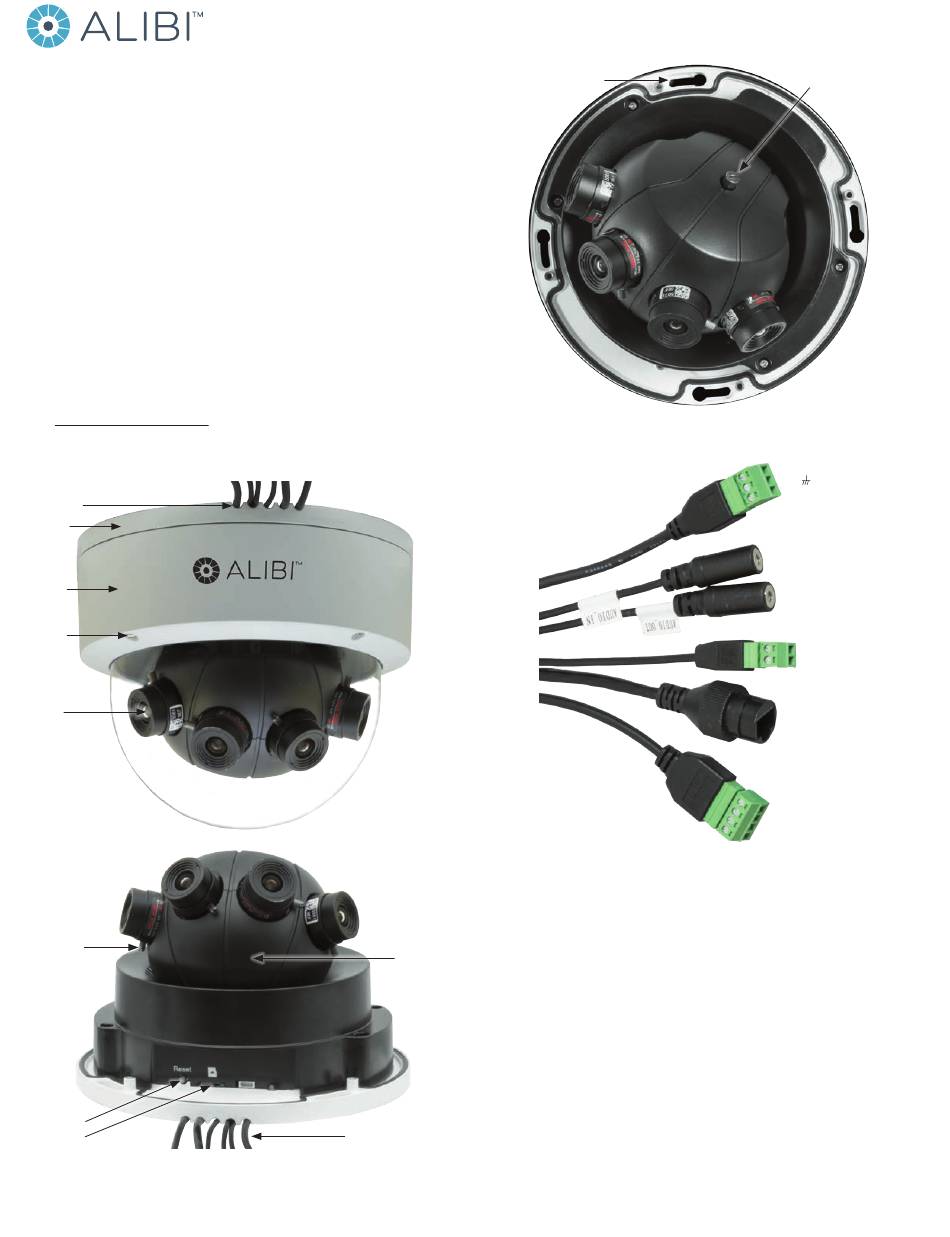

Cable channel
Mounting
base
Dome
Assembly
Dome
cover
screws (4)
Lens (4)
Focus
adjustment
Reset button
microSD
card slot
Cameras without the dome cover
www.Observint.com
1
What's in the box
This product includes the following items:
Gimbal
Drill template
•
mounted
camera
Security L-wrench
•
module
Mounting hardware
•
Weatherproof fitting for Ethernet cable
•
This Quick Installation Guide
•
Step 1.
1.
Determine the best fasteners for securing the camera to mounting surface. Make sure that the wall
or ceiling is strong enough to withstand four times the weight of the camera and any brackets used
with it. The mounting hardware provided is suitable for many surfaces.
Drop cables
Holes / slots
for mounting
screws (4)
Camera top view without dome assembly
Camera drop cable connectors
Install the camera on a surface
Tilt lock
screw
12 Vdc in
(+,
, -)
Audio In,
Audio Out
RS-485
network
terminations
(D+, D-)
RJ-45 LAN
connector
Alarm
terminations:
IN, G: Alarm Input,
1A, 1B: Alarm Output
ALI-NP1018VHP_CQ
