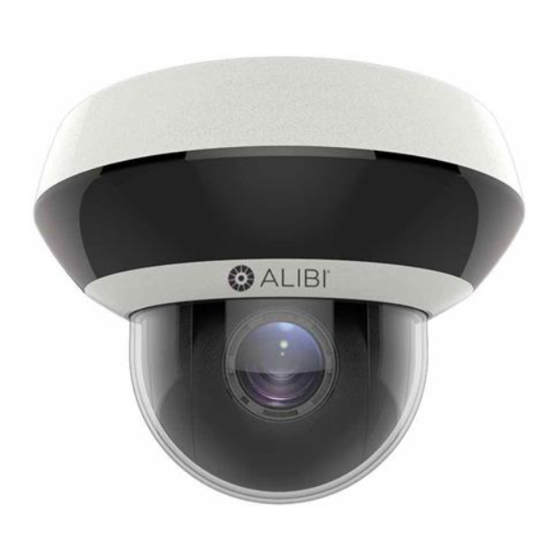

ALI-NS8024VR 4 MP 4× Zoom Mini PTZ
IP Camera Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NS8024VR 4
dome camera. This camera features:
4 MP 2560 × 1440 maximum resolution @ 25 fps
•
Starlight Technology with minimum illumination Color: 0.005 Lux @ (F1.6, AGC ON),
•
B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
4× optical zoom, 16× digital zoom
•
Horizontal Field of view 96.7° to 31.6° (wide-tele)
•
0° ~ 355° pan range, 0° ~ 90° tilt range
•
Up to 65 feet (20 m) IR range
•
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
•
Support H.265+ / H.265 video compression
•
IP66, IK10 vandalproof, IEC 61000-4-5 surge immunity from power switches, lightening, etc.
•
Compatible with the ALI-AB15 wall mount bracket
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Tools Utility Installation and User Manual
•
ALIBI™ Witness 2.0 r3 App for Android (or iOS) Quick Start Guide
•
ALIBI™ IP Camera Firmware Version 5.4 User Manual (or later) provided at:
•
AlibiSecurity.com/resources

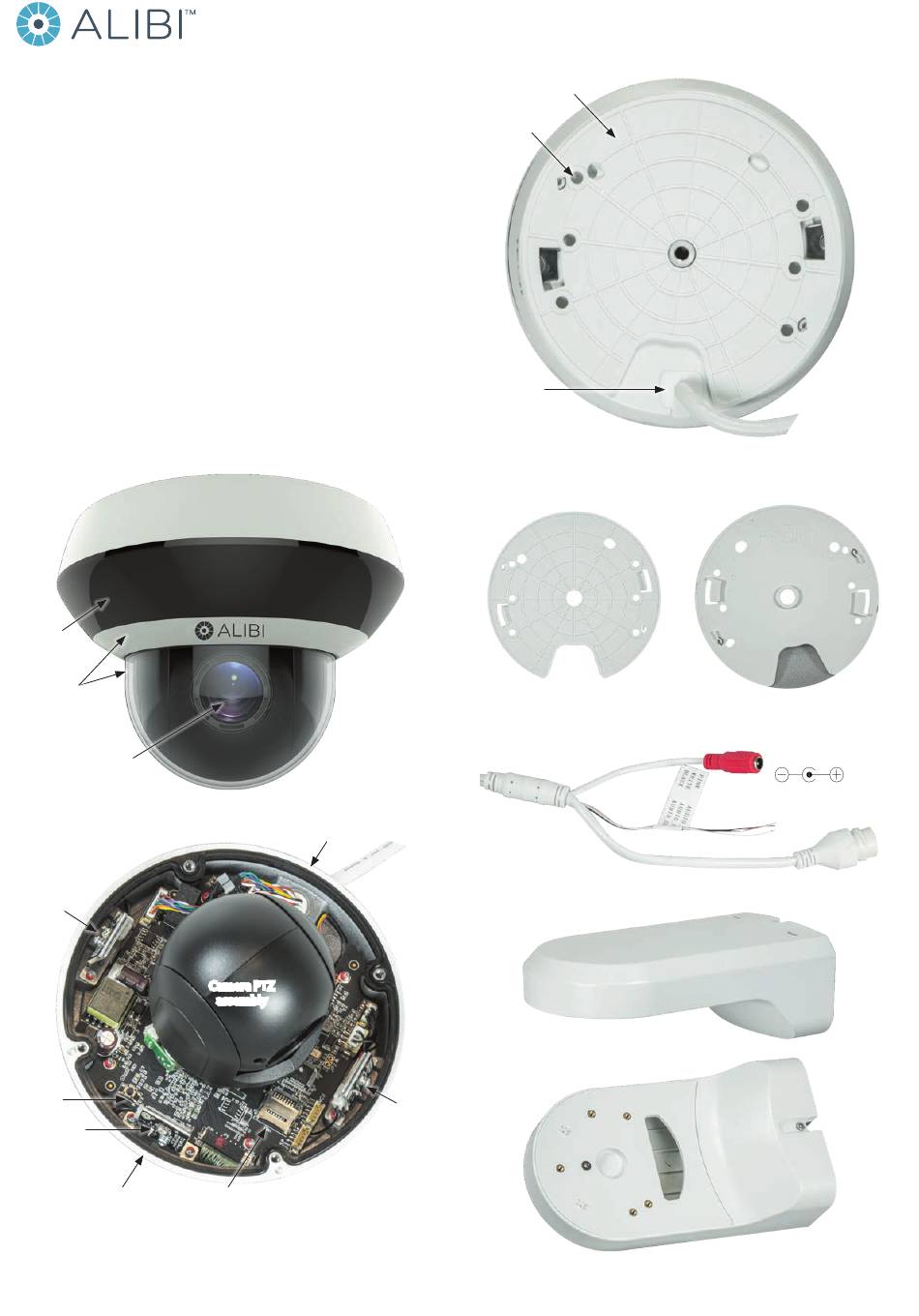

Trim
ring
Cover
and
bubble
assembly
PTZ camera
ALI-NS8024VR camera
IR LED
(1 of 3)
Reset*
button
IR LED
(1 of 3)
Front of camera
Camera top view with trim ring and cover removed
*RESET: To deactivate the camera and restore it to its default IP address, port number, configuration settings, etc., hold down
the RESET button for about 10 seconds when the camera is powering on or rebooting.
1
www.observint.com
Back of camera
Drop cable
Camera PTZ
assembly
microSD card slot
Mounting plate
Holes for
PTZ IP
mounting
X
screws (6)
Removable
plug for
side routing
Mounting plate surface side (left), camera side (right)
IR LED
(1 of 3)
Front of camera
Back of camera
Camera base with mounting plate
12 Vdc power input
Audio IN / OUT leads
Camera drop cables
ALI-AB15 wall mount bracket
Drop cable
Ethernet
(with PoE)
ALI-NS8024VR_CQ
190917
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALIBI ALI-NS8024VR
Summary of Contents for ALIBI ALI-NS8024VR
- Page 1 ALI-NS8024VR 4 MP 4× Zoom Mini PTZ Front of camera Mounting plate IP Camera Quick Installation Guide Holes for This document guides you through the basic steps to install and configure the ALI-NS8024VR 4 PTZ IP mounting screws (6) dome camera. This camera features: 4 MP 2560 ×...
-
Page 2: Step 1. Install The Camera
Reinstall the cover/bubble assembly. Your camera includes the following items: Reinstall the trim ring. Inspect the inside of the trim ring to see how it aligns with the cover, and then snap it into place. ALI-NS8024VR camera assembly • Network Setup Guide •... - Page 3 NOTE: If the camera LAN extension cable is attached to a Network Video Recorder (NVR), skip this step. The Alibi Config Tool is a PC-based network utility for discovery of Alibi compatible devices. It provides an easy way to activate devices, configure camera and recorder network configuration settings, and set device passwords.
-
Page 4: Modify Network Parameters
Refer to the documentation available for your NVR firmware for the procedure to activate the camera, if necessary. When an Alibi device is first installed, or reset to its factory configuration, it must be “Activated” before it can be used. In the Alibi Configuration Tool, “Inactive” devices have a Security status of Inactive, and an IPv4 address of 192.168.1.64. -
Page 5: Step 6. Login To The Camera
Step 6. Login to the camera NOTE: If the camera LAN extension cable is attached to a Network Video Recorder (NVR), skip this step. Microsoft® IE is used to access your camera remotely. IE must run as an Administrator to use all features available through a remote login to the camera. - Page 6 For cameras installed on a LAN In the PTZ Control panel, click each button labeled in the graphic above. Verify that the camera performs as expected. Refer to the Specifications section of this document for motion and zoom Log into the camera and then open the Live View window. ranges.
-
Page 7: Specifications
60 Hz: 1 / 1 s to 1/30,000 s IEEE 802.1x port-based network access control; IP address filtering Day & Night IR Cut Filter Client Alibi Central Management Software (ACMS) V3.2 or later, ACMS-XP Digital Zoom 16 × Web Browser Microsoft Internet Explorer 8 to 11... - Page 8 12 Vdc Wire Gauge and Transmission Distance Using the Waterproof Ethernet Fitting The following table shows the recommended maximum distance adopted for the different wire sizes Install the Waterproof Ethernet Fitting on the Ethernet cable end at the camera when moisture when the 12 Vdc voltage loss is less than 15%.
