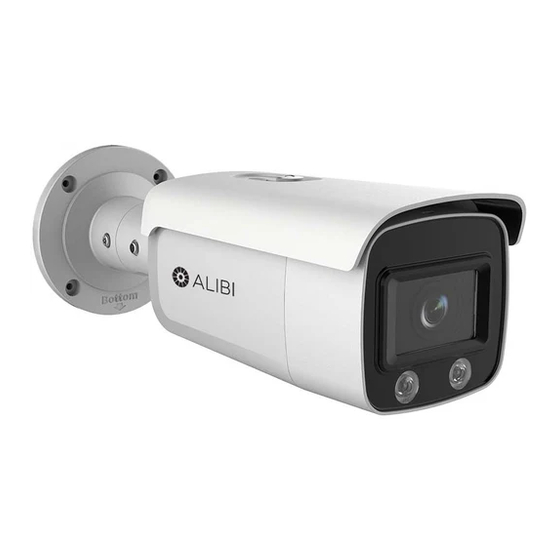

This document guides you through the basic steps to install and configure the ALI-NS4114L network
bullet camera. This camera features:
1/1.8" 2688 × 1520 pixel (4 MP) Progressive Scan CMOS @ 30 fps
•
3000°K soft white light LED with 100 ft range (see Step 10 in the procedure below)
•
4 mm lens with 94° FOV
•
120 dB Wide Dynamic Range
•
Built-in microSD/SDHC/SDXC slot, up to 128GB
•
H.265, H.265+, H.264+, H.264 video compression
•
IP66, IK10 vandal proof rated
•
Optional ALI-AJ12 Junction Box
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Witness 2.0 r3 App for Android or iOS Quick Start Guide
•
ALIBI™ IP Camera Firmware Version 5.4 User Manual (or later) provided at:
•
AlibiSecurity.com/resources

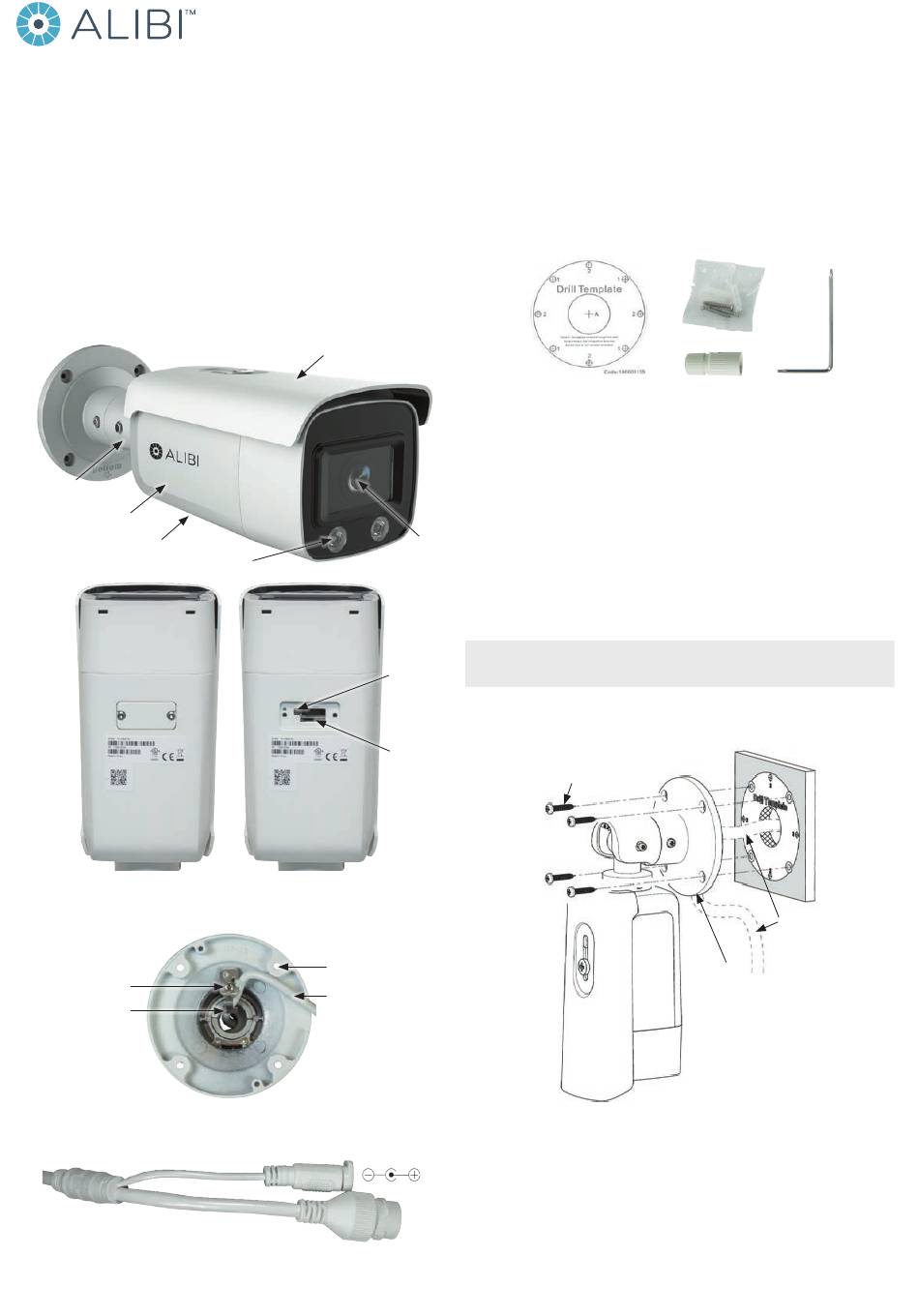

Articulated
mounting
bracket
Camera body
Maintenance panel
White light LEDs
* Reset: To restore the camera with its default configuration (including user name, password, IP
address, etc.) press and hold the Reset button for 10 s when the camera is power on or rebooting.
Maintenance panel
Ground
terminal
Tab for j-box
safety cable
Camera mounting base
Ethernet connector - PoE capable
Camera drop cables
1
www.observint.com
ALI-NS4114L 4 MP White Light IP Bullet Camera Quick Installation Guide
Adjustable sun shield
Reset*
Button
microSD
card slot
Mounting
screw holds (4)
Drop cable
12 Vdc Power connector with plug
What's in the box
Your camera includes the items shown below.
This document
•
Alilbi IP camera networking instructions
•
ALI-NS4114L camera
•
Security L-wrench
•
Drill template
•
Waterproof Ethernet fitting
•
Mounting hardware with wall inserts
•
Drill template
Step 1.
Install the camera
The camera includes hardware to install it directly to a mounting surface (wall or ceiling). To install the
camera:
1.
(Optional) Install a microSD card in the camera. See the Specifications section at the back of this
document for card type and capacity.
a.
Remove the cover on the underside of the camera (see the photo above).
Lens
b.
Slide a formatted microSD card into the card slot. It should slide in smoothly. Push the card
all the way into the slot, and then release it. The card should latch into place. (To remove
the card, push it all the way in to unlatch it, and then release it.)
c.
Reinstall the maintenance panel cover.
The microSD card may need to be initialized before it can be used to record data. Refer to the ALIBI™
IP Camera Firmware Version .. User Manual provided at AlibiSecurity.com/resources for
NOTE
instructions to initialize the card.
2.
Determine the best fasteners for securing the camera mounting base to mounting surface. The
mounting hardware provided may be suitable for some surfaces.
Mounting base
screws (4)
3.
Remove the junction box from the camera assembly by removing the four mounting base
captive screws.
4.
Using the camera mounting base as a template, mark the locations of the holes for the mounting
screws. Also mark the location of a hole for the camera drop cables if needed.
5.
Route extension cables from the power source and LAN switch (or LAN with PoE) to the
mounting location.
Mounting hardware
Security
L-wrench
Waterproof Ethernet fitting
Mounting surface
Optional cable routing
Cable channel
ALI-NS4114L_CQ
190801
