ALIBI ALI-NP1013VRH Quick Installation Manual

ALI-NP1013VRH 3.0 MP IP Dome
Camera Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NP1013VRH camera. The
camera features:
3.0 MP high resolution sensor
•
2.8 - 12 mm motorized vari-focal lens
•
HD real-time video up to 2048 x 1536 with tri-streaming and H.264 compression
•
Smart IR LED array with illumination up to 100 feet
•
3D-DNR noise reduction, 120dB Wide Dynamic Range (WDR)
•
Dual power capable - Power over Ethernet (PoE) or 12 Vdc
•
Weatherproof - IP66 rated and Vandalproof - IK10 rated
•
Internal microSD card storage up to 128GB (card not provided)
•
2-way Audio I/O, Alarm I/O
•
For more information about the software features of this camera, please refer to the ALILBI IP Camera V3
Software User Manual available from your retailer.

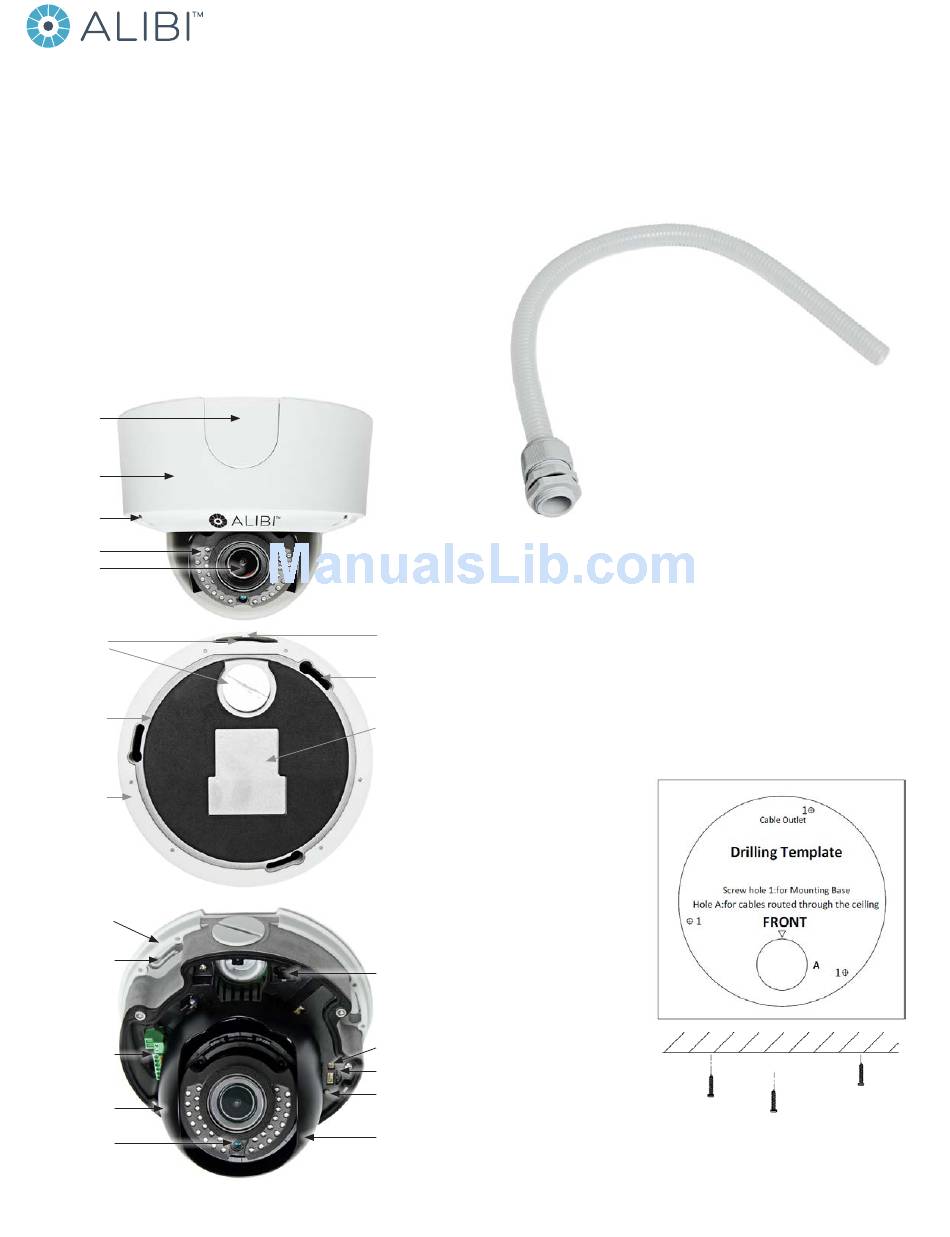

Knockout for
conduit
connection
Dome
assembly
Dome
assembly
captive
screws (3)
IR array
Lens
Conduit
port
Mounting
base
Lower
dome
assembly
Mounting
base
assembly
Holes for
mounting
screws (3)
24 Vac or 12 Vdc
(auto-sensing)
Power and
audio and alarm
terminations
Camera
gimbal
assembly
Light
sensors
www.observint.com
1
What's in the box
Your camera includes this document and the following items shown below:
Video test cable (adapts the camera CVBS port to BNC for local NTSC video out)
•
CD-ROM with manuals and ALIBI Power Tools utilities
•
Drilling template
•
Security hex wrench
•
Mounting hardware
•
Plastic flex tube (see below)
•
Step 1. Install the camera
The camera includes hardware to install it directly to most mounting surfaces, such as a ceiling. Camera
drop cables are routed through the plastic flex tub that can be attached to either the conduit port on the
side of the dome assembly or in the base. To install the camera:
1. Remove the dome assembly by loosening the three captive dome screws using the security
Knockout
L-wrench provided. The dome assembly can remained attached to the camera, if you prefer, with
for conduit
tether (not shown).
Holes for
mounting
2. Remove the black liner from the camera gimbal assembly.
screws (3)
3. Install a microSD card in the SD card slot, if needed.
Product label
4. To mount the camera, do one of the following:
To mount the camera directly onto a ceiling
1. Determine the best fasteners
for securing the camera
to mounting surface. The
mounting hardware provided
is suitable for most surfaces.
Depending on the mounting
surface material, wall inserts
may be required.
2. Using the Drilling Template
provided, mark the location of
RJ-45
the mounting screw holes. If
network
interface
the drop cable will be routed
port
through the mounting surface,
mark the location of the hole
CVBS
for the camera drop cables or
monitor
port
conduit.
microSD
3. Drill holes for the mounting
card slot
Reset
fasteners, and for the drop cable
button
where needed.
Black liner
4. Partially install three mounting screws in the holes.
\
ALI-NP1013VRH_CQ
10/13/15
