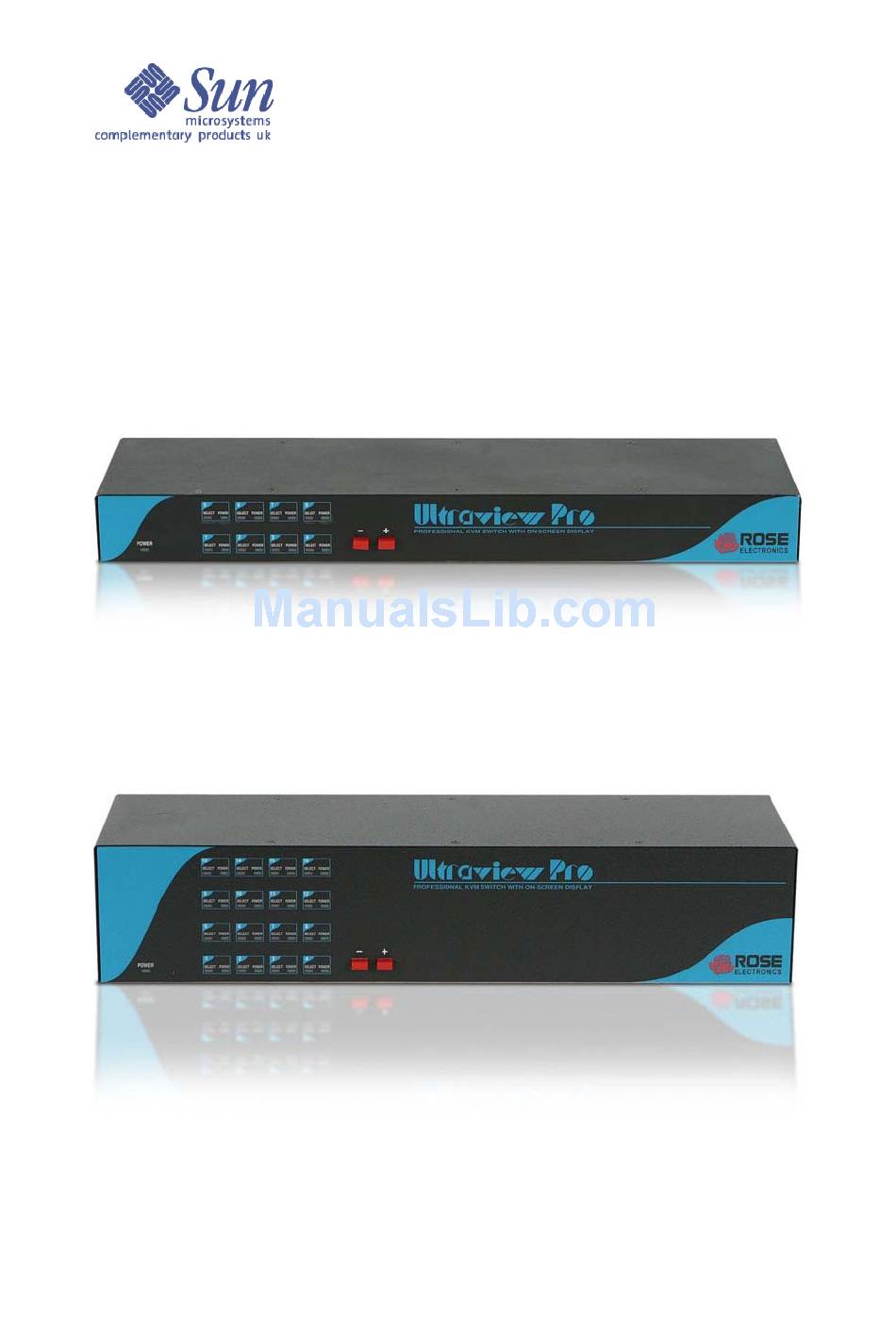

- Page 1 Sun Complementary Products Keyboard Video Mouse switch Quick Installation Guide UKT-KVM-1U08-Z UKT-KVM-2U16-Z Quick Installation Guide Rev. 1.1...
-
Page 2: Table Of Contents
Contents: Section Subject What is in the box? What else do I need? Installing the Keyboard Video Mouse switch into a rack Connecting the Console Monitor, Keyboard and Mouse Setting up server ports using the On Screen Display menus Connecting to the servers Using the Keyboard Video Mouse switch to access the servers Cascading switches Important notes when Cascading... -
Page 3: What Is In The Box
1 - What is in the box? The UKT-KVM-1U08-Z or UKT-KVM-2U16-Z Keyboard Video Mouse switches come complete with: Three 5ft Console cables, one of each of: KVM to VGA Monitor and USB Keyboard and Mouse KVM to DB13W3 Monitor and Sun Serial Keyboard and Mouse... -
Page 4: Installing The Keyboard Video Mouse Switch Into A Rack
3 - Installing the Keyboard Video Mouse switch into a rack The Keyboard Video Mouse (KVM) switch can be mounted in a rack using the included rack mount kit. The rack mount kit includes the following items: Two black anodized mounting brackets. Four 6-32 x 3/8”... -
Page 5: Connecting The Console Monitor, Keyboard And Mouse
4 - Connecting the Console Monitor, Keyboard and Mouse With the Keyboard Video Mouse switch and Console Monitor powered off, connect the Monitor, Keyboard and Mouse using the relevant Console cable (see below) to the “KVM-1” port on the rear of the KVM. Note: The other, unused, Console cables should be retained for use should the Console Monitor, Keyboard and Mouse be changed to a different type in the future. - Page 6 VGA Monitor and individual PS2 Keyboard and mouse Power on the Monitor Power on the KVM switch A boot sequence will be displayed confirming the KVM switch is ready for use. Port 1 on the KMV switch will have the ‘select’ LED illuminated. Note: Some CRT Monitors may not react quickly enough to display the boot sequence and the screen will appear blank.
-
Page 7: Setting Up Server Ports Using The On Screen Display Menus
5 - Setting up server ports using the On Screen Display menus Press and release the left Control (Ctrl) key then, within 2 seconds, the press and release the “F12” function key and the Main Configuration Menu (below) will be displayed. From this menu, you can configure the system, configure the connected com... - Page 8 Using the cursor control keys, select “Sun language” and press “Enter”. The language options (below) will then be displayed. US Unix French Danish German Italian Neth/Dutch Norwegian Portuguese Using the cursor control keys, select “UK” and press “Enter”. Press the escape key (Esc) to return to the Main Menu. From the Main Menu select “Configure Computer”...
- Page 9 The Configure computers menu allows you to assign unique names to each computer and change the keyboard and mouse type for each connected compu ter. As this point you will have needed to have decided which computers are to be connected to which ports on the back of the KVM. Note: The port numbering layout on the rear of the KVM is not intuitive.
- Page 10 Computer name To change the computer name, select the relevant port number to change and press “Enter” and an input box will be displayed. Enter the new computer name and press “Enter”. Keyboard To set a computer’s keyboard, use the cursor control keys to select the key board type currently set (PC2) and press “Enter”.
-
Page 11: Connecting To The Servers
6 - Connecting to the servers UKT-KVM-1U08-Z Rear Panel Connect each computer to the KVM using the appropriate server cable (see below). UKT-KVM-USB-x-Z = length: S=5foot, M=10foot, L=20foot ) UKT-KVM-SUN-x-Z = length: S=5foot, M=10foot, L=20foot ) Quick Installation Guide Rev. 1.1... - Page 12 UKT-KVM-PS2-x-Z Power on the KVM. Power on the servers and the “power” LED on the front panel of the KVM corresponding to each attached port should illuminate. The Keyboard Video Mouse switch is now ready for use. Quick Installation Guide = length: S=5foot, M=10foot, L=20foot ) Rev.
- Page 13 7 - Using the Keyboard Video Mouse switch There are three ways in which a server can be selected for access from the KVM: 1. By pressing the “+” or “-” button on the front panel to move to the desired port.
-
Page 14: Cascading Switches
8 – Cascading switches The number of servers administered from the one Monitor, Keyboard and Mouse Console can be expanded to a maximum of 256 by cascading KVMs. Each port of the first or Master KVM can support a Slave KVM through a cascade cable. -
Page 15: Important Notes When Cascading
9 - Important notes when Cascading Port numbering convention: The Slave ports are always counted first. That is, in a configuration where an 8 port Master has a 16 port Slave connected to both its CPU port 1 and port 2, the port numbering convention in the On Screen Display menus and for accessing the ports is as follows: Ports 1 to 16...
