ELECTRONICS
n
Most complete and powerful KVM matrix family
n
Full range of products
2xE
2 KVMs to 1000 computers - 1U/2U fixed chassis
4xE
4 KVMs to 1000 computers - 2U fixed chassis
4X
4 KVMs to 1000 computers - 3U expandable chassis
8X
8 KVMs to 1000 computers - 3U expandable chassis
16X
16 KVMs to 1000 computers - 4U expandable chassis
n
2xE/4xE - PC or multiplatform , 4X/8X/16X multiplatform only
n
U
nits connect with bus connection to make a seamless and
t
ruly scalable KVM matrix
n
A
dvanced on-screen display technology simplifies
c
onfiguration and operation
n
I
nstallation can be done without powering down servers
Rose Electronics product overview
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rose electronics EE2-1X16U/E
Summary of Contents for Rose electronics EE2-1X16U/E
- Page 1 2xE/4xE - PC or multiplatform , 4X/8X/16X multiplatform only nits connect with bus connection to make a seamless and ruly scalable KVM matrix dvanced on-screen display technology simplifies onfiguration and operation nstallation can be done without powering down servers Rose Electronics product overview...
- Page 2 Multi-lingual on-screen display - English, French, German, Spanish, Italian (April 2000) RS232 serial support to be added as free upgrade (April 2000) Switch any KVM to and computer from serial port Rose Electronics product overview...

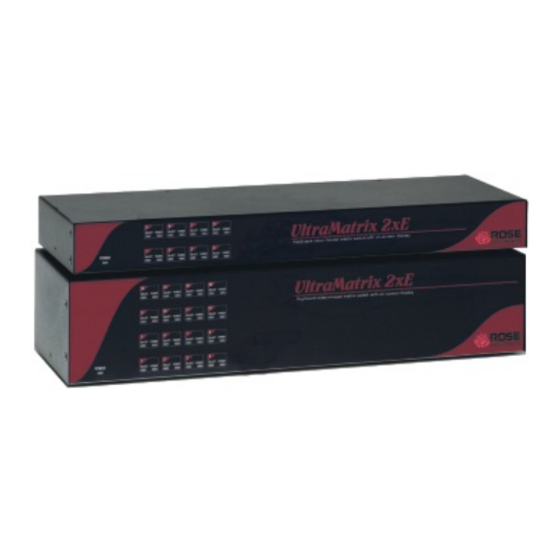

- Page 3 2 X 4 and 2 x 8 are in 1 U chassis 2 X 16 is in 2 U chassis Fully compatible with all other UltraMatrix family members Heavy duty steel chassis Rack mountable for 19”, 23”, and 24” racks Integrated auto-switching power supply Rose Electronics product overview...
- Page 4 ELECTRONICS 2 x 4 PC or multi-platform with optional expansion card 2 x 8 PC or multi-platform with optional expansion card 2 x 16 PC or multi-platform with optional expansion card Rose Electronics product overview...
- Page 5 4 x 8 and 4 x 16 are in 2U chassis Fully compatible with all other UltraMatrix family members Heavy duty steel chassis Rack mountable for 19”, 23”, and 24” racks Integrated auto-switching power supply Rose Electronics product overview...
- Page 6 ELECTRONICS 4 x 8 PC or multi-platform with optional expansion card 4 x 16 PC or multi-platform with optional expansion card Rose Electronics product overview...
- Page 7 Optional bus expansion makes a seamless and truly scalable KVM matrix switch 5-card chassis is 3U high Fully compatible with all other UltraMatrix family members Heavy duty steel chassis Rack mountable for 19”, 23”, and 24” racks Integrated auto-switching power supply Rose Electronics product overview...
- Page 8 CPU 4 CPU 3 CPU 2 CPU 1 OUT-2 IN-2 OUT-1 Rose Electronics product overview Fully populated 4x 16 UltraMatrix unit with expansion KVM Serial Plug-in card for 4 CPUs and 1 KVM Serial Plug-in card for 4 CPUs IN-1...
- Page 9 Optional bus expansion makes a seamless and truly scalable KVM matrix switch 5-card chassis is 3U high Fully compatible with all other UltraMatrix family members Heavy duty steel chassis Rack mountable for 19”, 23”, and 24” racks Integrated auto-switching power supply Rose Electronics product overview...
- Page 10 CPU 1 OUT-4 IN-4 OUT-3 IN-3 OUT-2 Rose Electronics product overview Fully populated 4x16 with 8x expansion needs second box to have all eight KVMs KVM Serial Plug-in card for 4 CPUs and 1 KVM Serial Plug-in card for 4 CPUs...
- Page 11 Optional bus expansion makes a seamless and truly scalable KVM matrix switch 6-card chassis is 4U high Fully compatible with all other UltraMatrix family members Heavy duty steel chassis Rack mountable for 19”, 23”, and 24” racks Integrated auto-switching power supply Rose Electronics product overview...
- Page 12 OUT-7 IN-7 OUT-6 OUT-4 IN-4 OUT-3 IN-3 OUT-2 Rose Electronics product overview Fully populated 4x16 with 8x expansion needs four boxes to have all 16 KVMs KVM Serial Plug-in card for 4 CPUs and 1 KVM Serial Plug-in card for 4 CPUs...
