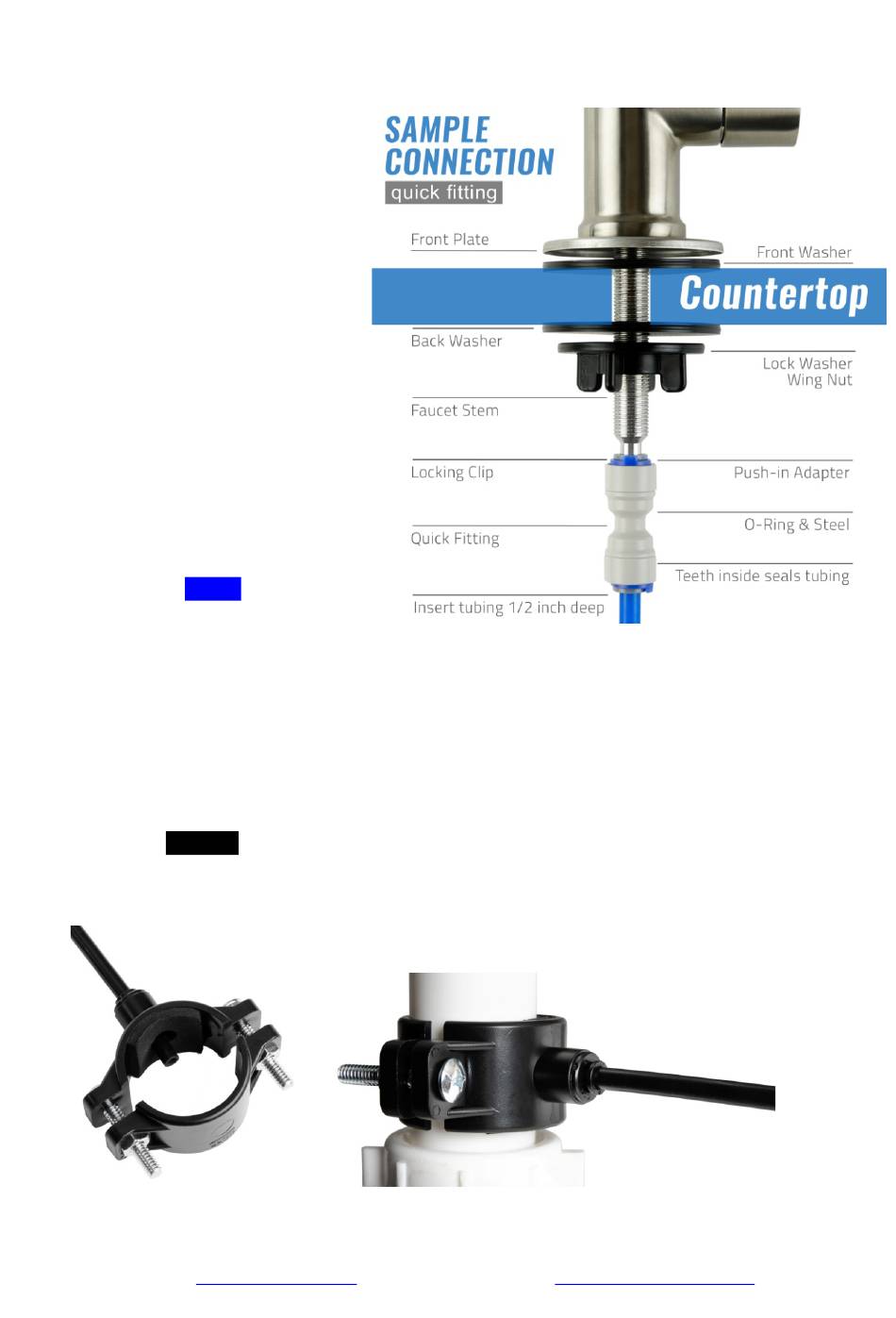

Step 2: Installing the RO Faucet

2.1 If your kitchen sink does not
have an existing ½" faucet
hole, you will have to drill one.
(Refer to How to drill a Hole
on Sink or Counter-top). Wipe
clean and dry the area.
2.2 Slip the front plate on the
faucet stem, followed by the
rubber washer.
faucet stem into the hole on
the countertop. Under the sink,
slip on the back rubber washer,
and tighten the nut with the
plastic wing.
2.3 Slide the quick connecting up
the push-in adapter on the
base so that it seats securely
into the faucet stem, then lock
it in place by sliding the blue
clip under the collet.
2.5 Insert the BLUE
1/2 inch into the push-in fitting,
and again, secure it with the
blue clip.

Step 3: Installing the Drain Saddle

3.1 Choose a spot on the drain pipe that is convenient for installing the drain saddle and tubing.
A horizontal pipe is recommended to minimize the dripping sound.
3.2 Drill a 1 /4" hole in the drain pipe, and paste the black sticky pad around the hole.
BLACK
3.3 Cut the
in the drain pipe, install the back plate, and tighten the two screws with hex nuts while the
tubing remains in the hole.
3.4 Insert Lock Clip. Pull the tubing lightly to make sure it is secure.
Page 8www.123filter.com
Insert the
tubing about
tubing end to make a 45 degree angle. Insert the tubing into the 1/4" hole
