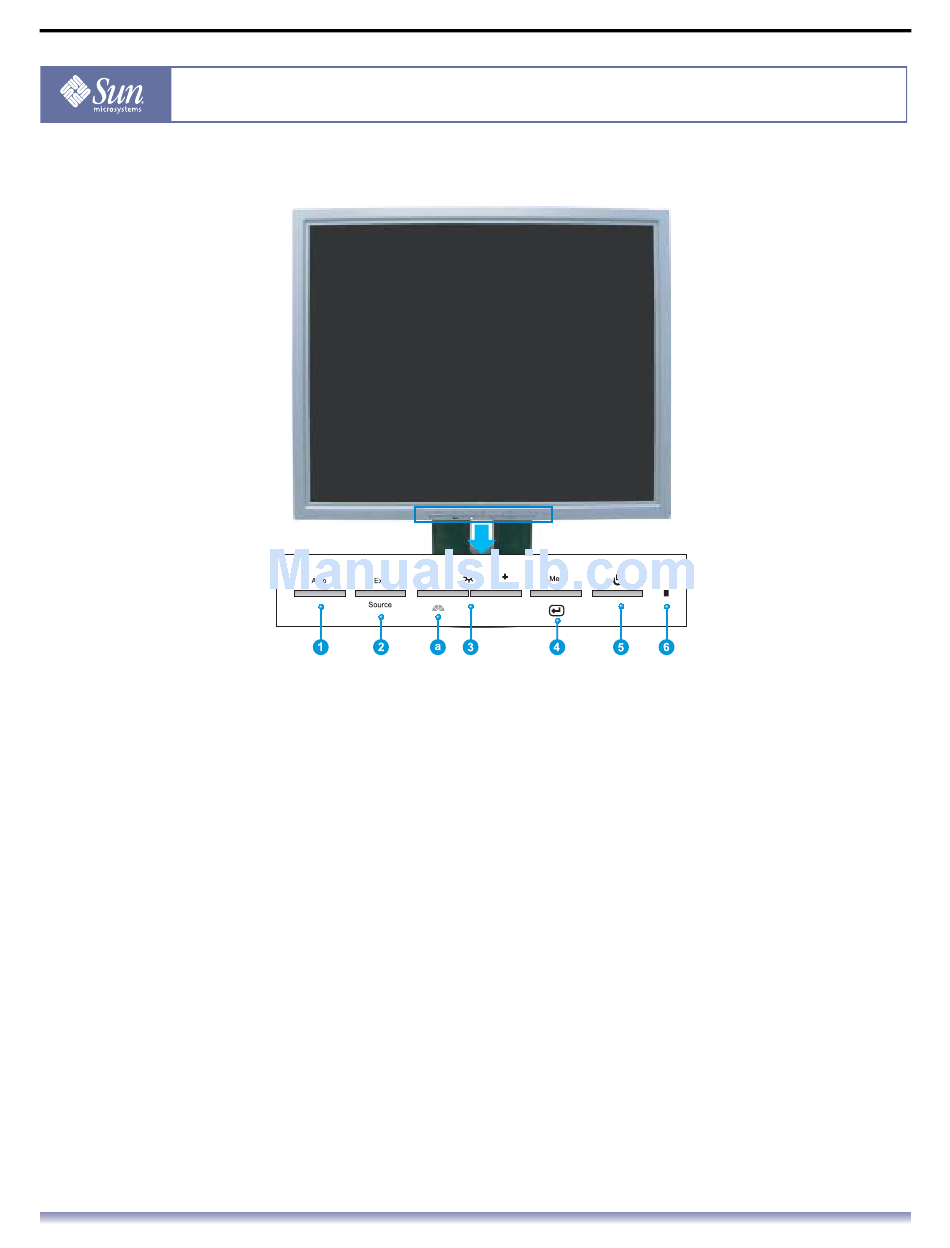

Front
1. Auto button
2. Exit / Source button
3. Adjust buttons
4. Menu button
5. Power button
6. Power indicator
a. Brightness Preset button Brightness Preset is a new feature providing an optimum viewing environment
Note: See PowerSaver
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods.
Copyright(c) 2004, Sun Microsystems, Inc. All rights reserved.
Use this button for auto adjustment direct access.
Use this button to Exit the active menu or the OSD.
Push the 'Source' button to select the video signal input while the OSD is off.
(When the Source button is pressed to change the input mode, a message
appears in the center of the screen displaying the current mode -- analog or
digital input signal.)
Note: If you select the Digital mode, you must connect your monitor to the
graphic card's digital port using the DVI cable.
These buttons allow you to highlight and adjust items in the menu.
Use this button to open the OSD and activate a highlighted menu item.
Use this button to turn the monitor on and off.
This light glows green during normal operation, and blinks green once as the
monitor saves your adjustments.
depending on the contents of the image you are watching. Currently three
different modes are available: Text, Internet, and Entertain. Each mode has its
own pre-configured brightness value. You can easily select one of three
settings by simply pressing Brightness Preset control button.
described in the manual for further information regarding power saving functions. For
