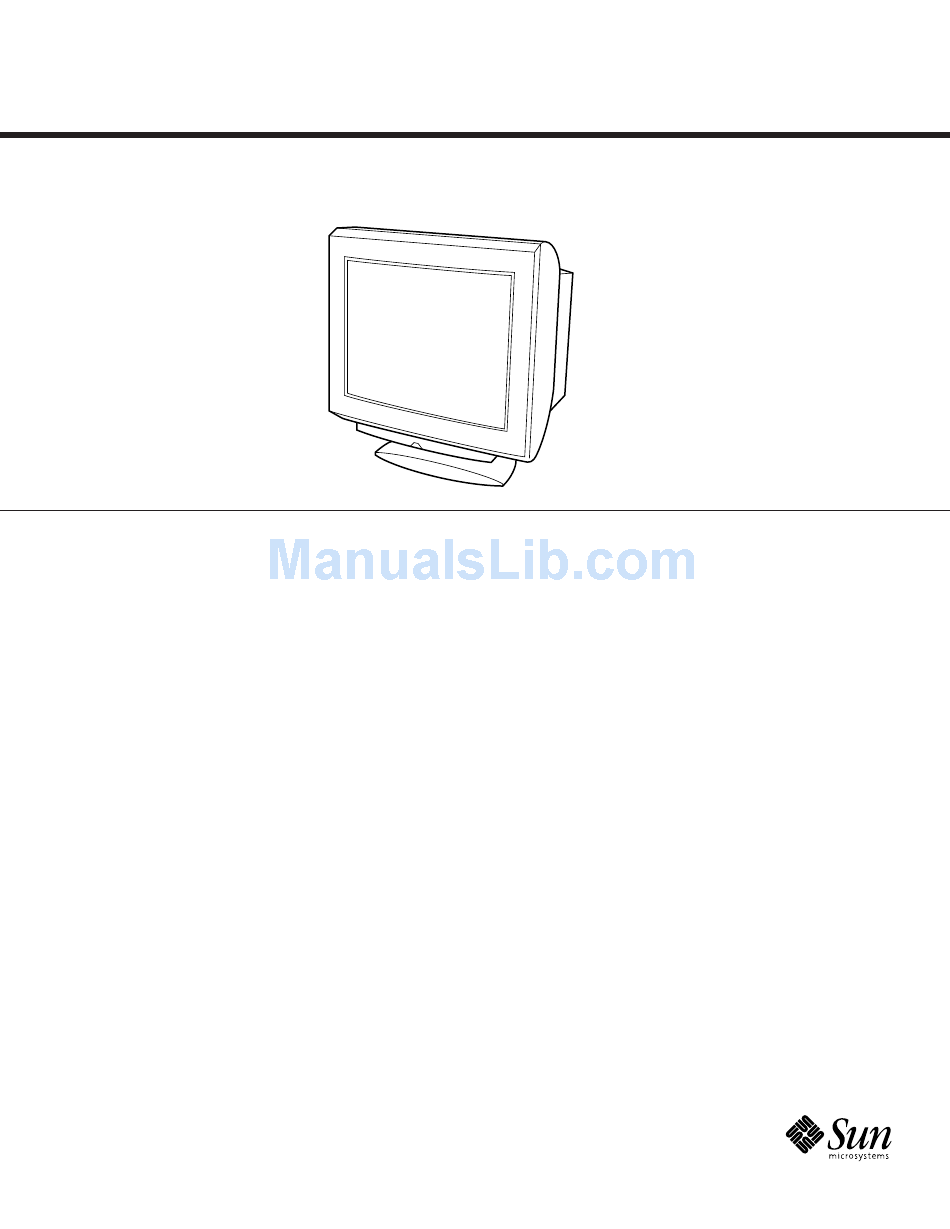

SERVICE MANUAL
SPECIFICATIONS
Picture tube
0.25 – 0.27 mm aperture grille pitch
21 inches measured diagonally
90-degree deflection
Approx. 403.8 × 302.2 mm (w/h)
Viewable image size
(16 × 12 inches)
19.8" viewing image measured
diagonally
Resolution
Horizontal: Max. 1600 dots
Vertical: Max. 1200 lines
Approx. 388 × 291 mm (w/h)
Standard image area
3
(15
or
Approx. 364 × 291 mm (w/h)
3
(14
Deflection frequency
Horizontal: 30 to 96 kHz
Vertical: 48 to 160 Hz
AC input voltage/current
100 to 240 V, 50 – 60 Hz, 2.0 – 1.0 A
Power consumption
Max. 160 W
500.3 × 502.5 × 476.5 mm (w/h/d)
Dimensions
3
(19
Mass
Approx. 31 kg (68 lb 5 oz)
Design and specifications are subject to change without
notice.
COLOR GRAPHIC DISPLAY
GDM-5010PT
N. Hemisphere Model
S. Hemisphere Model
Korea Model
Japan Model
× 11
1
/
/
inches)
8
2
× 11
1
/
/
inches)
8
2
× 19
× 18
7
7
/
/
/
inches)
4
8
8
Chassis No. SCC-L04F-A
N3
CHASSIS
Advertisement
Table of Contents
Related Manuals for Sun Microsystems GDM-5010PT
Summary of Contents for Sun Microsystems GDM-5010PT
- Page 1 GDM-5010PT SERVICE MANUAL N. Hemisphere Model S. Hemisphere Model Korea Model Japan Model Chassis No. SCC-L04F-A CHASSIS SPECIFICATIONS Picture tube 0.25 – 0.27 mm aperture grille pitch 21 inches measured diagonally 90-degree deflection Approx. 403.8 × 302.2 mm (w/h) Viewable image size (16 ×...
- Page 2 GDM-5010PT SAFETY CHECK-OUT (US Model only) After correcting the original service problem, perform the fol- LEAKAGE TEST lowing safety checks before releasing the set to the customer: The AC leakage from any exposed metal part to earth ground 1. Check the area of your repair for unsoldered or poorly-sol- and from all exposed metal parts to any exposed metal part dered connections.
-
Page 3: Power Saving Function
GDM-5010PT POWER SAVING FUNCTION This monitor meets the power-saving guidelines set by Note VESA and Energy Star, as well as the more stringent If no video signal is input to the monitor, the “NO INPUT SIGNAL” message (page 18) appears. After the delay time has NUTEK . -
Page 4: Timing Specification
GDM-5010PT TIMING SPECIFICATION MODE AT PRODUCTION MODE 1 MODE 2 RESOLUTION 1280 X 1024 1152 X 900 CLOCK 135.000 MHZ 108.000 MHZ -- HORIZONTAL -- H-FREQ 81.130 kHz 71.809 kHz usec usec H. TOTAL 12.326 13.926 H. BLK 2.844 3.259 H. -
Page 5: Table Of Contents
GDM-5010PT TABLE OF CONTENTS Section Title Page 1. GENERAL ..............1-1 2. DISASSEMBLY 2-1. Rear Bucket Assy Removal ....... 2-1 2-2. D Board Removal ..........2-1 2-3. G Board Removal ..........2-2 2-4. A Board Removal ..........2-2 2-5. L Board Removal ..........2-3 2-6. -
Page 6: General
SECTION 1 The operating instructions mentioned here are partial abstracts from the Operating Instruction Manual. The page numbers of GENERAL the Operating Instruction Manual remain as in the manual. Getting Started Getting Started Getting Started !º Video input 2 connector (HD15) Identifying Parts and Controls Setup Inputs RGB video signals (0.700 Vp-p, positive) and... - Page 7 Customizing Your Monitor Getting Started Getting Started Getting Started Press the ¨./> and >?// buttons to select “ Before adjusting Automatically Adjusting the Size Selecting the Input Signal OPTION,” and press the button again. • Connect the monitor and the computer, and turn them on. The OPTION OSD appears.
- Page 8 Getting Started Customizing Your Monitor Customizing Your Monitor Introducing the On-screen Using the CENTER On-screen Using the SIZE On-screen Display Using the GEOM (Geometry) On- Display System Display screen Display The SIZE settings allow you to adjust the size of the picture. Once the setting is adjusted, it will be stored in memory for Most adjustments are made using the MENU OSD.
- Page 9 Getting Started Customizing Your Monitor Customizing Your Monitor Press the >?// buttons to adjust the settings. Using the ZOOM On-screen Using the COLOR On-screen Display Using the SCREEN On-screen Display Display You can change the monitor’s color temperature. For example, you can adjust or change the colors of a picture on The ZOOM settings allow you to enlarge or reduce the You can adjust convergence settings to eliminate red or blue the screen to match the actual colors of the printed picture.
- Page 10 Getting Started Customizing Your Monitor Customizing Your Monitor Select Press Changing the on-screen display position Using the OPTION On-screen select one of the four corners that / . . . to shift red shadows up and blue Display shadows down You can change the OSD position (for example, when you LANDING needs color correction due to...
- Page 11 Getting Started Customizing Your Monitor Customizing Your Monitor Setting the power saving delay time Locking the controls Using the LANG (Language) On- Resetting the Adjustments screen Display You can set the delay time before the monitor enters the The control lock function disables all of the buttons on the Resetting an adjustment item power saving mode.
- Page 12 Technical Features Getting Started Additional Information Additional Information Technical Features 1 The input signal condition You can set the delay time before the monitor enters the Power Saving Function Warning Messages power saving mode using the OSD. Set the time according “OUT OF SCAN RANGE”...
- Page 13 Getting Started Additional Information Additional Information Symptom Check these items Self-diagnosis Function Specifications You cannot adjust the monitor • If the control lock function is set to on, set it to off using the OPTION OSD (page 15). with the buttons on the front This monitor is equipped with a self-diagnosis function.
-
Page 14: Disassembly
GDM-5010PT SECTION 2 DISASSEMBLY 2-1. REAR BUCKET ASSY REMOVAL Four screws (+ BVTP 4 x 16) Screw cover Four screws (+ BVTT 4 x 8) Two claws Top cover Screw cover Rear bucket assy Four screws (+ BVTT 4 x 8) -
Page 15: G Board Removal
GDM-5010PT 2-3. G BOARD REMOVAL Two screws (+BVTP 3 x 10) Screw (+ BVTT 4 x 8) G shield Two screws (+ BVTT 4 x 8) G board Three hooks Open the G block in the direction Two printed circuit board holders of the arrow . -
Page 16: L Board Removal
GDM-5010PT 2-5. L BOARD REMOVAL CN5001 CN5004 CN5002 CN5003 L board Four printed circuit board holders 2-6. I/O TERMINAL BOARD ASSY REMOVAL CN401 CN511 Two screws (+ BVTT 3 x 8) CN3908 I/O terminal board assy... -
Page 17: Service Position
GDM-5010PT 2-7. SERVICE POSITION CAUTION : SHORT D,G boards Rear shield If the claw is hooked, opening and closing the board is impossible. Do not try to do it by force. D board (Refer to 2-2.) A board (Refer to 2-4.) -
Page 18: Picture Tube Removal
GDM-5010PT 2-9. PICTURE TUBE REMOVAL Open the D block (Refer to 2-2.) Four screws (+ BVTT 4 x 8) Three connectors GND (DY) 6P (DY) A board 10P (DY) Anode cap Open the G block (Refer to 2-3.) Neck assy... -
Page 19: Safety Related Adjustment
GDM-5010PT SECTION 3 SAFETY RELATED ADJUSTMENT When replacing or repairing the shown below table, the a) HV Regulator Circuit Check following operational checks must be performed as a 1) Confirm that the voltage of the pin 2 of CN901 on D safety precaution against X-rays emissions from the unit. -
Page 20: Adjustments
GDM-5010PT SECTION 4 ADJUSTMENTS Note: Hand degauss must be used on stand-by or power-off condition. This model has an automatic earth magnetism correction function by using an earth magnetism sensor and a LCC coil. When using a hand degauss while monitor (LCC coil) is being operated, it sometimes gets magnetized, and the system may not work properly as a result. - Page 21 GDM-5010PT Connect the communication cable of the computer to the connector located on the D board on the monitor. Run the service software and then follow the instruction. 1-690-391-21 A-1500-819-A 3-702-691-01 Interface Unit Connector Attachment IBM AT Computer To BUS CONNECTOR...
-
Page 22: Diagrams
SECTION 5 DIAGRAMS 5-1. BLOCK DIAGRAMS S807 CN520 CN504 CN512 (POWER SW) (U-COM,DEFLECTION) LCC_RB POWER LCC_RT CN891 S891 H CONV HTR_SW LCC_LB IC012 AC L IN POWER V CONV STBY 8V LCC_LT AC L OUT LCC_LB CN511 V CLK C.SYNC_1 V.SYNC_1 C.SYNC_2 PS504... - Page 23 TO FBT FV1 FV2 HV IC401 IC402 IC403 CONNECTOR PANEL RGB SWITCH RGB PRE-AMP RGB OUT V901 PICTURE TUBE CN402 Q101 R IN 2 R_IN2 R_OUT R_IN R_OUT R_IN R_OUT G IN 2 G_IN2 G_IN G_OUT BUFFER Q201 B IN 2 B_IN2 G_OUT G_IN...
-
Page 24: Circuit Boards Location
5-3. CIRCUIT BOARDS LOCATION Note: The components identified by shading and mark ¡ are critical for safety. Replace only with part 5-2. FRAME SCHEMATIC DIAGRAM number specified. Note: Les composants identifiés per un tramé et une RED1 R IN 1 R.GND1 ¡... - Page 25 — D BOARD (Conductor Side) — • D BOARD SEMICONDUCTOR LOCATION — D BOARD (Component Side) — µ-COM, D012 E–2 DEFLECTION D013 E–2 Conductor Component Side Side D014 E–2 D015 E–2 IC001 E–2 D016 E–2 IC002 E–3 D019 E–1 IC003 D–2 D–3 D020...
- Page 26 (1) Schematic Diagram of D Board ROTATION+ TO L BOARD TO L BOARD • D BOARD WAVEFORMS • D BOARD VOLTAGE LIST ROTATION- CN5002 CN5001 Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] CN520 CN512 CN509 IC002 11.2 :S-MICRO :S-MICRO :S-MICRO...
-
Page 27: Schematic Diagram Of D Board
(2) Schematic Diagrams of G, GA, H1, H2, J and L Boards C811 STBY +5V TO D BOARD CN501 Q801 CN801 2SC2412K Q802 (POWER SENSOR) LED DRIVE :S-MICRO L 2SC2412K R814 +15V LED DRIVE :CHIP • GA BOARD LED0 STBY +5V Q7504 LED1 2SA1037AK... - Page 28 (ga) (h1) (h2) V.STAT, H.STAT, LLC, POWER SUPPLY POWER SENSOR USER CONTROL USER CONTROL GEO MAGNETIC SENSOR — L BOARD (Conductor Side) — — L BOARD (Component Side) — — G BOARD — — H1 BOARD (Conductor Side) — — H1 BOARD (Component Side) — H1 BOARD Terminal name of semiconductors in silk screen printed circuit (...
-
Page 29: Schematic Diagram Of A Board
(3) Schematic Diagram of A Board C458 IC401 IC402 IC403 C412 +12V FA4111 C101 M52755FP RGB SWITCH M52722P RGB PRE-AMP 0.01 C312 BLOCK 0.01 B:CHIP B:CHIP RGB OUT STBY+5V +12V C102 C402 R475 C305 47 25V R339 R314 B:CHIP R122 0.01 C322 :CHIP... - Page 30 VIDEO AMP RGB OUT • A BOARD SEMICONDUCTOR LOCATION — A BOARD (Conductor Side) — — A BOARD (Component Side) — Conductor Component Side Side IC401 A–1 IC402 B–3 B–1 IC403 B–3 B–1 IC404 A–2 IC406 A–1 A–3 IC408 A–1 A–3 IC409 C–1...
-
Page 31: Semiconductors
5-5. SEMICONDUCTORS 5-29... - Page 32 5-30...
-
Page 33: Exploded Views
GDM-5010PT SECTION 6 EXPLODED VIEWS • Items with no part number and no • Items marked " * " are not stocked since The components identified by shading description are not stocked because they they are seldom required for routine ¡... -
Page 34: Picture Tube
GDM-5010PT 6-2. PICTURE TUBE The components identified by shading Les composants identifiés per un tramé ¡ ¡ 7-685-663-71 +BVTP 4X16 and mark are critical for safety. et une marque sont critiques pour la Replace only with part number specified. sécurité. Ne les remplacer que par une ¢... -
Page 35: Packing Materials
GDM-5010PT 6-3. PACKING MATERIALS REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK * 4-063-141-01 CUSHION (UPPER) (ASSY) 4-396-077-01 JOINT * 4-063-140-01 INDIVIDUAL CARTON * 4-061-815-01 TRAY [except Japan model] * 3-862-094-12 MANUAL, INSTRUCTION [except K model] * 4-063-622-01 INDIVIDUAL CARTON [Japan model]... -
Page 36: Electrical Parts List
GDM-5010PT SECTION 7 The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. ELECTRICAL PARTS LIST sécurité. Ne les remplacer que par une Replace only with part number specified. - Page 37 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ and mark are critical for safety. et une marque sont critiques pour la Replace only with part number specified. sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
- Page 38 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. sécurité. Ne les remplacer que par une Replace only with part number specified.
- Page 39 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ and mark are critical for safety. et une marque sont critiques pour la Replace only with part number specified. sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
- Page 40 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. A(ga)G sécurité. Ne les remplacer que par une Replace only with part number specified.
- Page 41 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ and mark are critical for safety. et une marque sont critiques pour la Replace only with part number specified. sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
- Page 42 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. sécurité. Ne les remplacer que par une Replace only with part number specified.
- Page 43 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ and mark are critical for safety. et une marque sont critiques pour la Replace only with part number specified. sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
- Page 44 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. sécurité. Ne les remplacer que par une Replace only with part number specified.
- Page 45 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ and mark are critical for safety. et une marque sont critiques pour la Replace only with part number specified. sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
- Page 46 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. sécurité. Ne les remplacer que par une Replace only with part number specified.
- Page 47 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ and mark are critical for safety. et une marque sont critiques pour la Replace only with part number specified. sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
- Page 48 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. sécurité. Ne les remplacer que par une Replace only with part number specified.
- Page 49 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ and mark are critical for safety. et une marque sont critiques pour la D(h1) Replace only with part number specified. sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
- Page 50 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. (h1)(h2)JL sécurité. Ne les remplacer que par une Replace only with part number specified.
- Page 51 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ and mark are critical for safety. et une marque sont critiques pour la Replace only with part number specified. sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
- Page 52 GDM-5010PT The components identified by shading Les composants identifiés per un tramé ¡ ¡ et une marque sont critiques pour la and mark are critical for safety. sécurité. Ne les remplacer que par une Replace only with part number specified.
