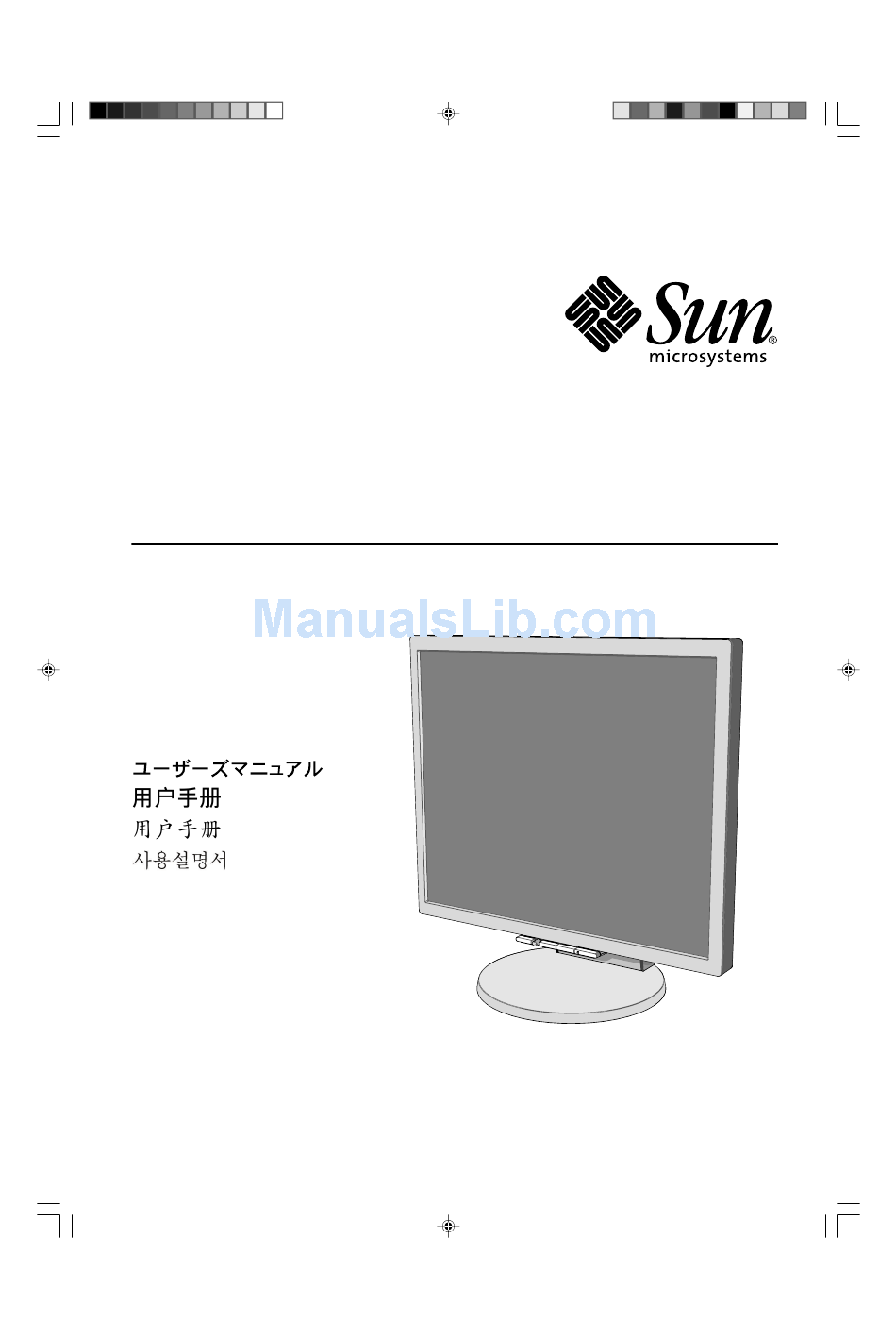

- Page 1 19-INCH FLAT PANEL LCD MONITOR Gen2 X7198A Owner’s Guide Bedienungsanleitung Manual del usuario Manuel de Utilisateur Manuale Utente Bruksanvisning 15503961-cover 3/1/2005, 6:01 PM...
-
Page 2: Table Of Contents
Index Warning, Caution ......................... English-1 Unpacking the Flat Panel LCD Monitor ..................English-2 Contents ............................English-3 Front Panel Overview ........................English-4 Back Panel Overview ........................English-5 Quick Start ........................... English-6 Controls ............................English-10 Safty Instractions ........................English-12 Specifications ..........................English-14 Features ............................. -
Page 3: Fcc Information
If a power cord is not supplied with this equipment please contact your supplier. When operating the X7198A with a 220-240V AC power source in Australia, use the power cord provided with the monitor. If a power cord is not supplied with this equipment please contact your supplier. -
Page 4: Unpacking The Flat Panel Lcd Monitor
Unpacking the Flat Panel LCD Monitor Carefully unpack the flat panel LCD monitor from the packing box. Your flat panel LCD monitor configuration might not contain all the components shown. FIGURE 1-1 Unpacking the Flat Panel LCD Monitor English-2 15503961-content 3/1/2005, 1:20 PM... -
Page 5: Contents
Contents Your new X7198A Flat Panel LCD monitor box* should contain the following: • X7198A Flat Panel LCD monitor with tilt/swivel/height adjust stand • Video Signal Cable (HD15 to HD15) • Video Signal Cable (DVI-D to DVI-D) • Setup •... -
Page 6: Front Panel Overview
Front Panel Overview The following numbered list corresponds to the number captions in FIGURE 1-2. FIGURE 1-2 Front Panel Overview 1. Power Switch 2. Power-Indicator LED 3. RESET button 4. SELECT/1 2 button 5. CONTOL button - 4-position Joy Stick* 6. -
Page 7: Back Panel Overview
Back Panel Overview The following numbered list corresponds to the number captions in FIGURE 1-3. FIGURE 1-3 Back Panel Overview 1. HD15(D-SUB) connector 2. DVI-D connector 3. AC Input connector 4. Master Power Switch English-5 15503961-content 3/1/2005, 1:20 PM... -
Page 8: Quick Start
2. The Master Power Switch (Figure B.1) must be turned on for the monitor to operate. 3. To attach the X7198A Flat Panel LCD monitor to your system, connect the DVI-D or HD15 cable between the computer and the monitor. (DVI-D is always preferred to assure optimal video quality.) NOTE: Some Macintosh systems do not require a Macintosh cable adapter. -
Page 9: Controls
NOTE: The Master Power Switch on the back side of the monitor must be turned on (Figure B.1). Turn on the monitor with the front power button and the computer. NOTE: The Master Power Switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. -
Page 10: Raise And Lower Monitor Screen
Raise and Lower Monitor Screen The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1). NOTE: Handle with care when raising or lowering the monitor screen. Figure RL.1 Tilt and Swivel Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).
