- Page 1 SR209 Plus Series Server Chassis User Manual November 2019 Version 2.1 A document provides an overview of product features, functions, architecture, and support specifications...
- Page 2 No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document. Chenbro disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade.
-
Page 3: Table Of Contents
SR209 Plus Series Table of Contents List of Figures ..............................4 List of Tables ..............................5 Product Overview .......................... 6 1-1 Front Panel ..........................7 1-2 Back Panel ..........................8 1-3 Security Features ........................9 1-4 Front Control Panel ....................... 10 1-5 Chassis Dimensions ....................... -
Page 4: List Of Figures
SR209 Plus Series List of Figures Figure 1 Front panel (enclosed) ........................ 7 Figure 2 Front panel (open) ........................7 Figure 3 Back panel with redundant PSU ....................8 Figure 4 Key lock and Kensington slot location ..................9 Figure 5 Intrusion switch location ...................... -
Page 5: List Of Tables
SR209 Plus Series List of Tables Table 1 Chenbro SR209 Plus specifications ....................6 Table 2 Front control panel ........................10 Table 3 System environmental specifications summary ................13 Table 4 System packing information ....................... 14 Table 5 Product weight information ....................... 14 Table 6 Drive power LED/activity LED behavior .................. -
Page 6: Product Overview

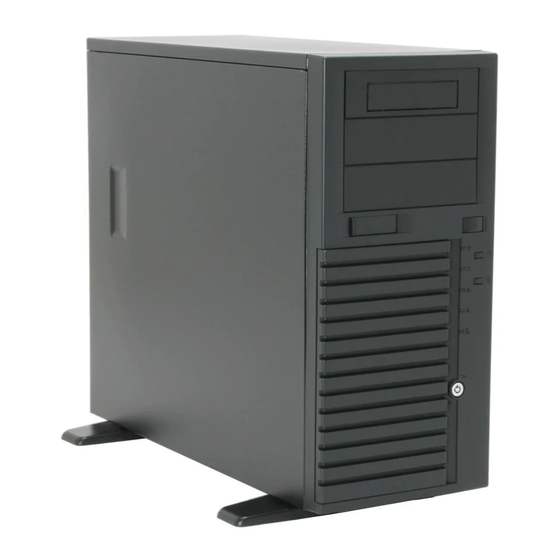

SR209 Plus Series 1. Product Overview The SR209 chassis has been modified to support both tool-less 3.5” HDD carrier and PCIe 3.0 slot, and transformed to feature- advanced SR209 Plus. Beneath the chassis, an information sticker reads revision and manufacturing code, necessary for technical support. -
Page 7: Front Panel
SR209 Plus Series 1-1 Front Panel Figure 1 Front panel (enclosed) A. 5.25” Storage Drive Bay C. USB Port Blank B. Front Control Panel Figure 2 Front panel (open) A. Bezel Door C. Front Control Panel B. 3.5” Storage Drive Bay D. -
Page 8: Back Panel
SR209 Plus Series 1-2 Back Panel Figure 3 Back panel with redundant PSU 1+1 Redundant PSU C. Rear Fan Rear I/O D. Expansion Slot Opening │... -
Page 9: Security Features
SR209 Plus Series 1-3 Security Features Figure 4 Key lock and Kensington slot location Figure 5 Intrusion switch location A. Key Lock C. Kensington Slot B. Side Cover Lock D. Intrusion Switch │... -
Page 10: Front Control Panel
SR209 Plus Series 1-4 Front Control Panel Figure 6 Front control panel Figure 7 Front control panel Table 2 Front control panel Label ICON Indicator, button or connector Power Button LAN1, LAN2 Activity LED Power LED HDD Activity LED Fan Alarm LED... -
Page 11: Chassis Dimensions
SR209 Plus Series 1-5 Chassis Dimensions Figure 8 Chassis dimensions │... -
Page 12: Interior View
SR209 Plus Series 1-6 Interior View Figure 9 Chassis components A. 3.5” HDD Cage Slot C. 5.25” Storage Drive Bay E. System Board B. Power Supply Unit D. PCIe Fan (Option) │... -
Page 13: System Level Environmental Specifications
SR209 Plus Series 1-7 System Level Environmental Specifications The following table defines the system level specification under operating and non-operating environment. Table 3 System environmental specifications summary Parameter Specification Temperature Operating 5º C to 35º C (41º F to 95º F) -
Page 14: System Packaging
1-8 System Packaging The original Chenbro packaging, where the server system is delivered, is designed to provide protection to a fully configured system and tested to meet ISTA (International Safe Transit Association) Test Procedure 1A. The packaging is also designed to be re-used for shipment after system integration has been completed. -
Page 15: System Components Installation And Removal
SR209 Plus Series 2. System Components Installation and Removal SR209 Plus supports up to 4 x 3.5” hot-swap SAS/SATA HDD or 4 x 3.5” Internal SAS/SATA HDD. Support for different storage and peripheral options will vary depending on the system model and/or available accessory options installed. -
Page 16: Front Bezel Installation
SR209 Plus Series 2-2 Front Bezel Installation Figure 11 Bezel installation 1. Lean the right side of the bezel on the front chassis. 2. Fully attach the bezel on the front of the chassis, and make sure the internal latches (x 2) are up. -
Page 17: Device Installation
SR209 Plus Series 2-3 5.25” Device Installation Figure 13 5.25” device blank removal 1. Press two sides of the latch of the blank to release the blank as shown. 2. Pull the blank out. Figure 14 5.25” device side rail installation 1. -
Page 18: Figure 15 5.25" Device Installation
SR209 Plus Series Figure 15 5.25” device installation 1. Insert the 5.25” device into the drive bay. Note: Make sure both side rails are clipped on the latch. │... -
Page 19: Hdd Cage Installation
SR209 Plus Series 2-4 HDD Cage Installation Figure 16 3.5” internal HDD cage installation 1. Insert the fan into the reserved slot. 2. Insert the HDD cage into the chassis. 3. Secure the thumb screws on the four sides of the HDD cage. -
Page 20: Figure 18 3.5" Hot-Swap Hdd Cage Fan Maintenance Step-1
SR209 Plus Series Figure 18 3.5” hot-swap HDD cage fan maintenance step-1 Figure 19 3.5” hot-swap HDD cage fan maintenance step-2 1. Unplug the power connector from the backplane. 2. Release the fan latch and pull the fan out of the fan cage. -
Page 21: Figure 20 3.5" Hot-Swap Hdd Carrier Removal
SR209 Plus Series Figure 20 3.5” hot-swap HDD carrier removal 1. Press the carrier button to release the carrier. 2. Pull the lever to remove the carrier from the HDD cage. Figure 21 3.5” hot-swap HDD carrier installation 1. Insert the HDD carrier into the cage. -
Page 22: Figure 22 3.5" Hdd Installation (Tool-Less Type)
SR209 Plus Series Figure 22 3.5” HDD installation (tool-less type) 1. Engage two embossed pins into the side dimples on the HDD as shown 2. Carefully push down the other side of the HDD until another two embossed pins and side dimples lock into place NOTE: Due to degraded performance and reliability concerns, the use of the 3.5”... -
Page 23: Figure 24 2.5" Ssd Installation (Screw Type)
SR209 Plus Series Figure 24 2.5” SSD installation (screw type) 1. Align front HDD with the anchor point on the carrier. 2. Assemble 2.5” SSD into the carrier by three screws from the bottom as shown. │... -
Page 24: Optional Fan (Add-In-Card Area) Installation
SR209 Plus Series 2-5 Optional Fan (Add-In-Card Area) Installation Figure 25 Optional fan installation 1. Attach the fan with the tool-less fan holder (as shown). 2. Insert the fan module into the reserved fan slot as shown. NOTE: Please notice the arrow on the fan holder pointing the rear. -
Page 25: Rear Fan Maintenance
SR209 Plus Series 2-6 Rear Fan Maintenance Figure 27 Rear fan maintenance step-1 Figure 28 Rear fan maintenance step-2 1. Lift up the fan latch at the bottom of the fan module without release. 2. Push the fan module down to remove it from the chassis. -
Page 26: Power Supply Installation
SR209 Plus Series 2-7 Power Supply Installation Figure 29 Single PSU installation 1. Place the PSU inside the chassis, and ensure the alignment for four screw holes of PSU and bracket of the chassis matched. 2. Secure the four screws as shown. -
Page 27: Backplane
SR209 Plus Series 3. Backplane Each drive carrier includes separate LED indicators for drive activity and drive status. Light pipes integrated into the drive carrier direct light emitted from the LEDs mounted next to each drive connector on the backplane to the drive carrier faceplate, making them visible from the front of the system. -
Page 28: Storage Backplane Options
SR209 Plus Series 3-1 Storage Backplane Options SR209 Plus supports the below backplanes: 1 x 3.5” 12Gbps Mini-SAS HD backplane 1 x 3.5” 12Gbps 4-port SAS/SATA backplane All available SAS/SATA compatible backplanes include the following common features: 12Gbps SAS and 6Gbps SAS/SATA ... -
Page 29: 12Gbps Mini-Sas Backplane
SR209 Plus Series 3-2 3.5” 12Gbps Mini-SAS Backplane Table 7 Backplane specifications Specification Host Interface SFF-8643 HDD Interface SFF-8680 Hot-Swap Yes, allows users to replace devices online Display LED indicates storage device status Power LED – Blue (Present) Access LED – Green (Busy) Error LED –... -
Page 30: Figure 32 Backplane Rear View
SR209 Plus Series Figure 32 Backplane rear view Table 8 Connector and pin header function description Drawing Label Description Description Mini-SAS HD For connecting to a mainboard or a HBA, this mini-SAS HD connector is applied. A proper cable selection is... - Page 31 SR209 Plus Series Drawing Label Description Description DIP switch The settings of on-board hardware monitor can be controlled and configured through this DIP switch. It can manage the functions of PWM fan & temperature threshold. The motherboard can monitor HDD temperature and fan status through this connector.
-
Page 32: 12Gbps 4-Port Sas/Sata Backplane
SR209 Plus Series 3-3 3.5” 12Gbps 4-Port SAS/SATA Backplane Table 9 Backplane specifications Specification Host Interface 7-pin SATA HDD Interface SFF-8680 Hot-Swap Yes, allows users to replace devices online Display LED indicates storage device status Power LED – Blue (Present) Access LED –... -
Page 33: Figure 34 Backplane Front View
SR209 Plus Series Figure 34 Backplane front view A. HDD_00 C. HDD_02 B. HDD_01 D. HDD_03 Figure 35 Backplane rear view │... -
Page 34: Table 10 Connector And Pin Header Function Description
SR209 Plus Series Table 10 Connector and pin header function description Label Description Description Drawing SATA/SAS For connecting to a mainboard, this 7-pin SATA/SAS connector is applied. A proper cable selection is essential as well to make sure good signal integrity can be maintained for the whole connection path from mainboard HDD devices. -
Page 35: Maintenance And Service
(Dead on Arrival) If the products are found Defect On Arrival, please contact Chenbro’s regional sales or CQE and indicate the defective status via email along with product photos and description. You may need to return the defective item by request.
