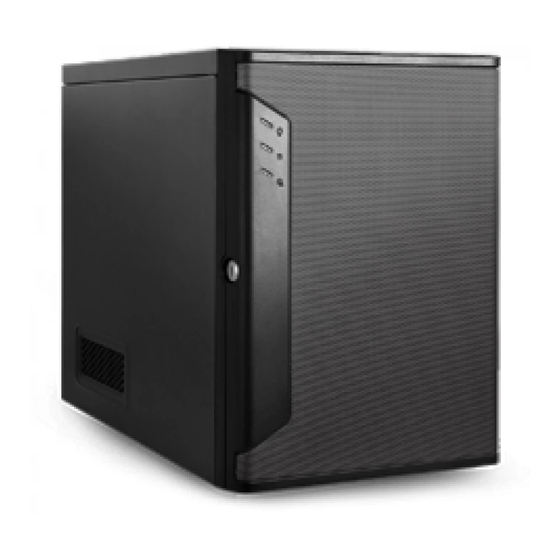

- Page 1 SR301 Plus Series Server Chassis User Manual January 2020 Version 2.3 A document provides an overview of product features, functions, architecture, and support specifications.
- Page 2 No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document. Chenbro disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade.
-
Page 3: Table Of Contents
SR301 Plus Series Table of Contents Table of Contents ............................3 List of Figures ..............................4 List of Tables ..............................5 Product Overview .......................... 6 1-1 Front Panel ..........................7 1-2 Back Panel ..........................8 1-3 Security Features ........................9 1-4 Front Control Panel ....................... -
Page 4: List Of Figures
SR301 Plus Series List of Figures Figure 1 Front panel (enclosed) ........................ 7 Figure 2 Front panel (open) ........................7 Figure 3 Back panel with single PSU ......................8 Figure 4 Padlock Loop and Kensington Slot location ................. 9 Figure 5 Padlock Loop and intrusion switch location ................ -
Page 5: List Of Tables
SR301 Plus Series List of Tables Table 1 Chenbro SR301 Plus specifications ....................6 Table 2 Front control panel ........................10 Table 3 System environmental specifications summary ................13 Table 4 System packaging information ....................14 Table 5 Product weight information ....................... 14 Table 6 Drive power LED/activity LED behavior .................. -
Page 6: Product Overview
SR301 Plus Series 1. Product Overview The SR301 chassis has been modified to support both tool-less 3.5” HDD carrier and PCIe 3.0 slot, and transformed into feature- advanced SR301 Plus. Beneath the chassis, an information sticker reads revision and manufacturing codes which are necessary for technical support. -
Page 7: Front Panel
SR301 Plus Series 1-1 Front Panel Figure 1 Front panel (enclosed) A. Indicator Figure 2 Front panel (open) A. Bezel Door C. Front Control Panel B. 3.5” Storage Drive Bay D. USB3.0 │... -
Page 8: Back Panel
SR301 Plus Series 1-2 Back Panel Figure 3 Back panel with single PSU PS/2 Single PSU C. Expansion Slot Opening (Low Profile) Rear I/O │... -
Page 9: Security Features
SR301 Plus Series 1-3 Security Features Figure 4 Padlock Loop and Kens location ington Slot Figure 5 Padlock Loop and intrusion switch location A. Padlock Loop C. Kensington Slot B. Key Lock D. Intrusion Switch │... -
Page 10: Front Control Panel
SR301 Plus Series 1-4 Front Control Panel Figure 6 Front control panel Table 2 Front control panel Label ICON Indicator, button or connector Power Button with LED Power LED HDD Activity LED Fan Alarm LED System Reset Button │... -
Page 11: System Dimensions
SR301 Plus Series 1-5 System Dimensions Figure 7 Chassis dimensions │... -
Page 12: Interior View
SR301 Plus Series 1-6 Interior View Figure 8 Chassis components A. 3.5” HDD Cage C. Power Supply Unit B. HDD Fan Assembly & Air Duct D. System Board │... -
Page 13: System Level Environmental Specifications
SR301 Plus Series 1-7 System Level Environmental Specifications The following table defines the system level specifications under operating and non-operating environments. Table 3 System environmental specifications summary Parameter Specification Temperature Operating 5º C to 35º C (41º F to 95º F) -
Page 14: System Packaging
1-8 System Packaging The original Chenbro packaging, where the server system is delivered, is designed to provide protection to a fully configured system and tested to meet ISTA (International Safe Transit Association) Test Procedure 1A. The packaging is also designed to be reused for shipment after system integration has been completed. -
Page 15: System Components Installation And Removal
SR301 Plus Series 2. System Components Installation and Removal SR301 Plus supports up to 4 x 3.5” hot-swap SAS/SATA HDD. Support for different storage and peripheral options will vary depending on the system model and/or available accessory options installed. 2-1 Side Cover Installation... -
Page 16: Front Bezel Installation & Removal
SR301 Plus Series 2-2 Front Bezel Installation & Removal Figure 10 Bezel installation Make sure the key lock of the bezel is on your left side. Lean the right side of the bezel as shown, and align two latches on the bezel with two grooves on the chassis. -
Page 17: Hdd Tray Installation & Removal
SR301 Plus Series 2-3 HDD Tray Installation & Removal Figure 12 3.5” Hot-swap HDD tray installation 1. Insert the HDD tray into the cage as shown. 2. Push down the lever to secure the HDD tray. Figure 13 3.5” Hot-swap HDD tray removal 1. -
Page 18: Figure 12 3.5" Hdd Installation (Tool-Less Type)
SR301 Plus Series Figure 12 3.5” HDD installation (tool-less type) 1. Engage two embossed pins with the side dimples on the HDD as shown. 2. Carefully push down the other side of the HDD until another two embossed pins and side dimples lock into place. -
Page 19: Figure 14 2.5" Hdd/Ssd Installation (Screw Type)
2. Secure 2.5” HDD/SSD with the tray by three screws from the tray bottom. NOTE: Dedicated screw type is required for 2.5” HDD/SSD Installation, Chenbro P/N: 384-14602-3143A0. Figure 15 Side 2.5” HDD/SSD installation (screw type) 1. Align the 2.5” HDD/SSD with the anchor point on the tray and secure the HDD/SSD by four designated screws. -
Page 20: Hdd Fan (Below Storage Cage) Maintenance
SR301 Plus Series 2-4 HDD Fan (below Storage Cage) Maintenance Figure 16 HDD fan installation (fan assembly) Figure 17 HDD fan installation (chassis) Attach the fan with the tool-less fan holder as a fan module. Attach the fan module with the tool-less air duct as a fan assembly. -
Page 21: Figure 18 Hdd Fan Maintenance
SR301 Plus Series Figure 18 HDD fan maintenance 1. Unplug the fan power connector. 2. Press the tab of the fan holder without release, and pull the fan assembly toward the rear of the chassis. 3. Detach the fan assembly from the storage cage as shown. -
Page 22: Power Supply Installation
SR301 Plus Series 2-5 Power Supply Installation Figure 19 Single PSU installation-1 (PSU assembly) Figure 20 Single PSU installation-2 Secure the PSU on the power adapter plate with four designated screws as shown. Plug in the power connector. Insert the PSU assembly toward the rear of the chassis until it is locked into place. -
Page 23: Backplane
SR301 Plus Series 3. Backplane Each drive tray includes separate LED indicators for drive activity and drive status. Light pipes integrated into the drive tray assembly direct light emitted from the LEDs mounted next to each drive connector on the backplane to the drive tray faceplate, making them visible from the front of the system. -
Page 24: Storage Backplane Options
SR301 Plus Series 3-1 Storage Backplane Options SR301 Plus supports the below backplanes: 1 x 3.5” 4-port 12Gbps Mini-SAS HD passive backplane 1 x 3.5” 4-port 12Gbps SAS/SATA passive backplane All available SAS/SATA backplanes include the following common features: 12Gbps SAS and 6Gbps SAS/SATA ... -
Page 25: 4-Port 12Gbps Mini-Sas Backplane
SR301 Plus Series 3-2 3.5” 4-Port 12Gbps Mini-SAS HD Backplane Table 7 Backplane specifications Specification Host Interface Mini-SAS HD (SFF-8643), Right Angle HDD Interface SFF-8680 (SAS 29-pin) Hot-Swap Yes, allows users to replace devices online Display LED indicates storage device status Power LED –... -
Page 26: Figure 23 Backplane Rear View
SR301 Plus Series Figure 23 Backplane rear view Table 8 Connector and pin header function description Label Description Description Drawing Mini-SAS HD For connecting to a mainboard or HBA, this Mini-SAS HD connector is applied. A proper cable selection is essential as well... -
Page 27: 4-Port 12Gbps Sas/Sata Backplane
SR301 Plus Series 3-3 3.5” 4-Port 12Gbps SAS/SATA Backplane Table 9 Backplane specifications Specification Host Interface SATA 7-pin HDD Interface SFF-8680 (SAS 29-pin) Hot-Swap Yes, allows users to replace devices online LED indicates storage device status Display Power LED – Off (Fault) –... -
Page 28: Figure 25 Backplane Rear View
Figure 25 Backplane rear view Table 10 Connector and pin header function description Label Description Description Drawing SAS/SATA For connecting to a mainboard, this SATA 7-pin connector is applied. A proper cable selection is essential as well to make sure good signal integrity, which can be maintained for the whole connection path from mainboard HDD devices. -
Page 29: Maintenance And Service
(Dead on Arrival) If the products are found Defect On Arrival, please contact Chenbro’s regional sales or CQE and indicate the defective status via email along with product photos and description. You may need to return the defective item by request.
