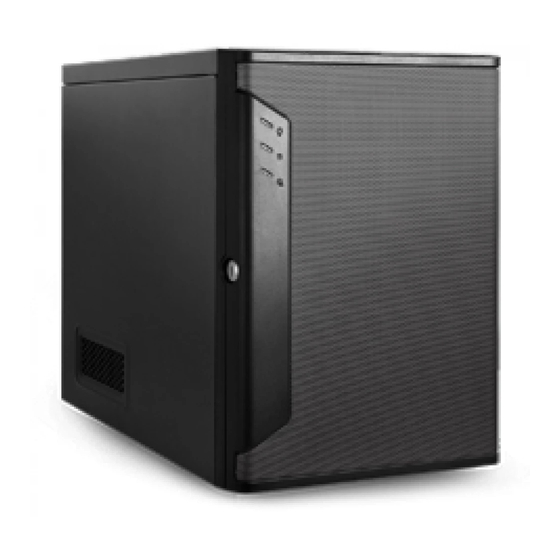

SR30169 Plus Server Chassis
4-port 12Gb/s mini-SAS HD Backplane - 380-30110-2002A1
User Manual
Revision 1.0
January, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR301 Plus series and is the answer not in the manual?

Questions and answers

Related Manuals for Chenbro SR301 Plus series

Summary of Contents for Chenbro SR301 Plus series

  • Page 1 SR30169 Plus Server Chassis 4-port 12Gb/s mini-SAS HD Backplane - 380-30110-2002A1 User Manual Revision 1.0 January, 2018...
  • Page 2 4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Revision History Date Revision Changes January, 2018 Initial Version...

  • Page 3: Disclaimers And Limitation Of Liability

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Copyright and Trademarks Copyright © 2017 Chenbro Micom Co., Ltd. or its subsidiaries. All rights are reserved. Chenbro, and (Chenbro logo) are registered trademarks of Chenbro Micom Co., Ltd in the worldwide. Other company’s product names or trademarks are used herein for identification purpose only and belong to their respective companies.

  • Page 4: Table Of Contents

    Table of Contents Revision History ....................II Copyright and Trademarks .................. III Disclaimers and Limitation of Liability ..............III Chapter 1.Overview ..................... 1 1.1 Introduction ..................... 1 1.2 SR301 Chassis Revision ................1 1.3 Hardware Specification and Feature ............2 Chapter 2.
  • Page 5 4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual...
  • Page 6 List of Figures Figure 1. Front Side of Backplane .................. 5 Figure 2. Front Side of Backplane .................. 5...
  • Page 7 List of Tables Table 1. List of Backplane Specification ................ 3 Table 2. Backplane Connector & Component Layout ........... 4...

  • Page 8: Chapter 1.Overview

    12Gb/s 4-port mini-SAS HD backplane, which is not compatible with the previous version of SR301 chassis with screw-installed 3.5” HDD trays. Moreover, it also lists down Chenbro worldwide technical contacts, so the user can contact our experienced field application engineers via either a phone call or email.

  • Page 9: Hardware Specification And Feature

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Expansion Slot PCI-e 3.0 PCI-e 2.0 Table 1.SR301 PLUS 1.3 Hardware Specification and Feature ▪ Supports 6Gb/s and 12Gb/s SAS/SATA 3.5” hard disks ▪ Supports HDD hot-swap when system is running ▪...
  • Page 10 4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Dimension 130.1 ( L ) x 104.5 ( W ) x 2.4 ( H ) mm Table 2. Backplane Specification 1.4 Compatible Chassis  SR30169 Plus...

  • Page 11: Chapter 2. Backplane Layout

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Chapter 2. Backplane Physical Layout 2.1 Backplane Dimension 2.2 Connector Layout The following table is a list of all connectors, headers and jumpers applied to this backplane. With layout diagrams, user can find where they are on both component and solder sides. Backplane Connector &...
  • Page 12 4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual SW1, DIP Switch B1, Buzzer (Reserved) JA01, Reserved JP02, Fail LED Header JF01, 4-pin Fan Header CB1, mini-SAS HDD Connector JC01, I2C Connector JP01, SGPIO mode Jumper CN02, Power Connector CN01, Power Connector Figure 1.

  • Page 13: Chapter 3.Function Of Interface

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Chapter 3.Function of Interface There are various interfaces on this backplane used for connecting to mainboard and getting system operated. Also, there are some interfaces available for system debug and configuration purposes.

  • Page 14: Mini-Sas Hdd Connector, Cb1

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Plug-in detection Input HDD Plug-in detection 5V Pre-charge Input Pre-charge +5V Power Power +5V Power Power +5V 12V Pre-charge Input Pre-charge +12V Power Power +12V Power Power +12V Table 4.HDD IN Connector 3.2 mini-SAS HDD Connector, CB1 For connecting to a mainboard or a HBA, this mini-SAS HD connector is applied.

  • Page 15: 4-Pin Fan Header (Jf1)

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Input Receiver data 0 (+) Input Receiver data 0 (-) Input Receiver data 2 (+) Input Receiver data 2 (-) SPGIO SDOA Output SPGIO data Output Transmitter data 1(+) Output Transmitter data 1(-) Output Transmitter data 3(+) Output...

  • Page 16: Hdd Access Mode Jumper (Cn02)

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Pin No. Signal Name Input/output Signal Name Picture Power GND Power +12V Fan_tach FAN Sensor Tachometer Fan_PWM FAN PWM signal to control fan speed Table 6. 4-pin Fan Header 3.4 HDD Access Mode Jumper (JP01) This jumper allows you to configure HDD access LED and fail LED in two modes.

  • Page 17: 4-Pin Peripheral Power Connector (Cn1And Cn2)

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Locate 4Hz Blinking SGPIO Rebuild 1Hz Blinking SGPIO Table 8. HDD Status LED Color Code 3.5 4-pin peripheral power connector (CN01and CN02) These two connectors are used to power four 3.5” hard disks, connected to this backplane, and each can ensure that all drives are supplied with stable power inputs.

  • Page 18: Hardware Monitor Display Pin Header (Cn01)

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Input I2C Clock Signal (Internal pull high +5V) Power Power +5V to I2C only (Option) Table 10. Pin assignment of I2C connector 3.7 Hardware Monitor Display Pin Header (JP02) The event LED, with red/black wire, is located on front bezel of SR301+, and can be configured through this pin header.

  • Page 19: Chapter 4.Technical Support

    4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual Sw1-1 Enable Disable(default) Table 13.SW1-1: FAN Control Enable/Disable Setting SW1-2: TEMP Sensor Threshold Setting The temperature threshold of triggering event warning LED and full fan speed can be set from this DIP position. Sw1-2 TEMP 55℃(default)
  • Page 20 Tel: +1-909-947-3200 Table 16. Regional phone contact list Email Support Please send your technical inquiry to the email box fae@chenbro.com, and then our regional technical support engineers will either reply via email or ring you directly. Web Support Please visit Chenbro web site http://www.chenbro.com, and then move the mouse cursor to or touch on tab “Support”.
