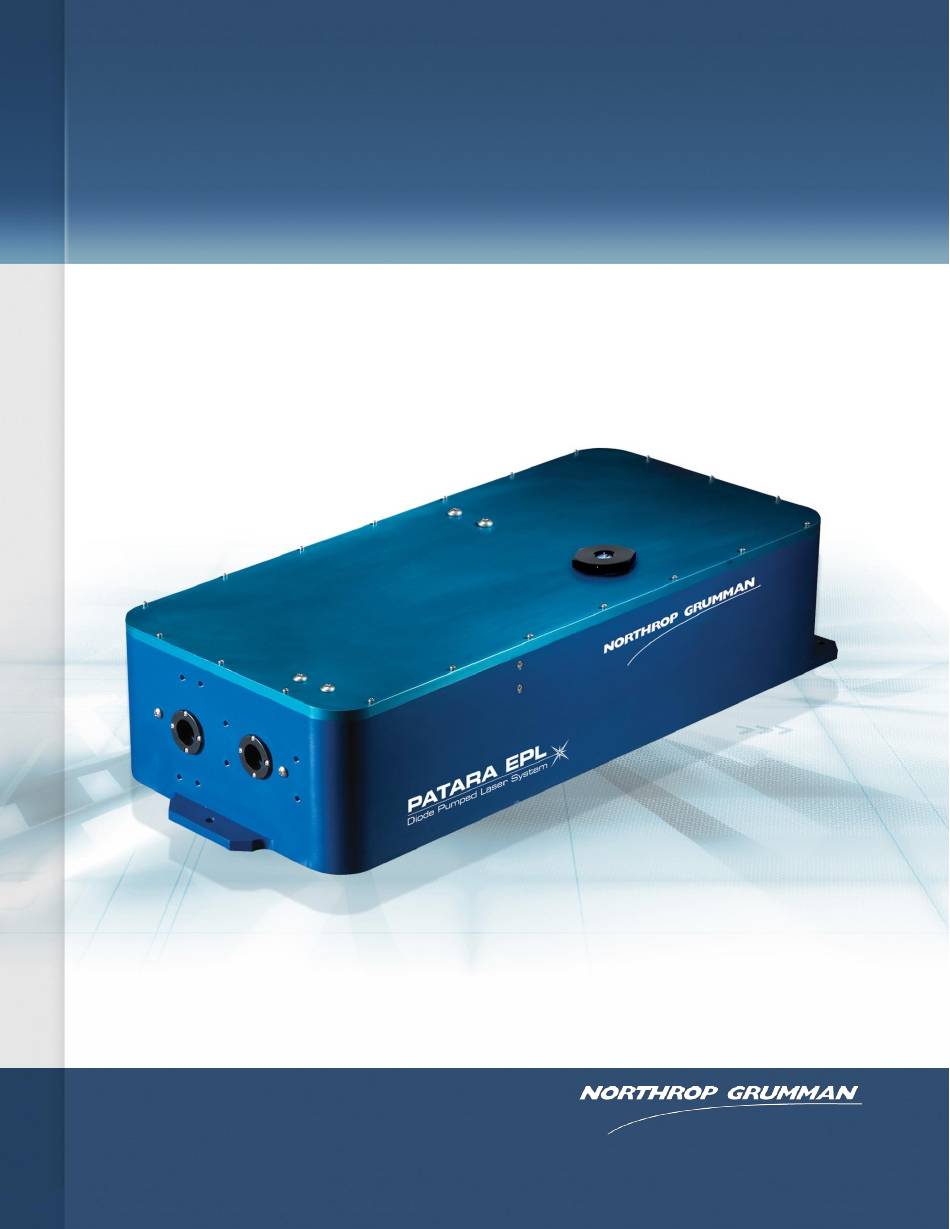

- Page 1 Quick Installation Guide Patara End-Pumped Laser EPL-016-QTG SEPTEMBER 2019 CEO-UMAN-0098 REV B Approved for Public Release; NG19-1901 © 2019 Cutting Edge Optronics, Inc.
- Page 2 Worldwide Technical Support and Product Information http://www.northropgrumman.com/BusinessVentures/CEO/Pages/Service.aspx http://www.ngceoservice.com/ (Knowledge Center) Hours: 8:00 a.m. to 5:00 p.m., Central time* Technical Support: (636) 916-4900 (follow prompts for department directory) Email: ngceoservice @ngc.com Cutting Edge Optronics Headquarters 20 Point West Blvd. St. Charles, MO 63301 USA Sales Support: (636) 916-4900 (follow prompts for department directory) *After office hours, please leave a voice mail message.
- Page 3 © 2019 Cutting Edge Optronics, Inc. Patara End-Pumped Laser Quick Start Guide Approved for Public Release; NG19-1901...
-
Page 4: Important Information
Important Information Copyright Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical, including photocopying, recording, storing in an information retrieval system, or translating, in whole or in part, without the prior written consent of Cutting Edge Optronics. Export This laser product is regulated by the Export Administration Regulations (EAR) of the USA. -
Page 5: Safety Information
Safety Information Product End-of-Life Handling Northrop Grumman is committed to protecting the environment. In accordance with the Waste Electrical and Electronic Equipment directive (WEEE) and Restriction of Hazardous Substances in the European Union (RoHS EU) directives, Northrop Grumman accepts the return of our products for disposal. - Page 6 Conventions The following conventions appear in this manual: This icon denotes a caution or a warning, which advise of precautions to take to avoid injury, data loss, or a system crash. Initial Capped The first letter in uppercase refers to menu options, e.g., Phase Delay, Pulse Width.
- Page 7 The following conventions may appear on the product: An injury hazard immediately accessible as the marking is read. DANGER A hazard not immediately accessible as the marking is read. WARNING A hazard to property including the product. CAUTION ESD: Handle Appropriately Laser Emission: Use caution.
- Page 8 The trouble shooting section is intended to help guide the user to the source of problems. Do not attempt repairs while the unit is under warranty; instead, report all problems to Northrop Grumman for warranty repair. We also suggest recording information about the laser such as power, settings, time and date.
- Page 9 Post warning signs in prominent locations near the laser operation area. Use safety interlocks on all entryways. All Northrop Grumman system control electronics are supplied with interlock inputs that can be used to preclude operation with an open safety door.
-
Page 10: About This Manual
About This Manual This manual describes the installation, operation, and service of the Patara End-Pumped Laser (EPL) System with the eDrive Nitro Laser Controller. The manual consists of the following chapters: Chapter 1: Laser System Components provides a description of the system components and unpacking procedures ... -
Page 11: Table Of Contents
Table of Contents Table of Contents Chapter 1: Introduction Laser System Components Unpacking the Laser System Chapter 2: Laser System Setup Laser Head Setup eDrive Setup Chiller Setup Connecting the Chiller Chapter 3: Laser Operation and Tuning First-time chiller turn-on procedure First time laser turn-on procedure Laser Performance Optimization Check Hold Off... - Page 12 List of Figures and Tables List of Figures and Tables Figure 1-1. Laser System Components ..................2 Figure 2-1. Basic Setup for the Laser Power Test ..............5 Table 2-1. Recommended Fuse Ratings ................... 6 Figure 2-2. Filter Hoses and Coolant Connections ..............9 Figure 2-3.
-
Page 13: Chapter 1: Introduction
Chapter 1: Introduction This introduction provides the following information: Laser System Components Unpacking the Laser System © 2019 Cutting Edge Optronics, Inc. Patara End-Pumped Laser Quick Start Guide Approved for Public Release; NG19-1901... -
Page 14: Laser System Components
Chapter One: Introduction Laser System Components Before installing the laser, be familiar with the components of the laser system (see Figure 1-1). Laser head eDrive Chiller Laser Signal Cable Diode Power Cable Q-Switch RF Cable AC Power Cables Hose for Chiller Filter housing and Filter Filter Wrench Figure 1-1. -
Page 15: Unpacking The Laser System
Chapter One: Introduction Unpacking the Laser System The Northrop Grumman Patara laser has been carefully packed for shipment. If the carton appears to have been damaged in transit, have the shipper’s agent present when the unit is unpacked. Inspect the unit as it is unpacked, looking for dents, scratches, or other evidence of damage. -
Page 16: Chapter 2: Laser System Setup
Chapter 2: Laser System Setup Sections included in this chapter provide the following information: Laser Head Setup eDrive Setup Chiller Setup Connecting the Chiller © 2019 Cutting Edge Optronics, Inc. Patara End-Pumped Laser Quick Start Guide Approved for Public Release;... -
Page 17: Laser Head Setup
Chapter 2: Laser System Setup Laser Head Setup The laser head should be mounted on an optical table or equivalent strong flat surface. There are three mounting holes provided to secure the laser. The laser should be installed in a clean environment. In the direction of the laser output beam, a power meter with the power scale up to 30 W should be installed approximately 1.5 feet away from the laser. -
Page 18: Edrive Setup
Chapter 2: Laser System Setup eDrive Setup Input Power Use only power cords suitable for the driver. Use a power source that delivers voltage in the range of 100 VAC (RMS) to 240 VAC (RMS) and 47 Hz to 63 Hz. Power switching is performed automatically (i.e., there are no configuration switches to set for high or low voltage ranging). -
Page 19: Chiller Setup
Chapter 2: Laser System Setup Chiller Setup Ambient Temperature and Relative Humidity The chiller is designed for indoor installation in ambient temperatures between 5 °C and 30 °C (41 °F and 86 °F). Relative humidity should not exceed 80% (non-condensing). Location The chiller should be installed on a strong, level surface and be located as close to possible to the laser. - Page 20 Please follow the proper procedures to clean the chiller before it is connected to the laser head. These procedures are listed on the CD (compact disc) shipped with the unit. They are also available through Northrop Grumman customer service. WARNING.
-
Page 21: Connecting The Chiller
Chapter 2: Laser System Setup Connecting the Chiller Coolant Hoses and Filter Connections The required coolant hoses, filters, and fittings are included in the plumbing kit that was shipped with the laser. They should be connected as illustrated in Figure 2-2. The correct coolant flow path starts with the supply port of the chillerfilter... -
Page 22: Figure 2-3. Chiller Assembled With Coolant Hoses And Filter
Chapter 2: Laser System Setup Figure 2-3 depicts the chiller with connected coolant hoses. Figure 2-3. Chiller Assembled with Coolant Hoses and Filter Connections on Laser Head Figure 2-4 depicts the connectors on the rear panel of the Patara EPL. All of the connectors are clearly labeled. -
Page 23: Figure 2-5. Plumbing Connection
Chapter 2: Laser System Setup 1. Plumbing Connection: Push the barb fittings of coolant hose connectors gently into the COOLANT IN and COOLANT OUT ports by following the flow path direction. Wetting the o-rings of the quick disconnect fittings and receptacles can prevent the o-ring from being cut by the mating piece during insertion. -
Page 24: Figure 2-7. Diode Power Connection
Chapter 2: Laser System Setup 3. Connect diode power. Remove the end cap and connect the female connector of the diode power cable to the J2 connector on the laser head (see Figure 2-7). Once it is aligned, the connector can be pushed in. Turn the locking ring of the connector in the clockwise direction until it is locked. -
Page 25: Figure 2-9. Edrive Rear Panel
Chapter 2: Laser System Setup Connections on the eDrive Figure 2-9 depicts the rear panel of the eDrive. Figure 2-9. eDrive Rear Panel 1. Chiller Interlock Connection: Connect the 9 pin chiller interlock shorting connector as shown below. Figure 2-10. Chiller Interlock Connector ©... -
Page 26: Figure 2-11. White Interlock Connectors
Chapter 2: Laser System Setup White Interlock Connection: Connect the 2-pin white interlock shorting connector as shown below. Figure 2-11. White Interlock Connectors 3. Connect RF cable. Connect the QS RF cable to the RF OUT 1 connector as shown in Figure 2-12. -
Page 27: Figure 2-14. Rf Signal Cable
Chapter 2: Laser System Setup Laser Signal Connection: Connect the connector of laser signal cable to the receptacle labeled laser interface on the back of eDrive (see Figure 2-14). Once it is aligned, the connector can be pushed in. Turn the locking ring of the connector in the clockwise direction until it is locked. -
Page 28: Chapter 3: Laser Operation And Tuning
Chapter 3: Laser Operation and Tuning This chapter describes the initial operation and tuning of the Laser system. This chapter discusses: First Time Chiller Turn on Procedure First Time Laser Turn on Procedure Laser Performance Optimization Daily Operation ©... -
Page 29: First-Time Chiller Turn-On Procedure
Chapter Three: Laser Optimization and Tuning First-time chiller turn-on procedure The first-time turn-on procedure should be similar for use with other chillers. Filling the Reservoir 1. Remove the filler cap from the reservoir Using a funnel, add Optishield Plus mixture (90% distilled water, 10% Optishield Plus) until it reaches the MAX line on the reservoir’s fluid level gauge. -
Page 30: First Time Laser Turn-On Procedure
Chapter Three: Laser Optimization and Tuning First time laser turn-on procedure Turn on the Chiller Ensure the cap that protects laser output window is removed and make sure the output window is clean. Figure 3-1. Output Window Cover Turn on the chiller. Check the temperature setting of the chiller. -
Page 31: Table 3-1. Edrive Settings
Chapter Three: Laser Optimization and Tuning 3. Check all the laser parameters in the eDrive. The menu designations will help locate the settings. Use the following values for the Patara EPL: Table 3-1. eDrive Settings Main Menu Menu 2 Menu 3 Parameter Setting or Value Channel Setup... - Page 32 Chapter Three: Laser Optimization and Tuning Main Menu Menu 2 Menu 3 Parameter Setting or Value -More- Set Control Function H-BRIDGE Set Heat Mult. 1.000 Set Cool Mult. 1.000 -More- Set Sensor Type TS67 Set Sensor Offset 0.00 °C TEC (Note, Enabled must be done last) Enabled or Disabled 9600 or 1200, 2400,...
-
Page 33: Laser Performance Optimization
For this procedure, a green light should be visible from the laser. In the absence of any visible output, contact Northrop Grumman for assistance. To obtain the best performance, small adjustments may optimize the laser. To optimize the laser, follow these steps: 1. - Page 34 Chapter Three: Laser Optimization and Tuning The coolant flow rate and temperature have a significant impact on the laser performance. Make sure that the flow rate and temperature correlate to the values listed on the ATP test report. Peak up the laser power by tuning the temperature of the TE Controller. Beginning with the TE Temperature from the ATP, adjust the temperature up and down in 0.2°...
-
Page 35: Figure 3-2. Accessible Holes For Hr And Oc Mirror Adjustment
Chapter Three: Laser Optimization and Tuning ACCESS HOLES FOR HM MIRROR ADJUSTMENT LASER OUT CLOCKWISE—MOVE BEAM UP COUNTERCLOCKWISE—MOVE BEAM DOWN CLOCKWISE—MOVE BEAM TO THE RIGHT COUNTERCLOCKWISE—MOVE BEAM TO THE LEFT CLOCKWISE—MOVE BEAM TO THE LEFT COUNTERCLOCKWISE—MOVE BEAM TO THE RIGHT CLOCKWISE—MOVE BEAM UP COUNTERCLOCKWISE—MOVE BEAM DOWN ACCESS HOLES FOR... -
Page 36: Check Hold Off
Chapter Three: Laser Optimization and Tuning Perform the same procedure with the vertical adjustments of the HR and HM mount. Periodically check for hold off when making these adjustments (see Check Hold Off section below). If laser power is within +/-5% of nominal (typical power meter accuracy), and it has good beam shape and stability, stop and replace the access screws in the cover. - Page 37 Chapter Three: Laser Optimization and Tuning CAUTION. The output beam of this system is a safety hazard. Avoid viewing the beam directly. Turn On Procedure Switch the chiller to the ON position. Verify correct flow rate and temperature setting to value specified on laser ATP test report data summary. Wait until the chiller has achieved proper temperature, which may take 5 to 10 minutes.
- Page 38 Chapter Three: Laser Optimization and Tuning CAUTION. Never look at the laser beam even it is off because the laser beam will ramp up the power automatically. Shut Down Procedure Press SHUTTER button to stop lasing. Gradually decrease operating current to zero. Press EMISSION on the eDrive to cease diode emission.
