Summary of Contents for NORTHROP GRUMMAN IR Patara Laser System

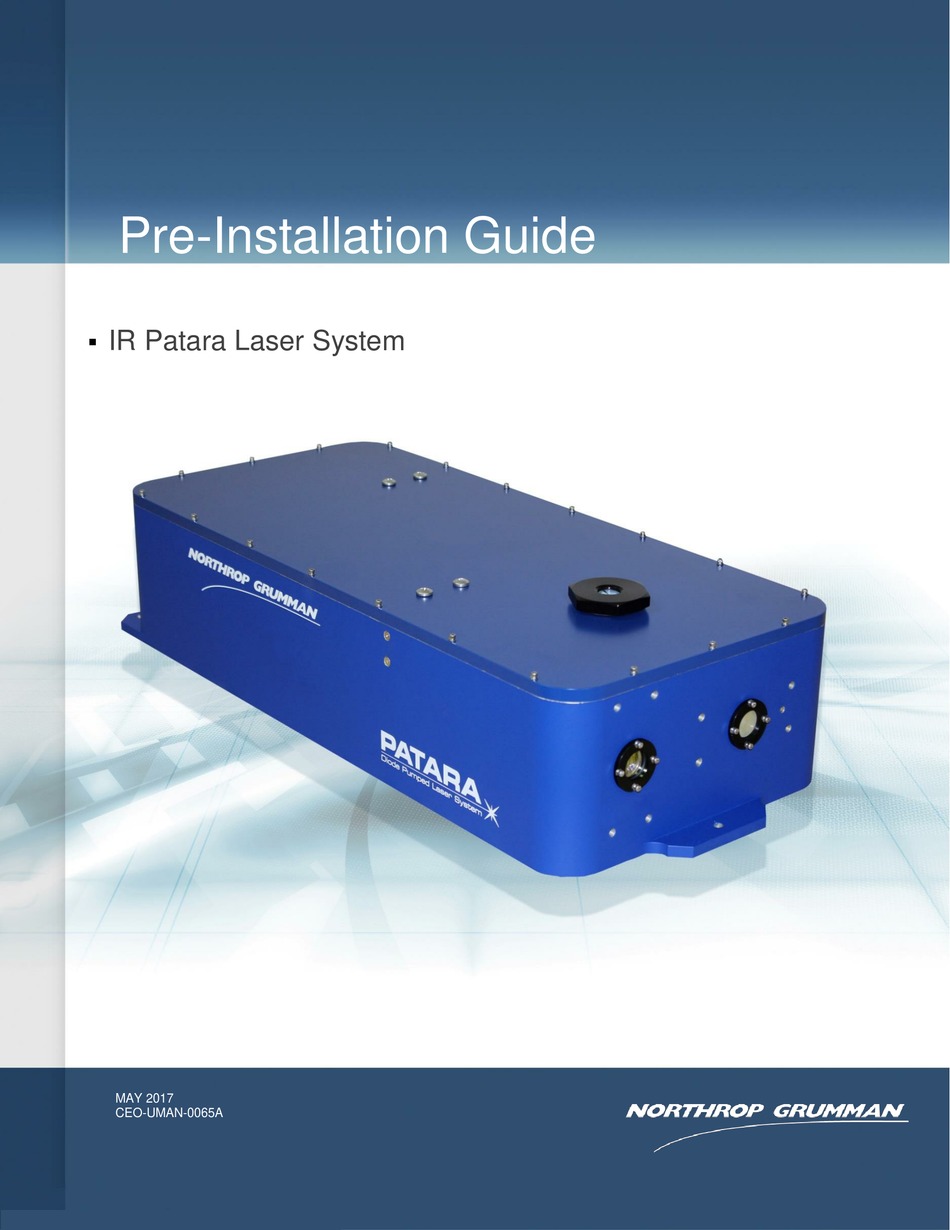

- Page 1 Pre-Installation Guide IR Patara Laser System MAY 2017 CEO-UMAN-0065A...
- Page 2 Worldwide Technical Support and Product Information http://www.northropgrumman.com/BusinessVentures/CEO/Pages/Service.aspx http://www.ngceoservice.com/ (Knowledge Center) Hours: 8:00 a.m. to 5:00 p.m., Central time* Service and Technical Support: (636) 916-4900 (follow prompts for department directory) Email: ngceoservice@ngc.com Cutting Edge Optronics Headquarters 20 Point West Blvd. St. Charles, MO 63301 USA Sales Support: (636) 916-4900 (follow prompts for department directory) *After office hours, please leave a voice mail message.
- Page 3 NG CEO. Patents Northrop Grumman Corporation products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved. © 2017 Cutting Edge Optronics, Inc.
- Page 4 Safety Information Product End-of-Life Handling NG CEO is committed to protecting the environment. In accordance with the Waste Electrical and Electronic Equipment directive (WEEE) and Restriction of Hazardous Substances in the European Union (RoHS EU) directives, NG CEO accepts the return of our products for disposal.
- Page 5 Conventions The following conventions appear in this manual: This icon denotes a caution or a warning, which advise you of precautions to take to avoid injury, data loss, or a system crash. italic Italic text denotes references to other resources that may be helpful to you or to bring attention to important information.
- Page 6 Caution: Risk of danger. Refer to manual. Chassis Ground General Safety Summary The Patara Laser System emits laser radiation that can permanently damage eyes and skin, ignite fires, and vaporize materials. Do not attempt to operate the laser system before carefully reading the complete operation manual provided with the product.
- Page 7 About This Guide This document is to provide information necessary for smooth installation/integration of the Patara Laser System with the eDrive Nitro Laser Controller. The Guide consists of the following chapters: Chapter 1: eDrive Dimensions, Power Requirement and Mounting describes details of the eDrive Nitro ...
-
Page 8: Table Of Contents
Table of Contents Table of Contents Chapter 1: eDrive Dimensions, Power Requirement and Mounting eDrive Dimensions Input Power Rack Mounting Clearance Weight Chapter 2: Laser Head Dimensions, Beam Height, and Mounting Requirements Laser head dimensions Beam height Mounting requirement Weight Chapter 3: Chiller and Coolant Chiller Plumbing CEO Supplied Hardware... - Page 9 List of Figures and Tables List of Figures and Tables Figure 1-1 Dimensions of eDrive Nitro for Patara Laser Table 1-1 Recommended Fuse Ratings Figure 2-1 Patara Laser Head Dimensions, Sheet 1 Figure 2-2 Patara Laser Head Dimensions, Sheet 2 Figure 3-1 Chiller Plumbing ©...
-
Page 10: Chapter 1: Edrive Dimensions, Power Requirement And Mounting
Chapter 1: eDrive Dimensions, Power Requirement and Mounting This chapter provides the following information: eDrive Dimensions Input Power Rack Mounting Clearance Weight © 2017 Cutting Edge Optronics, Inc. Patara-IR TEM Laser Pre-Installation Guide... -
Page 11: Edrive Dimensions
Chapter 1: eDrive Dimensions, Power Requirement, and Mounting eDrive Dimensions Figure 1-1 Dimensions of eDrive Nitro for Patara Laser Input Power Use only power cords suitable for your driver. Use a power source that delivers power in the range of 100 to 240 VAC-RMS, 47 to 63 Hz. Power switching is done automatically; ©... -
Page 12: Rack Mounting
Chapter 1: eDrive Dimensions, Power Requirement, and Mounting there are no configuration switches to set for high or low power ranging. Table 1-1 lists the recommended fuse selection for each voltage range. Table 1-1 Recommended Fuse Ratings Fuse Ratings Frequency AC Input (F1, F2) 120V ±10%... -
Page 13: Chapter 2: Laser Head Dimensions, Beam Height, And Mounting Requirements
Chapter 2: Laser Head Dimensions, Beam Height, and Mounting Requirements This chapter provides the following information: Laser Head Dimensions Beam Height Mounting Requirement Clearance Weight © 2017 Cutting Edge Optronics, Inc. Patara-IR TEM Laser Pre-Installation Guide... -
Page 14: Laser Head Dimensions
Chapter 2: Laser Head Dimensions, Beam Height, and Mounting Requirements Laser head dimensions The detailed dimensions of the Patara laser are shown in Figure 2-1 and 2-2. The laser head has dimensions of 26 inch (L) x 11 inch (W) x 6.13 inch (H). ©... - Page 15 Chapter 2: Laser Head Dimensions, Beam Height, and Mounting Requirements Figure 2-1 Patara Laser Head Dimensions, Sheet 1 © 2017 Cutting Edge Optronics, Inc. Patara-IR TEM Laser Pre-Installation Guide...
- Page 16 Chapter 2: Laser Head Dimensions, Beam Height, and Mounting Requirements Figure 2-2 Patara Laser Head Dimensions, Sheet 2 © 2017 Cutting Edge Optronics, Inc. Patara-IR TEM Laser Pre-Installation Guide...
-
Page 17: Beam Height
Chapter 2: Laser Head Dimensions, Beam Height, and Mounting Requirements Beam height The beam height of the Patara laser is 3 inches. Mounting requirement The laser has to be mounted on a flat optical table or equivalent bench. There are three mounting holes that are 0.28 inches (7.1mm) in diameter. - Page 18 Chapter 3: Chiller This chapter provides the following information: Chiller Plumbing Standard NG CEO Supplied Hardware Suggested Chiller Models © 2017 Cutting Edge Optronics, Inc. Patara-IR TEM Laser Pre-Installation Guide...
-
Page 19: Chapter 3: Chiller And Coolant
Chapter 3: Chiller and Coolant Chiller Plumbing Plumbing for the Patara laser is described in Figure 3-1. ¾ NPT ¾ NPT ½ NPT to 3/8 to 3/8 to 3/8 3/8 reinforced 3/8 reinforced CHILLER barb barb barb Hose (~18") Hose (~6') OUTLET “LASER INLET... - Page 20 Chapter 3: Chiller and Coolant Table 3-1 Polyscience Chiller Specifications Model Number Input Power Frequency Nominal Rated Dimensions Weight Amps 6362T31CE20C 120V single 60 Hz 13.5A 22 5/8 x 14 1/2 x 156 Lbs phase 27 5/8 inch (71 kg) 6352T41CE30E 208-230V 50/60 Hz...
-
Page 21: Chapter 4: Facility Summary
Chapter 4: Facility Summary This chapter provides the following information: eDrive Facility Requirements Chiller Facility Requirements Precautions for Safe Operation Suggested Supplies and Equipment © 2017 Cutting Edge Optronics, Inc. Patara-IR TEM Laser Pre-Installation Guide... -
Page 22: Edrive Facility Requirements
Chapter 4: Facility Summary eDrive Facility Requirements AC Input-Single Phase: 100 to 240 VAC-RMS, 47 to 63 Hz Clearance: 24 inches minimum, sides and rear for ventilation Chiller Facility Requirements AC Input-Single Phase: Polyscience P/N 6352T41CE30E: 208-230V/50Hz or 60Hz ... -
Page 23: Suggested Supplies And Equipment
Chapter 4: Facility Summary Suggested Supplies and Equipment Desiccant Cartridge The desiccant cartridge used in the Patara laser head is an industry standard part. Desiccant supplies can be purchased from NG CEO, or directly from AGM Container Controls, Inc. telephone number 800-995-5590. ...
