Settings Button - Antelope Discrete 4 Synergy Core User Manual

• Load a Session file by clicking Browse and navigating to its location on your computer.
• Use the Load Last Session button to quickly recall your most recent work.
• Set Defaults

12. SETTINGS Button

Opens the Discrete 4 SC Control Panel Settings window.

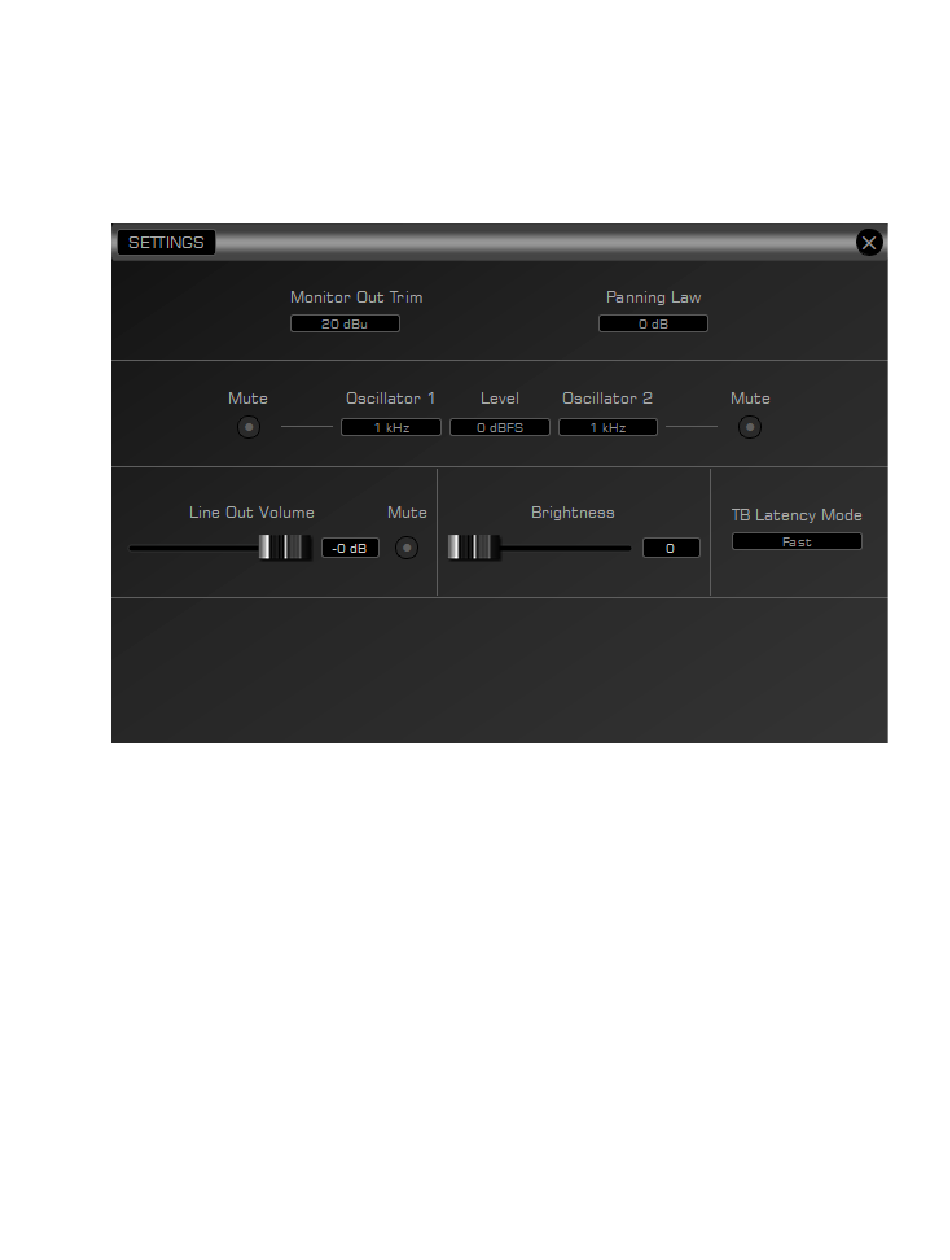

The Settings Panel
1. Monitor Out Trim
Lets you attenuate the Discrete 4 SC's monitor output signal level by 14 to 20dBu.
2. Panning Law *
Lets you specify the Panning Law between 0dB to -4.5dB.
* As the mono signal is panned from center to hard left or right, it will increase in loudness up to 6.02 dB. To ensure
perceived loudness stays the same, this has to be compensated for. The Panning Law setting lets you specify the
compensation amount in dB.
3. Mute Toggles
Used for muting Oscillators 1 & 2. The Discrete 4 SC has built-in oscillators that generate 440Hz or 1kHz signals (sine
waves) for testing the interface outputs during troubleshooting.
