Summary of Contents for Antelope Orion32 HD

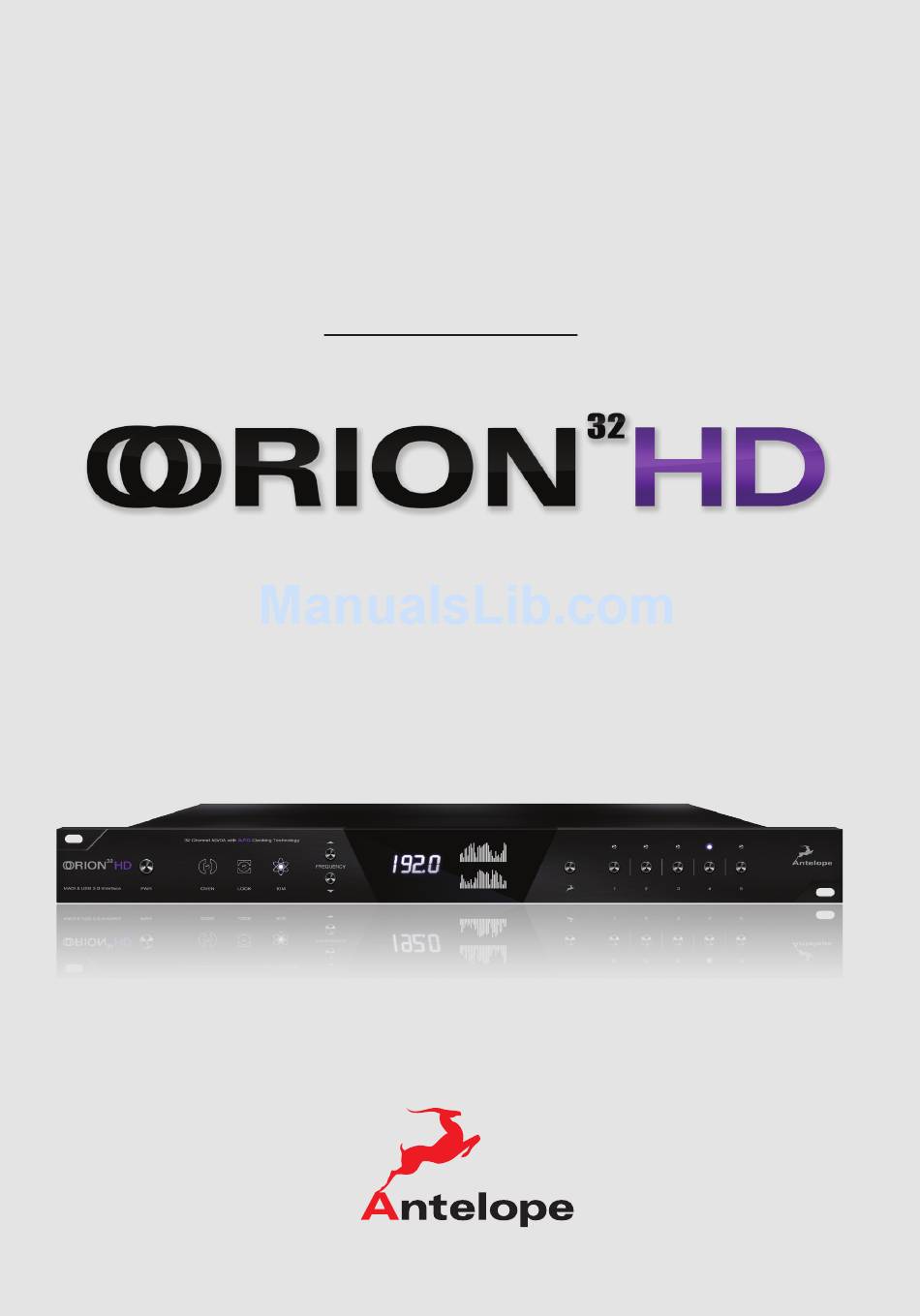

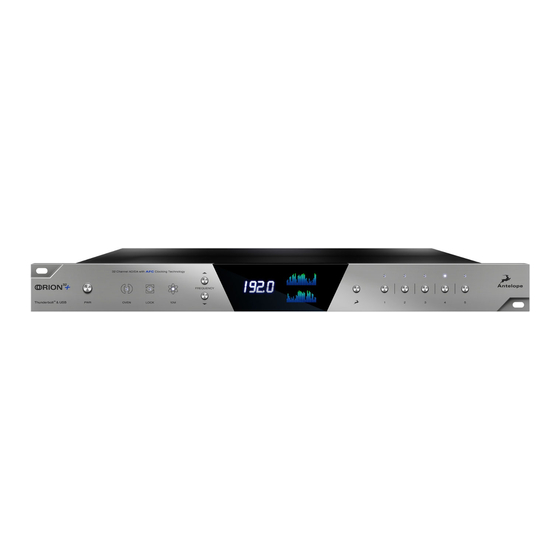

- Page 1 Owner’s Manual 64-Channel HDX / USB 3.0 Audio Interface...
-
Page 3: Table Of Contents
Contents Safety Notes Introduction Features Quick Start Activation Guide Front Panel Explained Rear Panel Explained Software Control Panel Advanced User Tips 10. In the Box 11. Troubleshooting 12. Technical Specifications 13. Antelope Audio Support Resources... - Page 4 Contents...
-
Page 5: Safety Notes
1. Safety Notes To reduce the risk of electrical shocks, fire, and related hazards: • Do not remove screws, cover, or cabinet. There are no user serviceable parts inside. Refer servicing to qualified service personnel. • Do not expose this device to rain, moisture or spillover of liquid of any kind. •... -
Page 7: Introduction
Antelope Audio. all Antelope Audio interfaces and is included inside Orion 32 HD. Allowing you to use Orion32 HD is the newest edition to the Antelope’s integrated and ever-growing Orion family. Compatible with any DAW on library of hardware-based vintage EQs, the market via HDX port or USB3, this new compressors and of course AuraVerb. -
Page 8: Features
Antelope Audio pristine AD/DA conversion technology • Antelope’s renowned 64-bit Acoustically Focused Clocking Technology • Antelope’s proprietary Oven Controlled Oscillator for supreme clocking stability • 2 Word Clock Outputs, 1 Word Clock Input and 1 Atomic Clock Input • Five presets for fast and easy recall of favorite setups •... -
Page 9: Quick Start
Open your preferred DAW and ensure the device is selected as an input and output. Note: Make sure your Orion32 HD has the most recent firmware installed. Check this by selecting the Info panel and clicking on the Firmware Update button. -
Page 10: Activation Guide
5. Activation Guide It is essential to activate Orion32 HD before using it. Once the DC power source is plugged and the device is connected to your computer via USB3 or HDX follow the steps below: Navigate to http://en.antelopeaudio.com/support/download/. Download the Orion32 HD Launcher. -
Page 11: Front Panel Explained
When lit, this indicates Orion32 HD is clocked by its own internal clock. Lock light When lit, this indicates Orion32 HD is locked to the signal that enters through the digital inputs on the rear panel (except HDX and USB). - Page 12 Note: Be aware that there might be a protective film over the display, which dims the illumination – feel free to remove it. Antelope button Hold down the Antelope button to access the Control Menu of the device, which allows you to adjust: 1. Clock Source 2.
-
Page 13: Rear Panel Explained
BNC connector used to accept Word Clock reference. 11. 10M Input This BNC Input Connector allows the Orion32 HD to receive timing reference from an Atomic Clock such as the Antelope 10M and 10MX, to increase the Oscillator accuracy. If the device is in Oven mode, plugging in the atomic clock causes the “Atomic LED” light... -
Page 14: Software Control Panel
This dropdown menu allows you to select how the Orion32 HD is to be synchronized. Select Oven/10M for internal sync (with or without atomic clock reference), W.C. (Word Clock) to sync the Orion32 HD to an external device through the Word clock input, or MADI, ADAT, S/PDIF for syncing with incoming digital signals. -
Page 15: Mixer Tab
17. How To (Tutorial YouTube Playlist) 7.2. Mixer Tab Orion32 HD offers four software low latency mixers which provide zero latency mixing and monitoring that can be distributed to any output from the control panel. The low latency mixers provide all basic functions of a real mixer such as: Solo, Mute, Pan, Stereo Link, Volume Level fader control and a Master Fader, so you can easily make a stereo mix plus an Auxiliary send in order to use AuraVerb. - Page 16 By default the effect is switched off. Quick Start AuraVerb appears as a pre-fader send effect on the Orion32 HD’s Mixer 1. To send a signal to the reverb, turn up the send control on a mixer channel and use the reverb output level to adjust the return to the mixer’s master channel.
- Page 17 The S & L icons stand for saving and loading your own AuraVerb presets. 7.3. Effects Tab Click on the Effects Tab to reveal the 16 AFX Channel strips. Orion32 HD Effects tab allows you to stack up to 8 effects (viewable in pairs) on each channel strip. You can choose between EQs and Compressors from the free, integrated and ever-growing Antelope Audio library of hardware-based vintage FX modeling legendary studio gear.
- Page 18 14. Windows only: ASIO Control – Buffer Size & USB Streaming Mode With the Orion32 HD in operating mode, press and hold the standby button to bring up Device INFO and Factory Reset options in the front panel display. You can scroll between these, using the Settings buttons.
-
Page 19: Advanced User Tips
8. Advanced User Tips Ground Loop Hum and Noise The design of Orion32 HD minimizes the possibility of ground loop hum and noise. However, we recommend the use of shorter, shielded cables and balanced connections for all the audio signals of your system. All power cables of the system should be connected to a dedicated outlet box or power conditioner unit to avoid ground current noise affecting the audio signal path. - Page 20 Check what clocking mode you are in. Are you receiving the clock signal from the source? • Check that the relevant lock light on the control panel of the Orion32 HD is lit up. • Try a different cable and another source if available.
-
Page 21: Technical Specifications
11. Technical Specifications Analog Inserts Analog Inputs 4 × DB25 (32 channels total), +24 dBu max Analog Outputs 4 × DB25 (32 channels total), +24dBu 1 × Stereo pair of Monitor outs on 1/4" TRS, +24dBu Digital Inputs 1 × Fiber Optic MADI (up to 64 channels) 2 ×... -
Page 22: Antelope Audio Support Resources
Get social with Antelope Audio and never miss an update: https://facebook.com/AntelopeAudio/ YouTube Page Tutorial videos, interviews, user cases and promos for forthcoming products: http://goo.gl/yfOmZf Web Blog Regular blog posts will update you on the latest user cases with the Orion32 HD: http://en.antelopeaudio.com/products/orion32-hd/... - Page 24 Owner’s Manual 64-Channel HDX / USB 3.0 Audio Interface...
