2. Panels explained

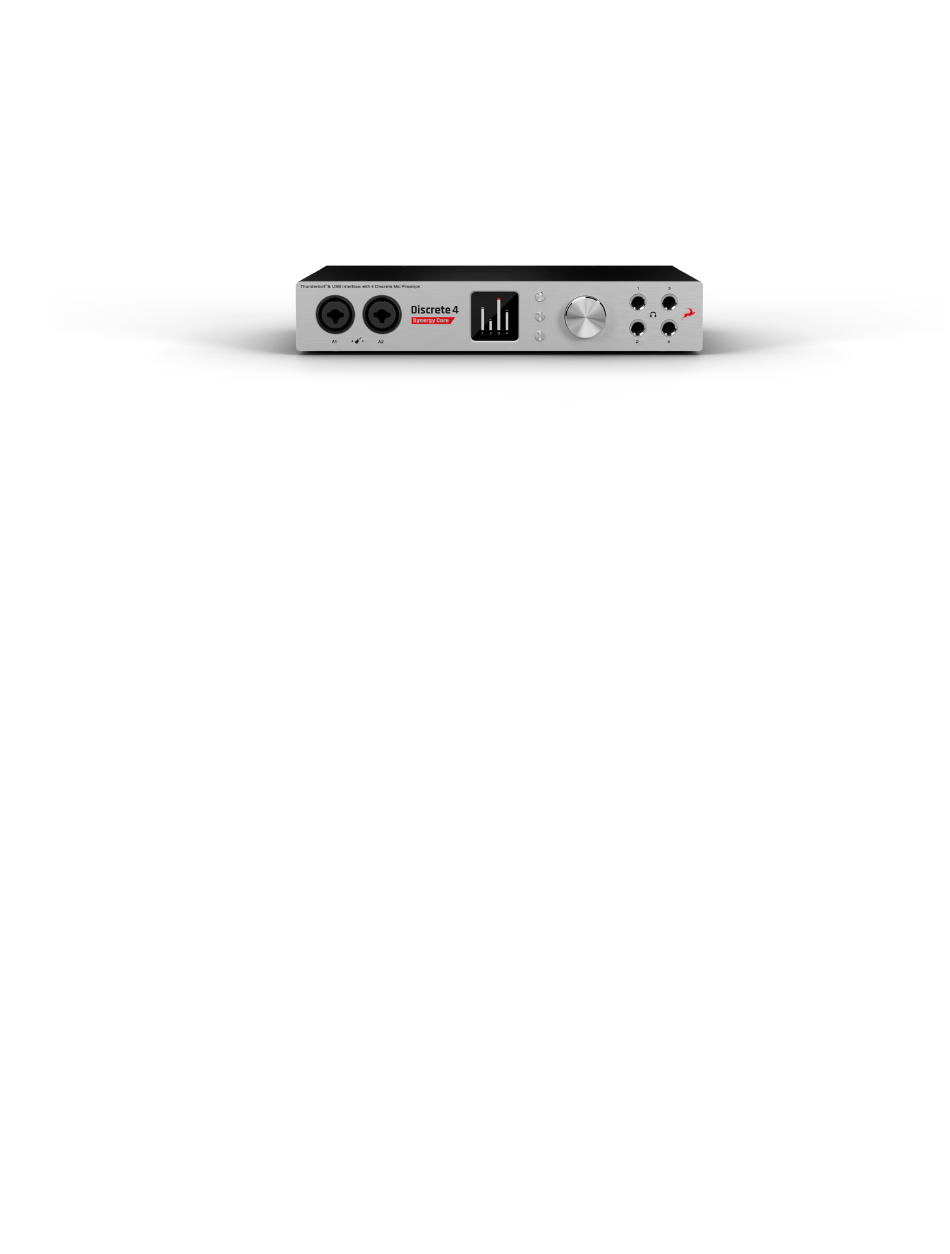

2.1. Front Panel
1. Two Instrument / Mic Preamp / Line inputs
Two console-grade Class A mic pres with discrete transistor design and individual phantom power. Mic input on XLR
connector with switchable Line/Hi-Z input over TRS.
2. Display
Multi-function display that shows various information. Use the three function buttons to navigate menus.
3. Functional Buttons
By pressing the Function buttons, you can cycle through the menus and view various information.
4. Rotary control
Large stepped attenuator for Monitor, Headphone and Line output volume. Pushing-in lets you scroll between menu
entries and make adjustments.
5. Headphone outputs
Four independently assignable headphone outputs, selectable and controllable via the main rotary control or the
software Control Panel.
