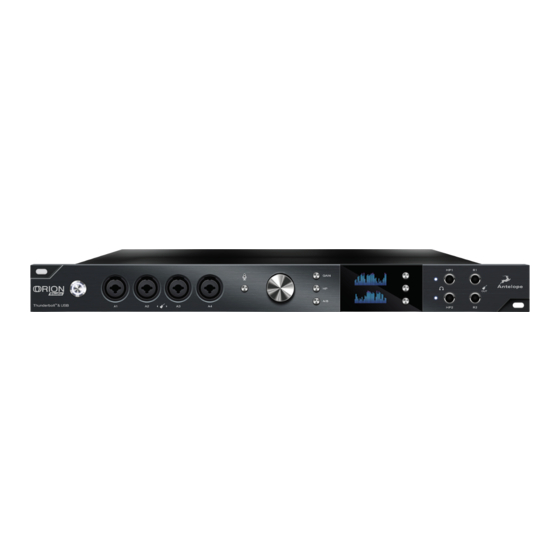

Antelope Orion Studio Owner's Manual

Thunderbolt and usb ad/da interface with 12 mic pres
Hide thumbs Also See for Orion Studio:
Table of Contents

Advertisement

Quick Links

Antelope Audio : Customer Support
UK Phone number +44 1925933423 / US Phone Number (916) 238-1643
US time: 7:00 a.m. – 6:30 p.m. (EDT), Monday – Friday / European time: 08:00 a.m. – 08:00 p.m. (GMT), Monday –
Friday
What can we help you with?
Enter your search term here...
Search
Orion Studio rev.2017 - User Manual
Modified on: Tue, 4 Sep, 2018 at 7:49 AM
https://support.antelopeaudio.com/support/solutions/articles/42000017660-orion-studio-rev-2017-user-manual
26.09.18, 10*54
Seite 1 von 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion Studio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Antelope Orion Studio

Summary of Contents for Antelope Orion Studio

  • Page 1 US time: 7:00 a.m. – 6:30 p.m. (EDT), Monday – Friday / European time: 08:00 a.m. – 08:00 p.m. (GMT), Monday – Friday What can we help you with? Enter your search term here... Search Orion Studio rev.2017 - User Manual Modified on: Tue, 4 Sep, 2018 at 7:49 AM https://support.antelopeaudio.com/support/solutions/articles/42000017660-orion-studio-rev-2017-user-manual Seite 1 von 24...
  • Page 2 Antelope Audio : Customer Support 26.09.18, 10*54 https://support.antelopeaudio.com/support/solutions/articles/42000017660-orion-studio-rev-2017-user-manual Seite 2 von 24...
  • Page 3 Thank you for purchasing the Orion Studio from Antelope Audio. Since its release in 2015 Orion Studio has become one of the biggest stars in the Antelope Audio line of ThunderboltTM & USB audio interfaces. And now we made it even better. With 12 Class A Mic Pres it’s the one and only piece of gear you’ll need to record a full band and do it like a...
  • Page 4 Antelope Audio : Customer Support 26.09.18, 10*54 mixers with on-board FPGA FX effects turn Orion Studio into a centerpiece for any studio or live show environment. Orion Studio comes with full yet ever expanding list of Antelope Vintage FX models. With 5 new compressor models you can now open up to 32 compressors at once, without losing any of your 40 EQ instances.
  • Page 5 5. The guest operating system will recognize the new output audio device (Orion Studio). 6. If you want to use the Orion Studio through USB for playback and recording, open your preferred DAW and make sure the device is selected as an input and output..
  • Page 6 Antelope Audio : Customer Support 26.09.18, 10*54 your preferred DAW and make sure the device is selected as an input and output. Note: Make sure your device has the most recent firmware installed. Check this by selecting the Options panel and clicking on the Firmware Update button. See picture: 5.
  • Page 7 2. Device Info : Displays the serial number of the device, the hardware revision and the firmware version 3. Scr Save Time : Sets the time that the screen saver will appear on the Orion Studio display. 4. Scr Save Style: Changes the style of the screen saver.
  • Page 8 10. DC Power Connection For use with Antelope’s DC power supply, only. 11. USB High-Speed Orion Studio uses USB connector Type B and operates up to 192kHz sample rate with Antelope ASIO on Windows & Mac OS X. 12. ThunderboltTM port Enables you to connect your Orion Studio to a ThunderboltTM port on a Mac computer using a ThunderboltTM cable (not included).
  • Page 9 Antelope Audio : Customer Support 26.09.18, 10*54 Assignable unbalanced stereo output (left channel at the top and right channel below). 16. S/PDIF Input/Output 75 Ω S/PDIF inputs for use with compatible equipment. 17. Word Clock Input BNC connector used to accept Word Clock reference.
  • Page 10 This dropdown menu allows you to select how the Orion Studio is to be synchronized. Select ‘Oven’ for internal sync, W.C. (Word Clock) to sync the Orion Studio to an external device through the Word Clock input, ADAT, S/PDIF for syncing with incoming digital signals, or through USB.
  • Page 11 Antelope Audio : Customer Support 26.09.18, 10*54 Orion Studio supports sample rates higher than 48kHz for ADAT. The following table show what the various options for ADAT implement in order to be consistent with the input/output of your other devices connected via ADAT.
  • Page 12 Orion Studio comes with four software low latency mixers which provide near zero latency mix and monitoring that can be distributed using the control panel. The new Orion Studio allows a low latency mix to be distributed to any output.
  • Page 13 Quick Start AuraVerb appears as a pre-fader send effect on the Orion Studio’s mixer 1. To send a signal to the reverb, turn up the send control on a mixer channel and use the reverb output level to adjust the return to the mixer’s master channel.
  • Page 14 Antelope Audio : Customer Support 26.09.18, 10*54 or dramatic timing of the piece can help set the feel of the reverb within the mix.. • Early Reflection Gain This is the linear gain value for all early reflections. These reflections are perceptually grouped with the direct sound when set at lower levels, and can nicely thicken a track when increased.
  • Page 15 Antelope Audio : Customer Support 26.09.18, 10*54 7.5. Options Tab Click on the ‘Settings’ gear icon to open the ‘Settings’ window. https://support.antelopeaudio.com/support/solutions/articles/42000017660-orion-studio-rev-2017-user-manual Seite 15 von 24...
  • Page 16 By clicking on this button the S/PDIF input is sample rate converted to match the sample rate of the Orion Studio internal clock (eg. If you want the clock to run at 192 kHz and your S/ PDIF input is at 44.1 kHz, simply press this button to match the sample rate frequency of the Orion Studio internal clock).
  • Page 17 ●● Check what clocking mode you are in. Are you receiving the clock signal from the source? ●● Check that the relevant lock light on the control panel of the Orion Studio is lit up. ●● Try a different cable and another source if available.
  • Page 18 Clock Calibration: <+/-0.001 ppm Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192 12. Contacts Having difficulties with the Discrete 8 or anything else Antelope? Get in touch with us by the following means: European Direct Support Line +44 1925933423 10:00 a.m.
