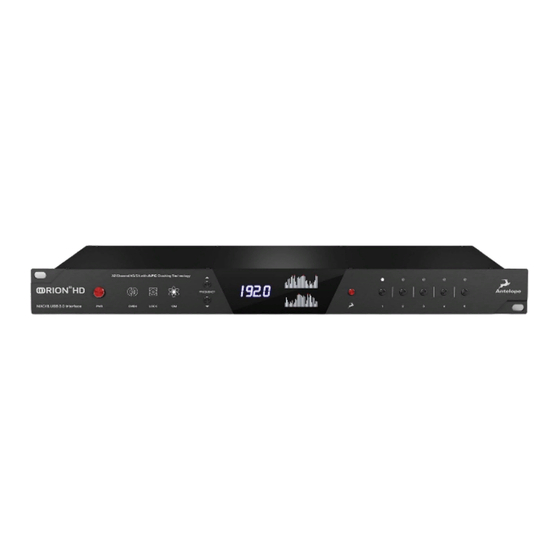

Orion32 HD | Gen 3
64-channel HDX & 32-channel USB 3.0 Audio Interface
User Manual
1. Safety Notes
To reduce the risk of electrical shocks, fire, and related hazards:
Do not remove the screws, cover, or cabinet. There are no user-serviceable parts inside.
Refer servicing to qualified service personnel.
Do not expose this device to rain, moisture or spillover of liquid of any kind.
Should any form of liquid or a foreign object enter the device, do not use it. Switch off
the device and then unplug it from the power source. Do not operate the device again
until the foreign object is removed or the liquid has completely dried and its residues fully
cleaned up. If in doubt, please consult the manufacturer.
Do not handle the power cables with wet hands!
Make sure the device is switched off when plugging/unplugging it to/from the power
source.
Avoid placing things on the cabinet or using the device in a narrow and poorly
ventilated place, which could affect its operation or the operation of other closely located
components.
If anything goes wrong, turn off the device first and then unplug the power. Do not
attempt to repair the device yourself. Consult authorized service personnel or your dealer.
Do not install near any heat sources such as radiators, stoves, or other devices
(including amplifiers) that produce heat.
Do not use harsh chemicals to clean your unit. Clean only with specialized cleaners for
electronics equipment.
Connect all your devices before powering your unit.
This unit is connected via its power cord to the mains safety earth. Never operate the unit
without this earth connection.
AC power supply cable should be routed so that it is not likely to be walked on or
squeezed by items placed upon or against it.
To completely turn off the device, unplug the power cable first from the outlet and then
from the rear panel of the unit.
Both occasional and continued exposure to high sound pressure levels from headphones and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion 32 HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Antelope Orion 32 HD

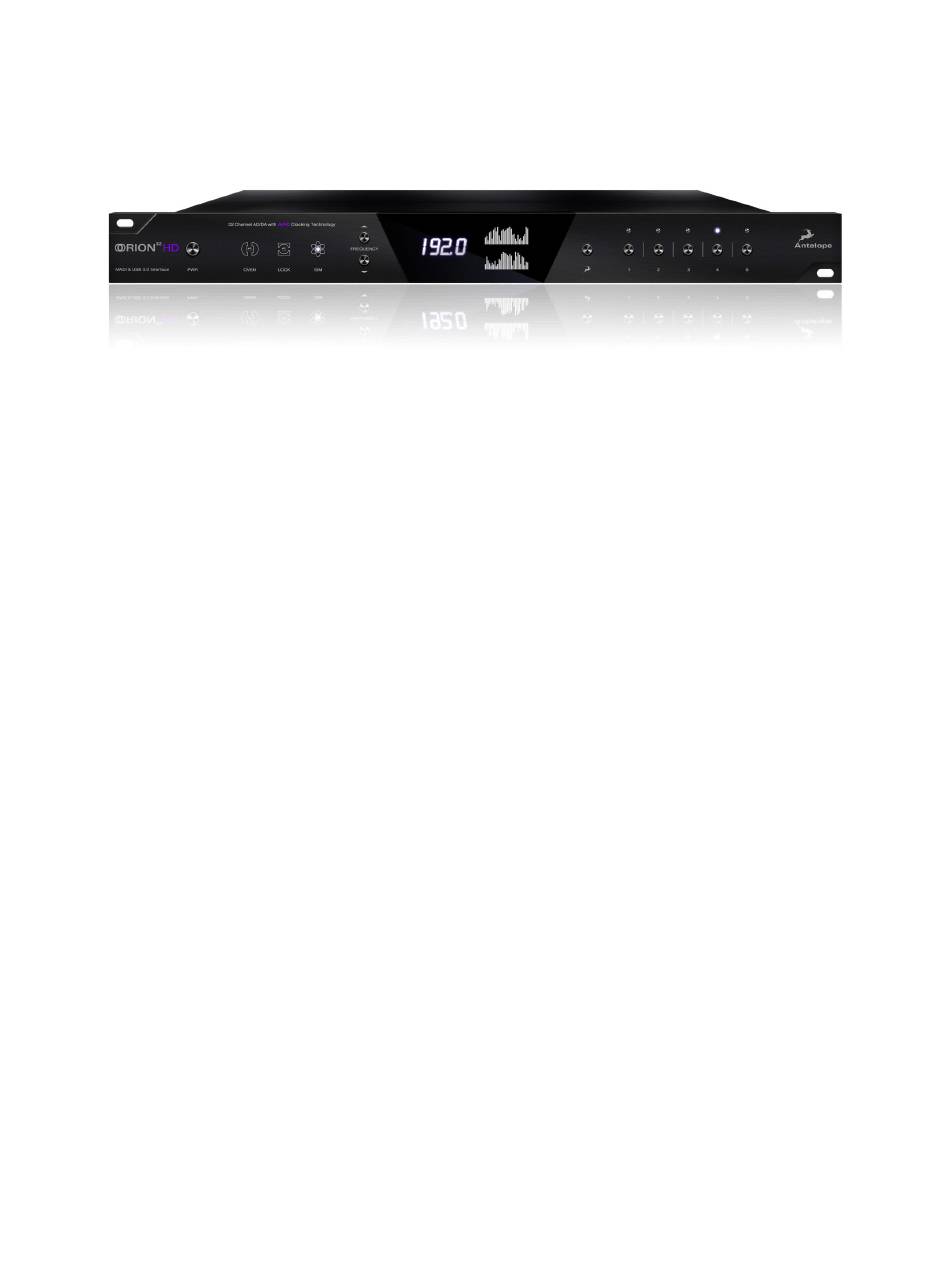

  • Page 1 Orion32 HD | Gen 3 64-channel HDX & 32-channel USB 3.0 Audio Interface User Manual 1. Safety Notes To reduce the risk of electrical shocks, fire, and related hazards: Do not remove the screws, cover, or cabinet. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
  • Page 2: Getting Started

    3. Getting Started 1. Hook up to a power source and connect the Orion 32 HD | Gen 3 to your Windows or Mac computer with an HDX or USB cable (an USB cable is included). Power on the unit.
  • Page 3: Front Panel Controls

    When lit, this indicates Orion 32 HD | Gen 3 is clocked by its own internal clock. 3. Lock light When lit, this indicates Orion 32 HD | Gen 3 is locked to the Digital input (S/PDIF, MADI, DB25). 4. Atomic Clock Lock light When lit, this indicates Orion 32 HD | Gen 3 is locked to the Antelope Audio 10M/10MX Atomic Master Clock.
  • Page 4: Rear Panel Explained

    * There's a protective film over the display, which may dim the illumination – feel free to remove it. 7. Antelope button Hold down the Antelope button to access the Control Menu *, which lets you adjust: 1. Clock Source 2. Peak Meter 3.
  • Page 5: Software Control Panel

    1 x MADI I/O Connector capable of 64 input tracks and 64 output tracks. 17. USB3 port - Type B Orion 32 HD | Gen 3 uses an USB connector Type B and operates at up to 192kHz sample rate under Windows & macOS.
  • Page 6 The Universal Panel view sits constantly on the upper half of the Control Panel, allowing for quick access to the most important features. Main view: 1. Power/Standby button 2. Meter Source Display (drop-down tab lets you select different sources to preview) 3.
  • Page 7 Presets do not store clock source info or sample rate. This allows you to adjust presets while the device is receiving clock lock. 6. Devices This dropdown menu allows you to switch between Antelope Audio devices connected to your computer or on the same network. 7. Presets 8.
  • Page 8 S/PDIF OUT - Audio to S/PDIF outs AFX IN - Audio routed to effects processing MIX CH 1 - 4 Audio routed to software mixers 1 - 4 14. Signal Meter 15. Routing Matrix Alternative View Switch 16. Undo/Redo Routing; Save/Load Set Up Files (from Routing) 17.
  • Page 9 11. Mixer 1–4 Show/Hide AuraVerb AuraVerb is a powerful and flexible algorithmic reverb effect powered by the Orion 32 HD | Gen 3 that provides near zero-latency effect monitoring without taxing your computer’s processor. AuraVerb can also be used as a hardware effect from your DAW, so you can take advantage of its rich and unique ambience effect while mixing or mastering.
  • Page 10 User Manuals for all Antelope Audio real-time FPGA effects are available here. 6.4 HDX Tab 6.5 Trim tab...
  • Page 11: Advanced User Tips

    7. Advanced User Tips Ground Loop Hum and Noise The design of Orion 32 HD | Gen 3 minimizes the possibility of ground loop hum and noise. However, we recommend the use of shorter, shielded cables and balanced connections for all the audio signals of your system.
  • Page 12 Check what clocking mode you are in. Are you receiving the clock signal from the source? • Check that the relevant lock light on the Control Panel of the Orion 32 HD | Gen 3 is lit up. • Try a different cable and another source if available.
