Connecting must be done by qualified staff. Material such as cable, connectors and distribution
boxes, fuses etc. used in the installation must comply with the respective valid low-voltage installa-
tion rules and regulations.
3.4.2
Protection cover for the terminals con-
nections
The protection cover is available in option (Order
ref. CFC-01) and avoids to do wrong hazardous
contact on the terminals 230Vac. It is mounted with
strain relief clamps for the cable.

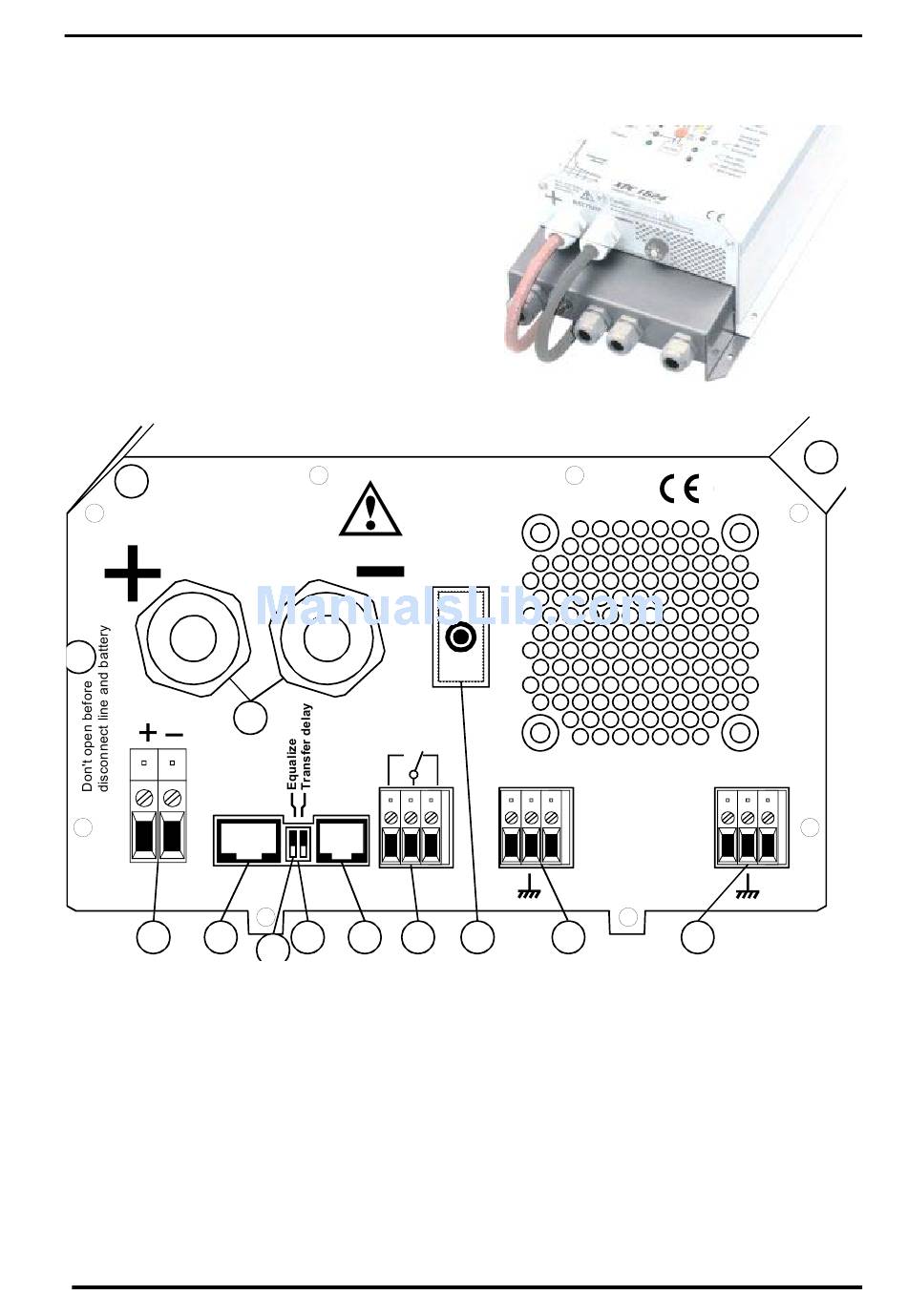

3.5 Connecting panel / Front side
M
Caution: Check battery
polarity (+/-) before connecting!
A wrong connection could
damage the system.
BATTERY
L
SOLAR
Remote
control
B
C
A
Battery +/-
B
SOLAR +/-
C
Remote contr.
D
Equalize
E
Transfer delay
F
Temp.
G
Aux. Contact
H
AC Input
J
ID Plate
K
AC Output
N
16A Protection
User manual
.
A
16A-250Vac
Temp.
sens.
E
F
G
D
Battery cable (already installed)
Connecting terminal for Solar modules
Connecting terminal for Remote Control RCC-01
Slide switch for equalization of the Battery
Slide switch for Transfer Delay
Connecting terminal for Temperature sensor CT-35
Connecting terminal for Auxiliary Contact
Connecting terminal for AC-input. Located directly above this
terminal is the automatic safety cut-out for this terminal.
Identification plate with Technical data and Serial number
Connecting terminal for AC-output
16A Protection switch for the Transfer system
XP-COMPACT V2.0 E
AC IN
N
L
N
H
XP-COMPACT
J
AC OUT
N
L
K
8
