2 Introduction

The XP-COMPACT is a sine wave inverter with integrated battery charger and solar charge con-
troller with many additional functions, it has been developed to be used as stand-alone (no grid
feeding) AC provider, or as continuous / break-free current supply provider (UPS).

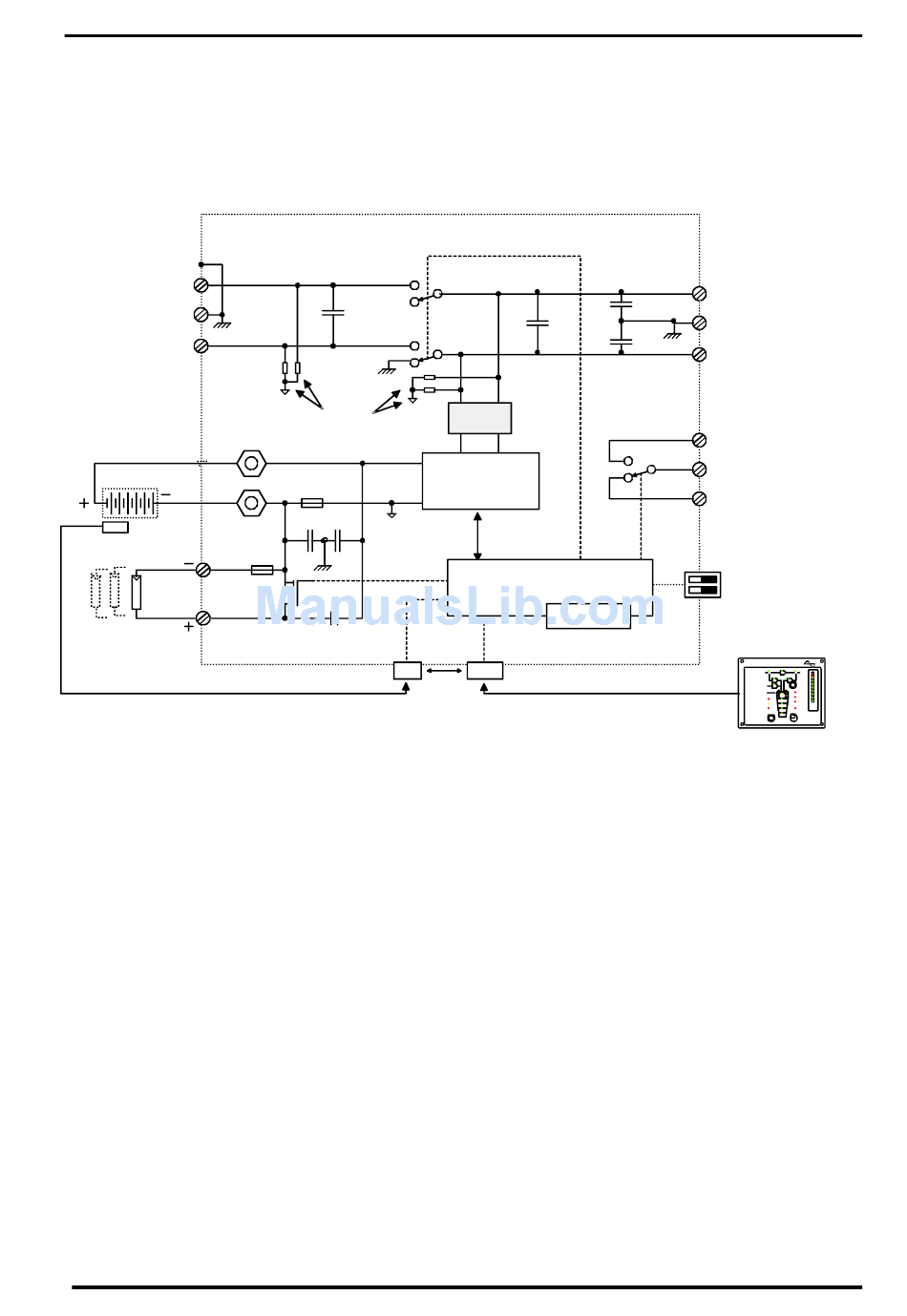

2.1 Principle schematic

AC IN
L
Input
PE
230Vac
N
Battery
BATTERY
CT35
Temp. Sensor
SOLAR
Solarmodule
Max 6m
.

2.2 Description of main functions

2.2.1

The inverter

The sinewave inverter built in the XP-COMPACT generates a sinusoidal AC voltage with an excep-
tionally precise voltage and stabilized frequency. In order to start large electric motors, the user
has the possibility to employ a short-start-power which is 3-times the nominal power of the XP-
COMPACT.
The inverter is protected against overload and short-circuits. A power stage with the latest MOS-
FET power transistors, a toroidal transformer and a fast regulating system make-up a robust and
reliable inverter with highest efficiency. A 1-20 Watt adjustable charge detection system serves to
provide the smallest energy consumption and ensures a long life for the battery.
2.2.2

The transfer system

XP-COMPACT can be connected to an AC source, for example a stand-by emergency generator
or the AC network. With the transfer system, on one side you have an alternating voltage at the
output for use by the connected consumer appliances. On the other side the batteries are charged.
The distribution of energy between the consumer appliances and battery charger is automatic.
2.2.3

The battery charger

The built-in battery charger is so designed that it can charge the battery quickly and fully. A micro-
processor controlled, 3 to 4 Step charging process ensures the optimum charging of the batteries.
The desired charging current can be set continuously from 0 to maximum, according with particular
User manual
100nF
4x2,7MΩ Filter
Inverter
150A
Charger
1uF
1uF
RJ11
6p
Temp.
XP-COMPACT V2.0 E
10nF
1uF
10nF
Microprocessor,
Control, Adjustment
Display
8p
Remote control
Max. 40m
XP-COMPACT
AC OUT
L
Output
PE
230Vac
N
AUX. CONT.
Remote control
Remote control
COMPACT INVERTER - CHARGER
RCC-01
TRANSFER
A %
AC IN AC OUT
160
130
CHARGER INVERTER
70 100
RESET
60 80
ALARM
SOLAR CHARGE
(Select)
50 60
40 40
EQUALIZE 30 20
Over Temp.
20 10
Overload
Battery 10 5
Program
Low/High Ch Inv
arg ert
Contact active
er er
Contact manual OFF
AUXILIARY (Program) CONTACT ON/ OFF (Change status)
