Quantum Scalar i500: Rackmount Kit Installation
6-01492-04 Rev A
December 2013

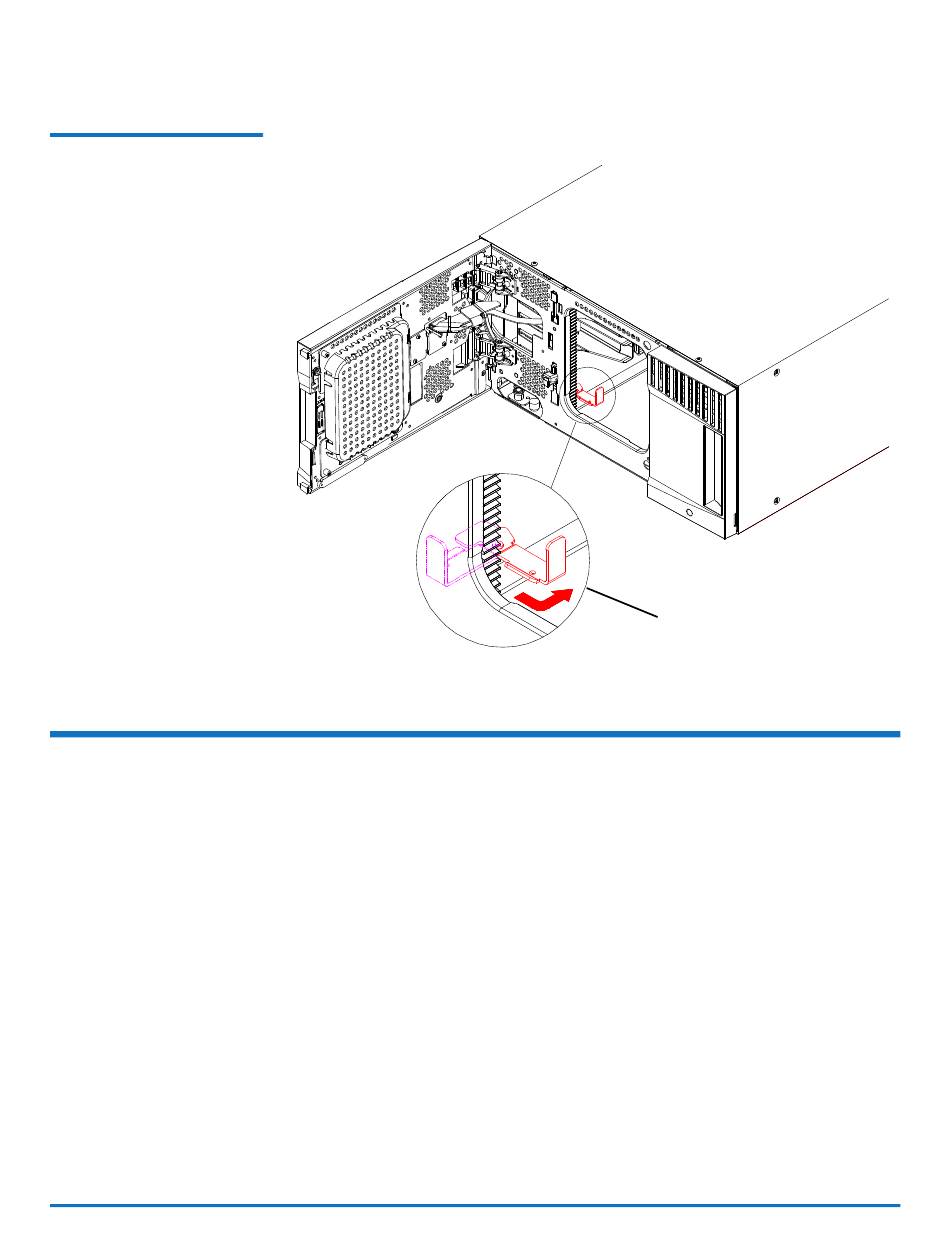

Figure 4 Parking Tab

Installing the Bottom Module in the Rack

10
d Gently lower the robot assembly to rest on the parking tab.
These instructions explain how to install the bottom module into the rack.
Required parts: Rack ears, (4) M5 thumbscrews, (4) nut clips or (4) cage nuts
Explanation of parts: Each rack ear contains two elongated holes, enabling you
to fasten it to the rack (using the M5 thumbscrews and either the nut clips or
cage nuts), using the most accessible mounting holes.
1 Place the desired module (whichever module you want to be the bottom
module of the library) onto the rackmount shelves. From the front of the
rack, lift the module onto the shelf and gently slide it into the rack. Slide the
module to the back of the rack, so that the front of the module is flush with
the mounting holes.
2 From the back of the rack, secure the module to the rackmount shelves by
tightening the two silver thumbscrews that are attached to the rear of the
rackmount shelves.
3 Determine where in the rack to install the nut clips (or cage nuts).
Parking tab in
"parked" position
Installing the Bottom Module in the Rack
