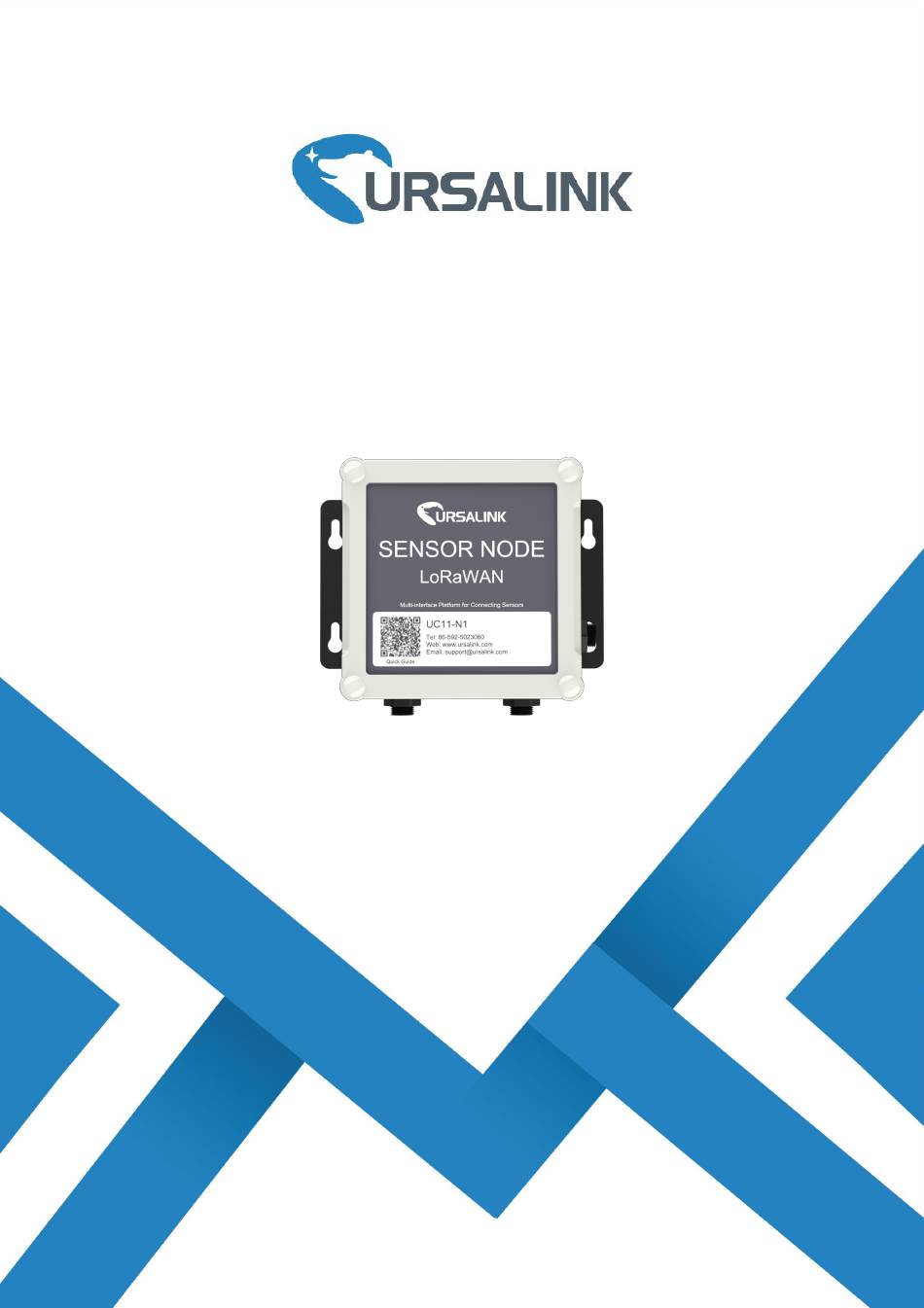

UC11-N1
Quick Start Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC11-N1 and is the answer not in the manual?

Questions and answers

Related Manuals for Ursalink UC11-N1

Summary of Contents for Ursalink UC11-N1

  • Page 1 UC11-N1 Quick Start Guide...

  • Page 2: Related Documents

    Welcome Thank you for choosing Ursalink UC11-N1. This guide describes how to install the UC11-N1 and how to connect to Ursalink Cloud. Once you complete the installation, refer to the Ursalink UC11-N1 User Manual for instructions on how to perform configurations on the device.

  • Page 3: Package Contents

    Ursalink UC11-N1 Quick Start Guide 1. Packing List Before you begin to install the UC11-N1, please check the package contents to verify that you have received the items below. 1.1 Package Contents 1 × UC11-N1 Device 2 × Data Cable 1 ×...

  • Page 4: Pole Mounting

    2.3 Turn ON/OFF UC11-N1 Place the magnet on the sign “U” to turn on/off UC11-N1. Beep 2 seconds ON, beep last 6 seconds OFF. www.ursalink.com...

  • Page 5: Getting Started

    Please connect PC USB port to micro USB port of UC3x series remote cellular I/O directly, PC Setup the Toolbox. Select Serial port and fill in the login password, default “123456”, then click “Save” ① Click “Status” to check property of UC11-N1 ② Click “General/Basic” configure the ”Reporting Interval” ③...
  • Page 6 Ursalink UC11-N1 Quick Start Guide ④ Click “General/Serial” to configure RS485 property and channel www.ursalink.com...
  • Page 7 Black (GND) Brown (V-) UC11-N1 Sensors Green (A) Green (A) Yellow (B) Blue(B) Note: The two sensor is powered up by UC11-N1, need configure “power output before collect”, default 5 seconds. ⑤Click “General/GPIO” to configure digital input and output. www.ursalink.com...
  • Page 8 Ursalink UC11-N1 Quick Start Guide ⑥Click “General/AI” to configure analog input. www.ursalink.com...
  • Page 9 Ursalink UC11-N1 Quick Start Guide 4.2 Ursalink Gateway Configuration Enable network server and mode configure as “Ursalink Cloud”. 4.3 Ursalink Cloud Configuration ① Register an account of the Ursalink cloud www.ursalink.com...
  • Page 10 Ursalink UC11-N1 Quick Start Guide ② Login Ursalink Cloud and go to “Gateway/Add” and fill in the gateway SN, click add. Go to “My Devices” click add. Fill in the SN of the UC11-N1 and select associated gateway. ③ www.ursalink.com...
  • Page 11 Ursalink UC11-N1 Quick Start Guide ④ Click to configure the UC11-N1 from Ursalink cloud, add channel for the Modbus. Note: Channel name should be same as the one configure in UC11-N1 Check the data of the sensors that connect with UC11-N1 ⑤...
  • Page 12 Ursalink UC11-N1 Quick Start Guide Note: For More details, please refer to the UC11-N1 user guide. [END] www.ursalink.com...
