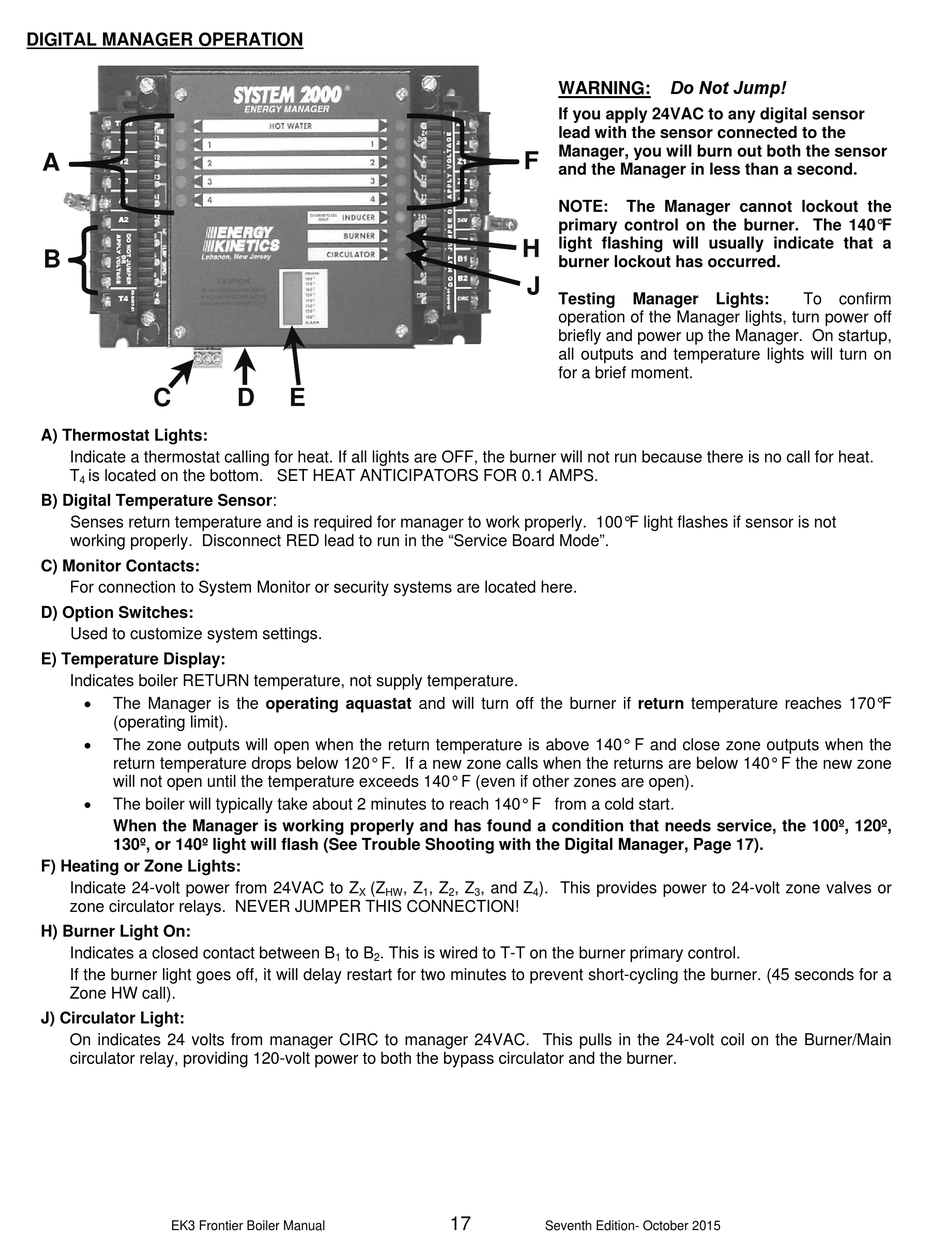

DIGITAL MANAGER OPERATION

A
B
C
A) Thermostat Lights:
Indicate a thermostat calling for heat. If all lights are OFF, the burner will not run because there is no call for heat.
T is located on the bottom. SET HEAT ANTICIPATORS FOR 0.1 AMPS.
4
B) Digital Temperature Sensor:
Senses return temperature and is required for manager to work properly. 100°F light flashes if sensor is not
working properly. Disconnect RED lead to run in the "Service Board Mode".
C) Monitor Contacts:
For connection to System Monitor or security systems are located here.
D) Option Switches:
Used to customize system settings.
E) Temperature Display:
Indicates boiler RETURN temperature, not supply temperature.

The Manager is the operating aquastat and will turn off the burner if return temperature reaches 170°F
(operating limit).

The zone outputs will open when the return temperature is above 140° F and close zone outputs when the
return temperature drops below 120° F. If a new zone calls when the returns are below 140° F the new zone
will not open until the temperature exceeds 140° F (even if other zones are open).

The boiler will typically take about 2 minutes to reach 140° F from a cold start.
When the Manager is working properly and has found a condition that needs service, the 100º, 120º,
130º, or 140º light will flash (See Trouble Shooting with the Digital Manager, Page 17).
F) Heating or Zone Lights:
Indicate 24-volt power from 24VAC to Z
zone circulator relays. NEVER JUMPER THIS CONNECTION!
H) Burner Light On:
Indicates a closed contact between B
If the burner light goes off, it will delay restart for two minutes to prevent short-cycling the burner. (45 seconds for a
Zone HW call).
J) Circulator Light:
On indicates 24 volts from manager CIRC to manager 24VAC. This pulls in the 24-volt coil on the Burner/Main
circulator relay, providing 120-volt power to both the bypass circulator and the burner.
EK3 Frontier Boiler Manual
D E
(Z , Z
X HW
to B . This is wired to T-T on the burner primary control.
1 2
WARNING:
If you apply 24VAC to any digital sensor
lead with the sensor connected to the
Manager, you will burn out both the sensor
F
and the Manager in less than a second.
NOTE:
primary control on the burner. The 140°F
light flashing will usually indicate that a
H
burner lockout has occurred.
J
Testing
operation of the Manager lights, turn power off
briefly and power up the Manager. On startup,
all outputs and temperature lights will turn on
for a brief moment.
, Z , Z , and Z ). This provides power to 24-volt zone valves or
1 2 3 4
17
Seventh Edition- October 2015
Do Not Jump!
The Manager cannot lockout the
Manager Lights: To confirm
