Danfoss APP 11 Service Manual page 4

Disassembling and Assembling, APP 11-13 and APP 16-22
Service guide |
4 | 180R9228 | 521B1181 | DKCFN.PI.013.V3.02

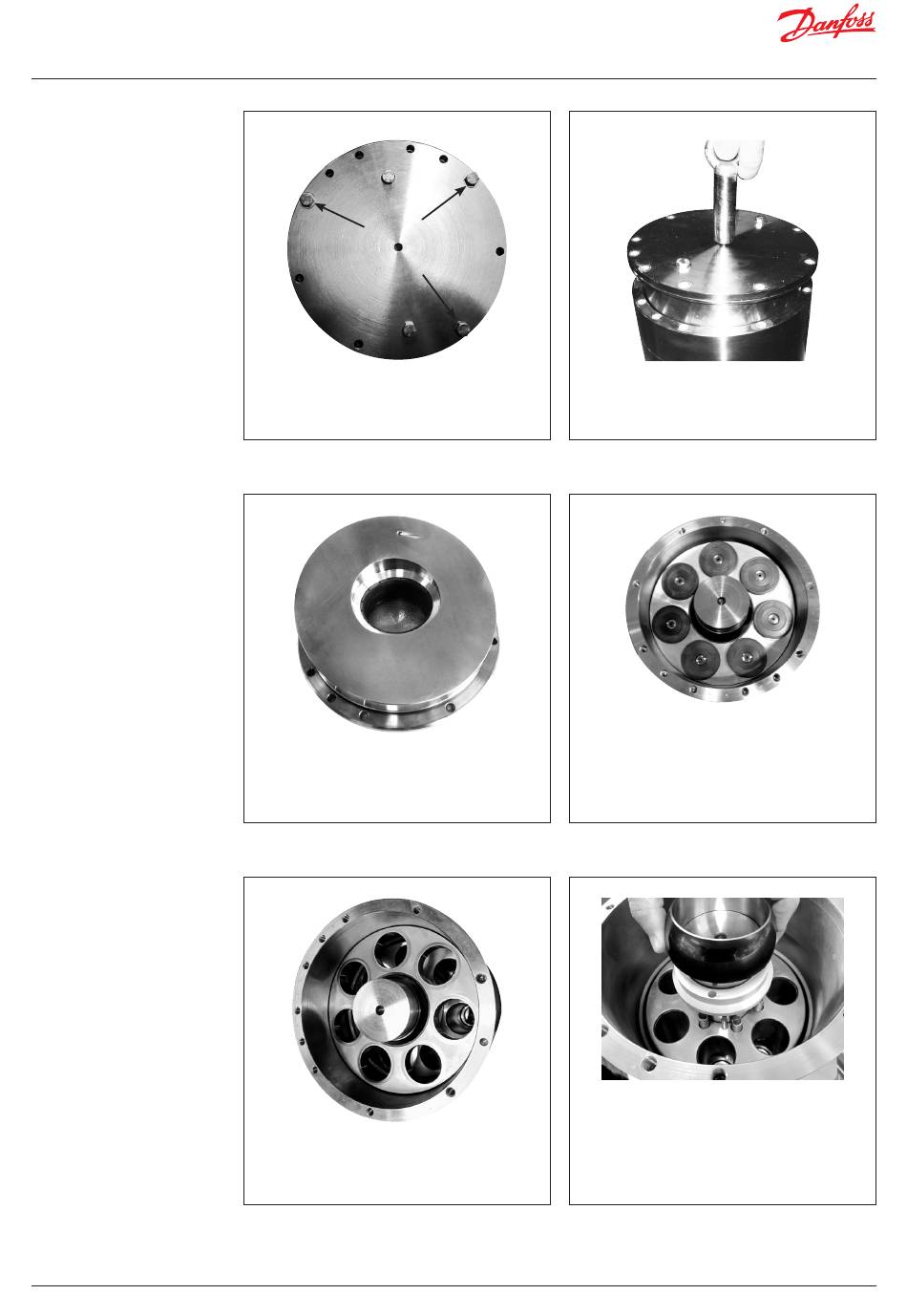

9. Unscrew the remaining three bolts. Turn
each bolt one round at the time to make
sure that the flange is removed as straight
forward as possible.
11. Swash plate must be placed so that its
surface is not scratched. For further
disassembling of swash plate, see page 11.
13. Remove the retainer plate and the retainer
ball.
Note: As the retainer ball is not attached
to the retainer plate, it might fall out.
10. Screw the eye bolt in the M8 hole in the
middle of the flange. Pull it straight
upwards.
12. Remove by hand the pistons one by one.
Be careful not to scratch the pistons. Tilt
the retainer plate to horizontal position for
easy removal of pistons, if required.
WARNING:
Do not use any tools.
14. Remove the retainer guide, the 4 springs
and the spring guide.
