Danfoss APP 11 Service Manual page 14

Disassembling and Assembling, APP 11-13 and APP 16-22
Service guide |
14 | 180R9228 | 521B1181 | DKCFN.PI.013.V3.02

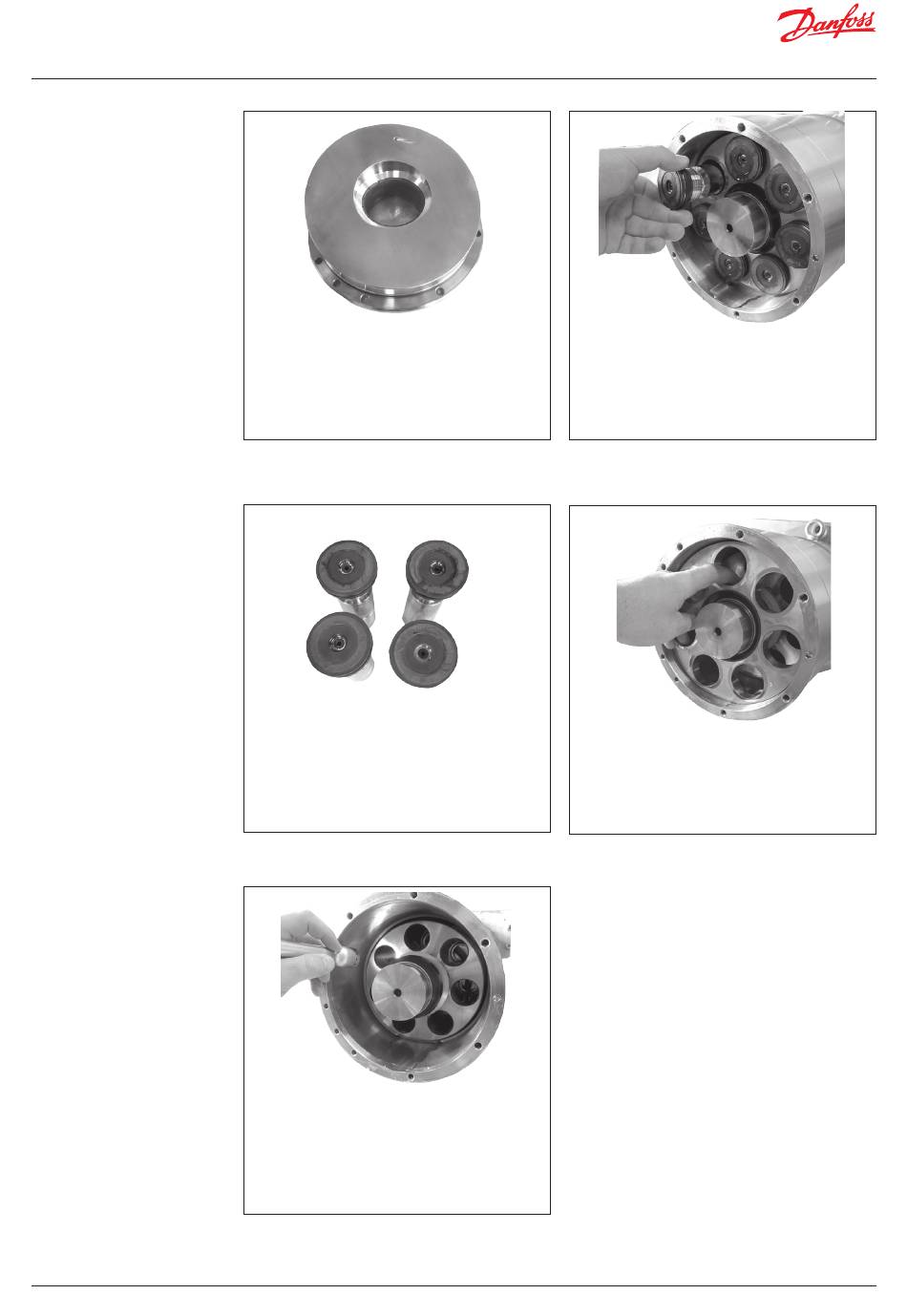

5. Place the swash plate upside down to
avoid scratches on the surface.
7. It is recommended to place the pistons
upside down on an even clean base/
surface.
Warning: Ensure that the piston shoes
and piston surfaces are not damaged or
scratched during removal.
9. Inspect the piston bushings in the cylinder
barrel for scratches or othe damages.
Small scratches are accepted if there are
no hard particles in the bushings.
If any worn pistons are found, all pistons must
be replaced. See page 17.
6. Carefully remove the pistons one by one.
8. Remove the retainer plate.
