Disassembling and Assembling, APP 11-13 and APP 16-22

Service guide |

16 | 180R9228 | 521B1181 | DKCFN.PI.013.V3.02

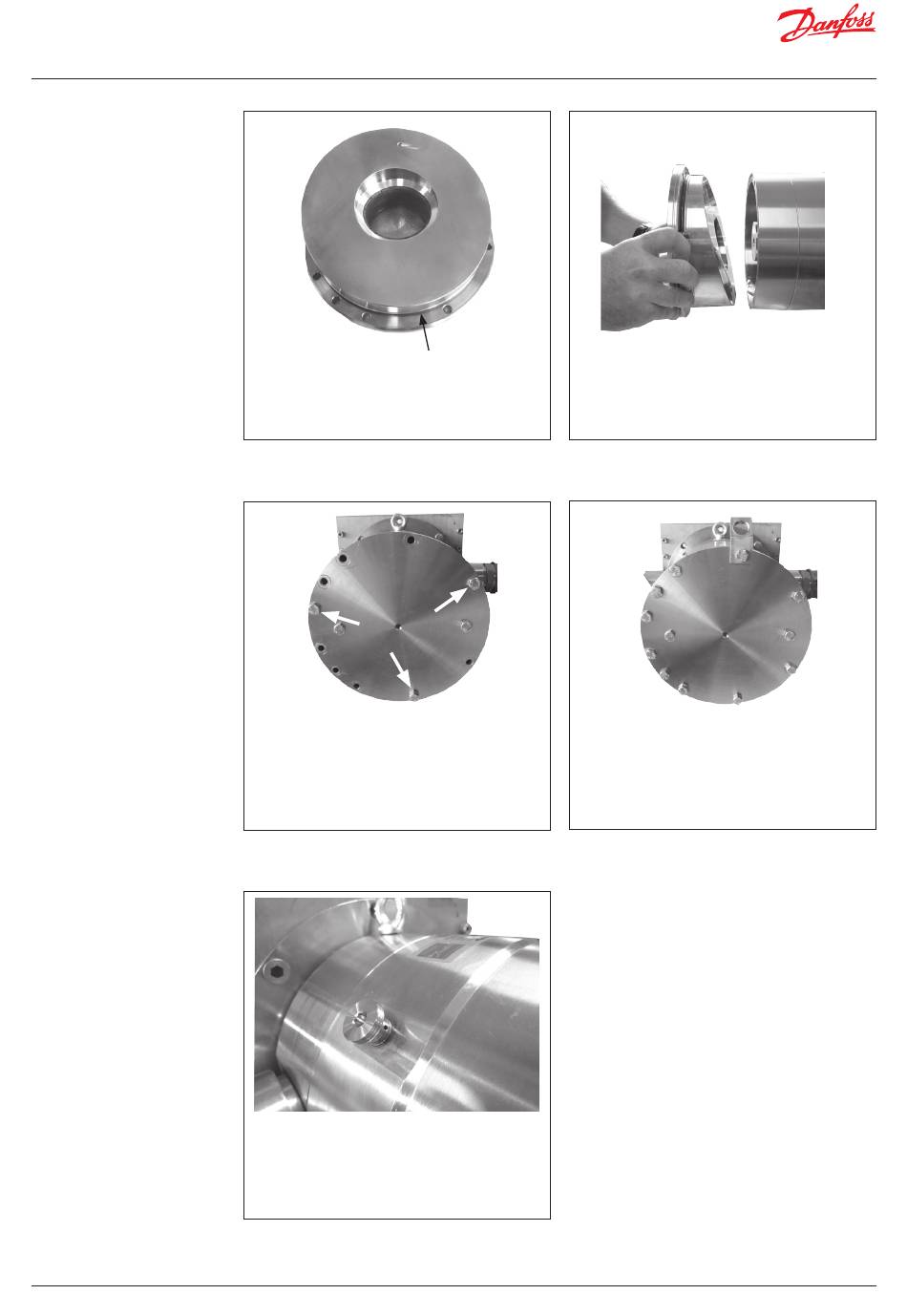

5. Replace the O-ring on mounting flange.

7. Mount the 3 screws as shown below. Turn

each screw a couple of rounds at the time,

to ensure the swash plate is pulled as

straight forward as possible.

Note: Be careful not to squeeze/damage

the O-ring.

9. Connect the pump to the rest of the

system. Bleed the pump.

Follow the start-up procedures, see

instruction 180R9223.

6. Carefully insert the swash plate into the

housing.

8. Insert the remaining screws and cross

tighten them according to exploded view.
