Service guide | Disassembling and Assembling, APP 11-13 and APP 16-22
8.

Assembling

© Danfoss | DCS (im) | 2017.06
Important: It is essential that the pump is
serviced in conditions of absolute
cleanliness.
All parts must be absolute clean before
mounting

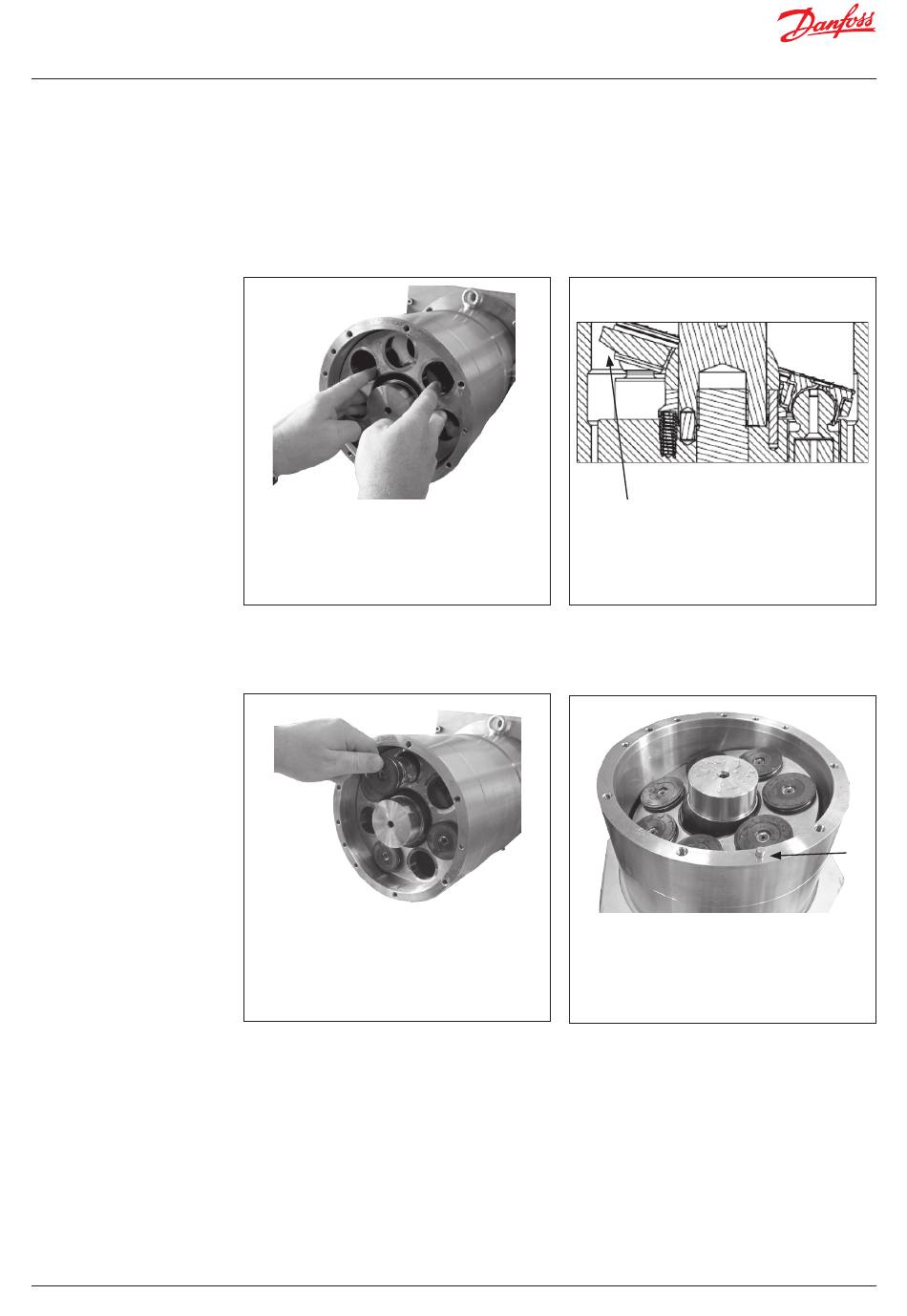

1. Carefully push the retainer plate in place.
3. Insert all the pistons randomly.
2. Ensure that the retainer plate is oriented
correctly with its slant surfaces pointing
downwards.
4. Tilt the retainer plate for easy insert of the
swash plate. Place the pin in the housing.
