Out 3: Xlr Direct Drive - Octave Phono Module Manual

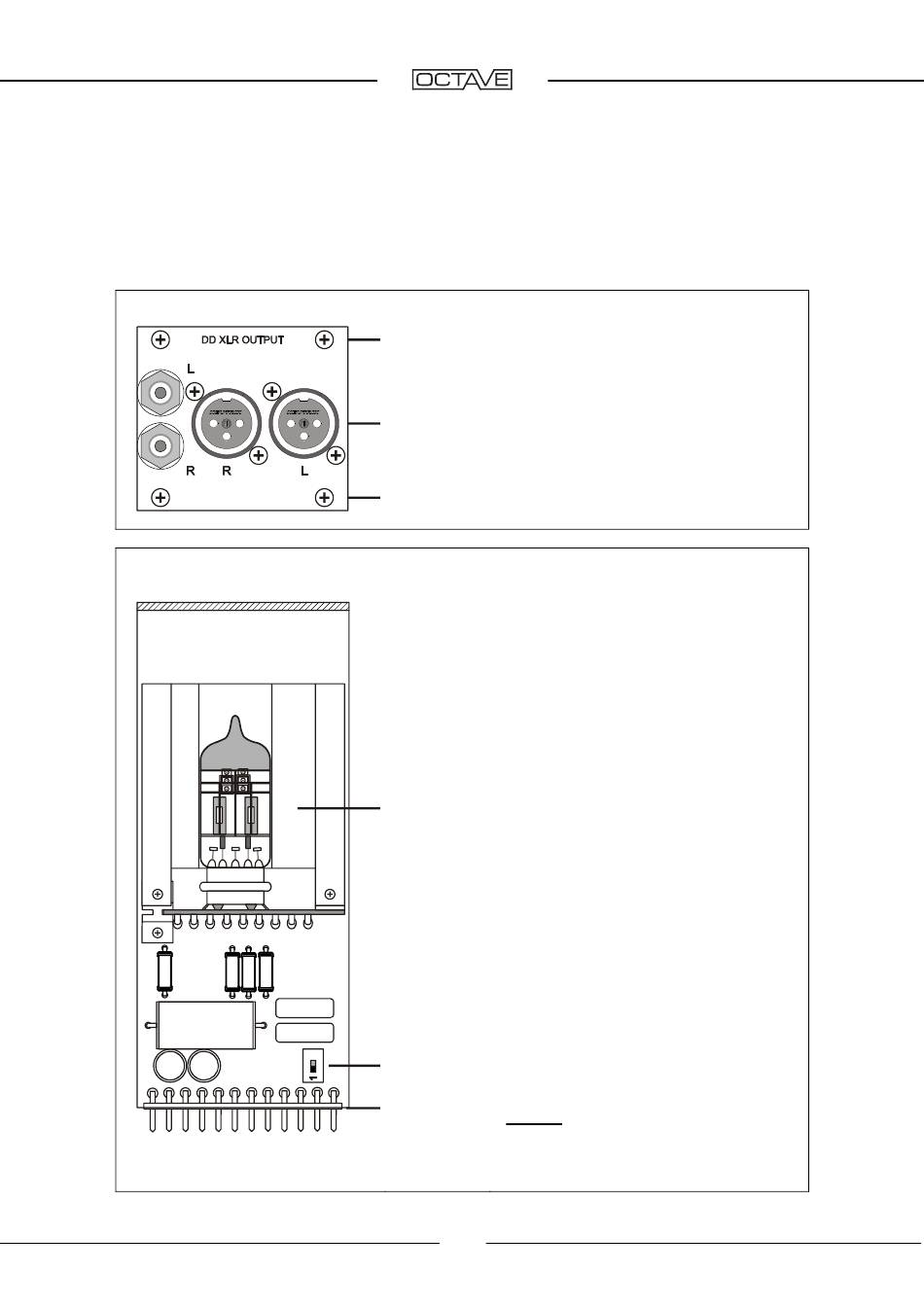

6.3. Output OUT 3: XLR Direct Drive (DD)
Rear View
Top View
Rear Panel
6. OUTPUTS
2 Mounting Size M3 x 8 cross slot,
Screws Phillips Nr 1 screwdriver
Regulated Balanced Output Right - Left
Connecting
FIX (RCA)-Output Right - Left
Field
Right Channel: red; Left Channel: white
see above.
2 Mounting
Screws
Amplification Tube: only in the signal path
Tube
of the regulated XLR Output.
6N1
Type : 6N6P, 6N23, 6922, ECC 88
Sliding Switch to toggle between the FIX
and Regulated function of the Balanced
Output. The FIX RCA Output is not af-
fected by this switch.
Sliding
Position 1: Variable output level
Switch-
Position 2: FIX output level
Function
Advice: Changing the Function during
Pin Con-
Operation is not recommended. Please
nector for
turn OFF the mains before switching
Screw Ter-
the Function Switch.
minal 4
36
