6.2. Output OUT 2: RCA Direct Drive (DD)

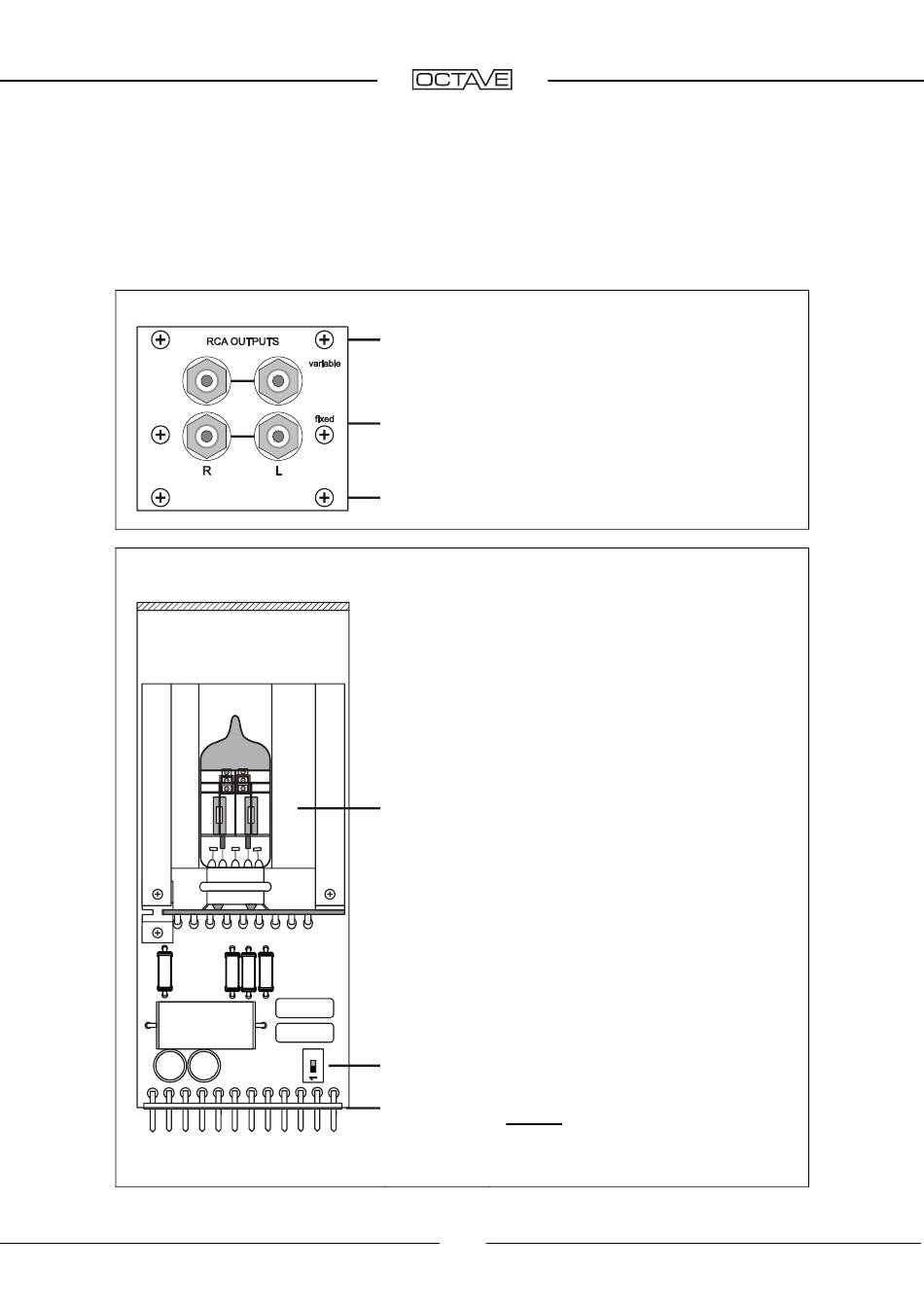

Rear view
Top view
Rear Panel
6. OUTPUTS
2 Mounting Size M3 x 8 cross slot,
Screws Phillips Nr 1 screwdriver
Upper Pair: Regulated RCA-Outputs.
Connecting Lower Pair: Fix Level Line-RCA-Outputs.
Field Right Channel: red; Left Channel: white
2 Mounting
see above
Screws
Amplification Tube: only in the signal path
Tube
of the regulated Output.
6N1
Type : 6n6P, 6N23, 6922, ECC 88
Gain Switch for the gain factor of the
regulated Output:
Position 1: Gain = 0 dB
Position 2: Gain = + 14 dB
The Level of the Regulated Out is identi-
Gain-
cal to the Level of the FIX Output in Posi-
Switch
tion 1. Position 2 increases the level to
values required for driving an power am-
Pin Con-
plifier directly.
nector for
Advice: Changing the Gain during Op-
Screw Ter-
eration is not recommended. Please
minal 4
turn OFF the mains power before
switching the Gain.
