5.1. Input IN 1: MM RCA
Specifications
Sensitivity
Input Impedance
Gain Factor
Signal to Noise Ratio

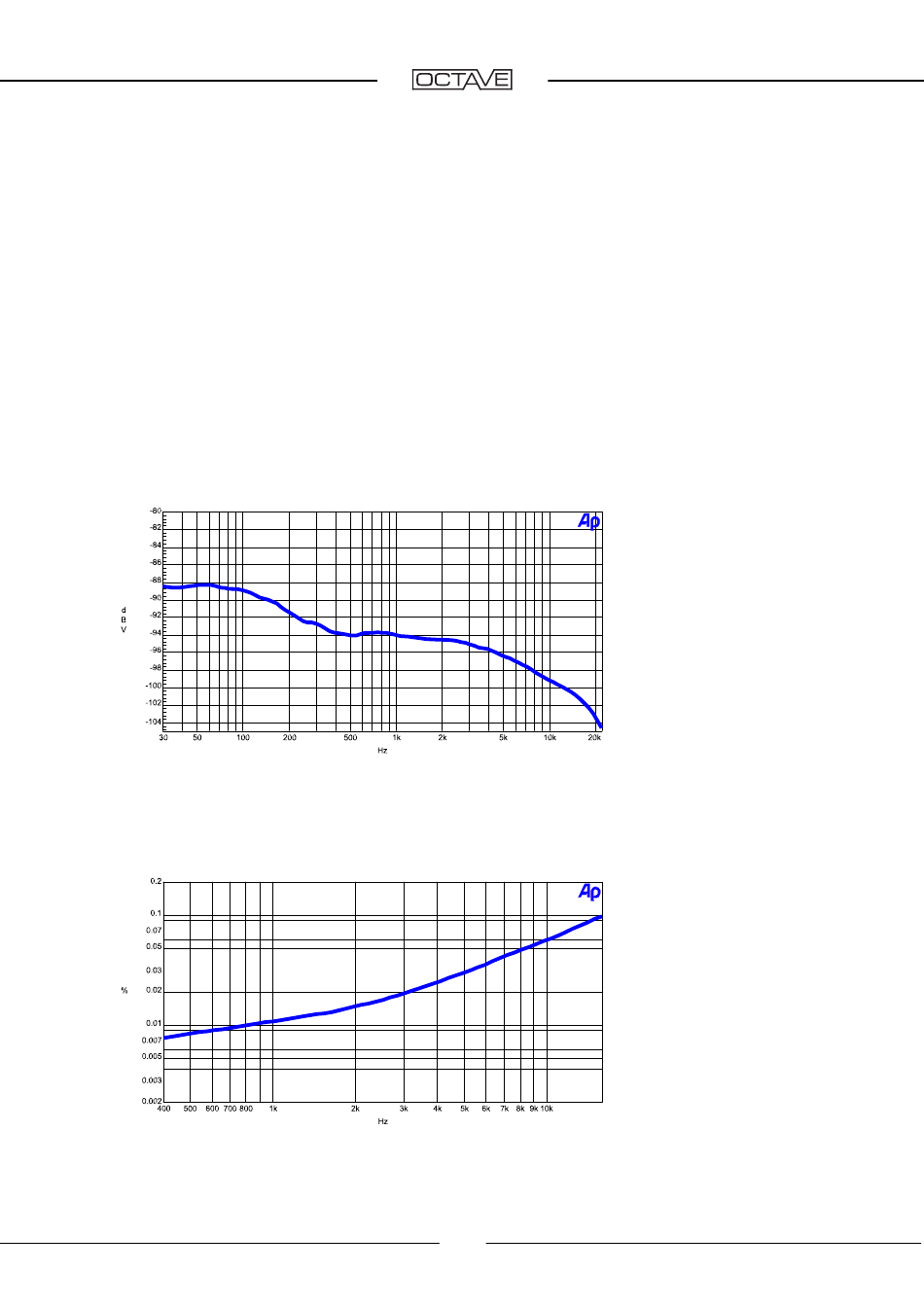

Static Noise Level MM-Input
Reading on the FIX Output
THD + Noise in the Range of 400 Hz - 20 kHz
Reading on the FIX Output, Output Voltage 1 V RMS
5. INPUTS
3 - 5 mV
1 kOhm / 47 kOhm / 220 pF
38 dB
- 94 dB / 1 kHz Bandpass Measurement
21
