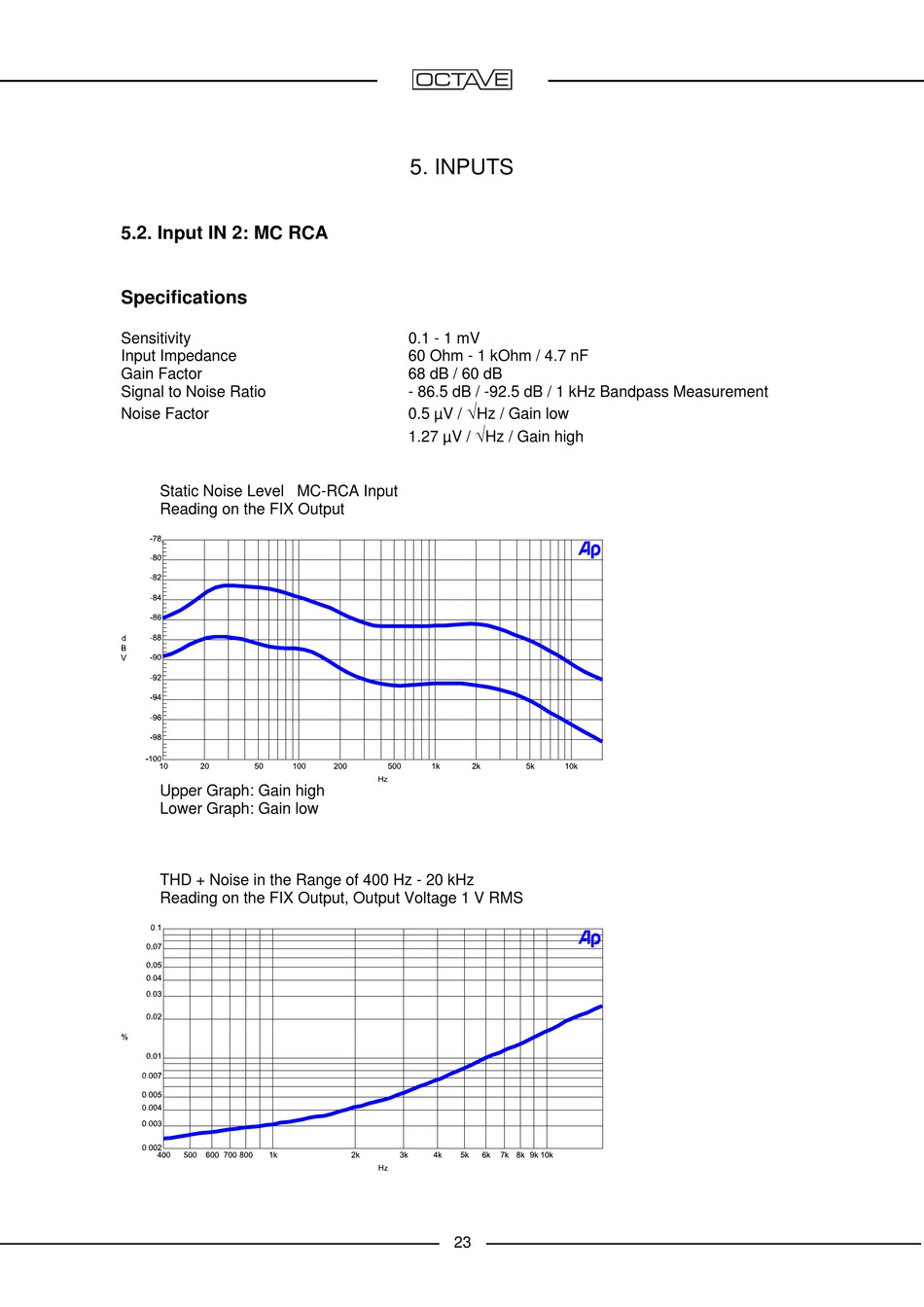

5.2. Input IN 2: MC RCA
Specifications
Sensitivity
Input Impedance
Gain Factor
Signal to Noise Ratio
Noise Factor
Static Noise Level MC-RCA Input
Reading on the FIX Output
Upper Graph: Gain high
Lower Graph: Gain low
THD + Noise in the Range of 400 Hz - 20 kHz
Reading on the FIX Output, Output Voltage 1 V RMS
5. INPUTS
0.1 - 1 mV
60 Ohm - 1 kOhm / 4.7 nF
68 dB / 60 dB
- 86.5 dB / -92.5 dB / 1 kHz Bandpass Measurement

0.5 µV / Hz / Gain low

1.27 µV / Hz / Gain high
