  • Page 1 V 80 SE Owner's Manual English...

  • Page 2: Introduction

    INTRODUCTION Congratulations and thank you for choosing OCTAVE! V 80 SE You are now the owner of one of the world's most innovative and reliable amplifiers. Look after it, and it will provide you many years of listening pleasure. You often hear people claim that tube amplifier design has not progressed for years.

  • Page 3: Table Of Contents

    3.4. Switching on for the first time: the soft-start feature ........3.5. Checking the power tubes – setting the bias ..........3.6. Connecting other components to the V 80 SE ..........3.7. Connection possibilities: overview ..............OPERATION 4.1. V 80 SE front panel ..................
  • Page 4 Using the V 80 SE as a 2-channel power amplifier with an external preamp ............... 7.2.3. Using the V 80 SE in bi-amped systems – application 1 The V 80 SE as an independently adjustable power amplifier ..... 7.3. Adjustable preamplifier output: pre out ..............

  • Page 5: Description V 80 Se

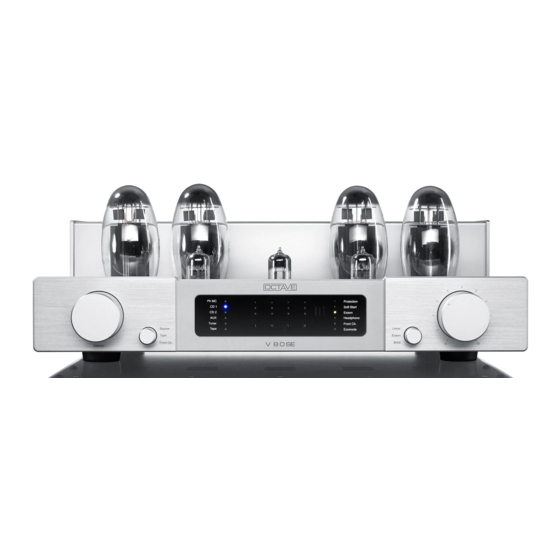

    1. DESCRIPTION V 80 SE The V 80 SE is a totally new design. It has been developed for music lovers who do not have the space for large pre- and power amps. The V 80 SE is guaranteed to provide the same sonic experience as separates.
  • Page 6 30 W compared with 180 W during normal operation and improves passive safety. When it detects a signal, the V 80 SE activates automatically and is ready for use again within 30 seconds. Adjustable pre-out for subwoofer, etc.

  • Page 7: Safety Instructions

    Defective fuses should also only be replaced by a qualified technician. Always replace fuses with ones of the same type and rating. If your amplifier requires servicing, please ship or take your equipment directly to OCTAVE or to one of our authorized service centers.

  • Page 8: Before Connecting

    2.2. Placement 2.2.1. Location OCTAVE equipment is designed strictly for use in a dry domestic environment. Do not use it in  open air or in damp environments! Never place plants or liquid-filled containers on your amplifier. Take care that objects do not ...

  • Page 9: Unpacking, Scope Of Delivery

    3. GETTING STARTED 3.1. Unpack and check the contents of the box. Scope of delivery  V 80 SE  4 power tubes with tube layout diagram  Power cord (3-core cable with 3-pin plug)  Remote control  2 screwdrivers:...

  • Page 10: Removing The Grille

    3. GETTING STARTED 3.2. Removing the grille For your own safety, make sure that the amplifier is not connected to a wall outlet.  Completely remove the four hexagonal screws using the Allan key supplied. There are two  screws on each side. Carefully pull the grille upward to remove.

  • Page 11: Installing The Power Tubes

    3. GETTING STARTED 3.3. Installing the power tubes Insert the power tubes into their sockets as shown on the tube layout. Ensure that you correctly locate the anti-rotation lug on each of the tubes. Anti-rotation recess on the tube socket...

  • Page 12: Switching On For The First Time: The Soft-Start Feature

    (On new units, both of these switches are set to "off" at the factory). Now switch the V 80 SE on using the amplifier’s power on/off switch. 2 or 4 LEDs will illuminate, depending on the position of the switch. The soft-start LED will illumi- nate.

  • Page 13: Checking The Power Tubes - Setting The Bias

    Check that the switch positions on the front and rear of the amplifier are in their recommended settings. Switch the V 80 SE on using the on/off switch and wait until the soft-start LED extin- guishes. You can now play some music.

  • Page 14: Connection Possibilities: Overview

    3. GETTING STARTED 3.7. Connection possibilities: overview...

  • Page 15: Operation

    (see Chap. 6.6.)   Front Ch. Multichannel bypass mode. Tape and inputs selected with are switched off. In this mode, the V 80 SE functions as a two- channel power amplifier. The volume control is bypassed. (See Chapter 6.7) ...
  • Page 16 4. OPERATION Legend  Remote control receiver To ensure optimum operation of the IR remote control, do not cover this window.  Protection Red LED lights up when the electronic protection Status indicators system has switched the amplifier off in response to an amplifier fault.

  • Page 17: Connections

    6. CONNECTIONS 6.1. V 80 SE rear panel Legend Headphone A: Switch left: speaker playback B: Switch centre: speaker and headphone playback C: Switch right: headphone playback, tube power amplifier is switched off. (See Chap. 7.4.) A: Switch left: Ecomode switched on...
  • Page 18 6.3 mm stereo jack socket for headphones with an impedance of Headphone between 30 and 2000 ohms (See Chapter 7.5) Sliding switch to adjust the output power of the V 80 SE. Power Selector (See Chapter 7.6.) The Black Box is an outboard power supply upgrade for the...

  • Page 19: Recommended Settings

    6. RECOMMENDED SETTINGS 6.1. Phono (MM) or optional MC playback Rear panel connections Headphone [10] switch left = off; Ecomode [11] switch right = off; Turntable ground lead (if present) to GND socket [17]; RCA cable from turntable to Phono [17] (left channel: white, right channel: red) Speaker cables and power cable are connected to [23] + [27] Front panel switch settings...

  • Page 20: Line Playback Such As Cd1, Cd2, Aux, Tuner

    6. RECOMMENDED SETTINGS 6.2. Line playback such as CD 1, CD 2, AUX, Tuner Rear panel connections Headphone [10] switch left = off; Ecomode [11] switch right = off. Connect XLR cable from CD player to XLR input [22]. (You might need to push the locking lever down to plug the XLR in. You will certainly need to push the locking lever down to remove the XLR.) Speaker cables and power cable are connected to [23] + [27].

  • Page 21: Tape Playback And Record

    6. RECOMMENDED SETTINGS 6.3. Tape playback and record Rear panel connections Headphone [10] switch left = off, Ecomode [11] switch right = off. Connect the tape recorder output (Line Out) to Tape Play [19]. Connect the tape recorder input (Line In) to Tape Rec [16] (left channel: white, right channel: red). Speaker cables and power cable are connected to [23] + [27].

  • Page 22: Front Channel Replay (Multichannel)

    LEDs illuminated in [4]. The Front Ch LED illuminates in [7]. Mode selector [8] on Linear. This mode bypasses the V 80 SE's volume control. The volume of a multichannel system is normally controlled digitally by the receiver/processor preamplifier. Please ensure therefore that your multichannel unit is switched on and that its volume setting is not too high when you activate the "Front Channel"...

  • Page 23: Linear Mode

    In Linear mode, the power amplifier section of the V 80 SE is connected to the internal preamplifier and to the input selector switch. This is the V 80 SE's normal operating mode – as an integrated amplifier. The mode selector [8] must be on Linear.

  • Page 24: Inserting An External Equalizer

    Connect the preamplifier to Master In, with the mode selector knob [8] in the Extern position. In this mode, you retain the use of the V 80 SE's volume control. When using this option, you should generally set the volume control on the V 80 SE to maximum and adjust the volume with the external preamplifier.

  • Page 25: Adjustable Preamplifier Output: Pre Out

    Pre Out may prove to be a problem. The best way to deal with this is to make sure you switch the V 80 SE on before the external power amplifier and then switch the units off in reverse order.

  • Page 26: Ecomode: Soft-Start And Reduced Power Consumption Mode

    V 80 SE is ready for use. Note: If you switch the V 80 SE on with Ecomode active, it will go through the restart procedure. If it fails to detect a music signal, it will shut down after 10 minutes.

  • Page 27: Headphone/Speaker Operation

    7. ADVANCED FUNCTIONS As well as saving electricity, Ecomode has a number of other advantages. longer tube life  reduced heating of the whole unit  increased passive safety if the unit is left on by mistake  Ecomode is not the same as standby, however, because certain sections of the amplifier remain the tape loop (you can still make recordings, as described in Chapter 6.6) ...

  • Page 28: Advanced Functions

    A or B to start the tube power amplifier up and listen to your loudspeakers. Note 2 If you try to use the on/off switch to switch the V 80 SE on when the headphone switch in position C (headphones only) and the Ecomode switch in position B (Ecomode ON), the tube power amplifier section will not power up.

  • Page 29: Power Selector: Alternative Output Tubes

    The Power Selector allows adjusting the V 80 SE in accordance to the output tubes. Position HIGH is reserved for the standard KT150 tubes as well as the KT120. In the HIGH Position the V 80 SE is able to deliver up to 2 x 130 W RMS Output Power. The slightly weaker tubes type KT 88 or 6550 can be used in the position LOW.

  • Page 30: Tubes

    Note: Low Power tubes will not allow you to achieve the maximum output of the V 80 SE. We do not recommend using them in the V 80 SE Some tubes will fit into the sockets but will still not work with the V 80 SE – the EL 509 / 519, for example.

  • Page 31: Bias Measurement System

    That is why we have built this bias measurement facility into the V 80 SE – to allow you, the user, to carry out the adjustment yourself without the need for test equipment. The use of precision op amps makes it possible for you to set the bias to an accuracy of 0.3%, making it superior to any...
  • Page 32 8. TUBES There is an upper adjustment limit to the "high" bias setting, which is indicated by the green and red LEDs lighting up at the same time, and a lower limit to the "low setting, where the yellow and green LEDs light up.

  • Page 33: Replacing Tubes

    You should adjust these tubes after about 20 minutes. 8.5. Running in tubes All OCTAVE equipment is subject to a 48-hour soak test at the factory to burn in the tubes. The tubes are preselected for use in each particular model.

  • Page 34: Protection System

     Once the protection system has cut in, the only way you can turn the V 80 SE back on is to turn the on/off switch off and then on again. Allow the unit two minutes to cool down before switching it back on.

  • Page 35: Remote Control

    11. OPTION PHONO MC / MM A phono MM or MC board is available as an option for the V 80 SE. This additional board is connected internally to the phono input. When the board is installed, this input can no longer be used as a line level input.

  • Page 36: Option Black Box And Super Black Box

    OCTAVE, with the Black Box technology, offers an instrument to optimizing the OCTAVE amplifier in respect to the speaker. This flexibility is a unique feature of the OCTAVE brand. The dynamic and tonal stability of an amplifier is strongly dependent upon the stability and capacity of the power supply, therefore the Black Box and Super Black Box were developed as external upgrades to the OCTAVE amplifiers’...

  • Page 37: The Super Black Box Option

    V 80 SE is powered down with Ecomode on. The Super Black Box is equipped with a rapid discharge circuit, which discharges the unit's electrolytic. The yellow LED indicates that this procedure is taking place.

  • Page 38: Troubleshooting

    DACs. Although the V 80 SE is grounded, its signal ground is a "floating" ground, which means that the V 80 SE cannot create ground loops itself. Hum can only be caused when it is connected to other items of equipment.

  • Page 39: Mains Interference

    To reduce this kind of interference, move the transformer/component or the affected component/cable to a different location. The transformer in the V 80 SE will not generate interference, as it is electromagnetically shielded and has a very low stray field.

  • Page 40: Faults Caused By Tubes

    13.2. Faults caused by tubes, faulty tubes Like other OCTAVE products, the V 80 SE is equipped with a double safety system. This means that the amplifier will be protected from damage if a component (tube) should fail and trip the electronic protection.

  • Page 41: Tube Faults That Trip The Protection System

    "front" the particular tube is, the more it will tend to make itself felt. In the V 80 SE, this would be tube V 6. As it is rare for both systems in a double triode to be equally affected, the noise levels in each stereo channel will be different.

  • Page 42: Technical Data

    1 x Tape Record (RCA) 1 x Headphone output 1 x Loudspeaker output The pre- and power amplifier sections of the V 80 SE can be operated independently from each other as well +6 dB relative to RCA XLR Sensitivity...

  • Page 43: Dimensions

    14. TECHNICAL DATA Option Phono MC 500 ohms, MM 47 k ohms Input impedance MC 75 dB, MM 90 dB Signal-to-noise ratio MC 0.5 mV, MM 4 mV Input sensitivity -12 dB/oct., 20 Hz roll off frequency Subsonic filter Option Black Box 185 x 98 x 300 mm (W x H x D) Dimensions 2.5 kg...

  • Page 44: Diagrams

    Bias adjusted correctly Curve 2: Bias 10% out Curve 3: Bias 30% out Graph 2: Frequency response, 4 V into 4 ohms The Frequency response curve clearly shows the low frequency extension of the V 80 SE (flat to below 10 Hz).
  • Page 45 14. TECHNICAL DATA Graph 3: Distortion spectrum -100 -120 -140 -160 -180 Noise spectrum at 1 kHz / 5 W into 4 ohms – there is no mains-generated interference to be seen. (50, 100 Hz) The k2, k3, k4 and k5 noise spectrum is extremely low and falls quickly.

  • Page 46: Frequently Asked Questions (Faq)

    Does the V 80 SE have to have all of its tubes fitted? In principle, the V 80 SE will also operate without tubes. It is sometimes useful to do this when testing the operation of the switching functions such as the selector switch, remote control, etc.
  • Page 48 We reserve the right to alter and improve the specifications in pursuit of better. OCTAVE logo is a registered trade mark of Andreas Hofmann. Copyright by Andreas Hofmann. Reproduction in whole or part is prohibited. edited OCTAVE AUDIO Germany www.octave.de...
