6. Install one side of the front tie bracket (Part #25991)
into the side panel opening in one of the transmit-
ters. Insert the screws, but do not tighten them
completely at this point.
7. Remove the four cap screws from the adjacent rear
panels, and then use them to attach the rear tie
bracket. Do not tighten the screws completely.
8. After front and rear tie brackets are installed, place
the transmitters on a flat surface so the that the
front panels are even with each other. Hold the
transmitters in place and tighten all cap screws on
the front and rear brackets.
Rio Rancho, NM

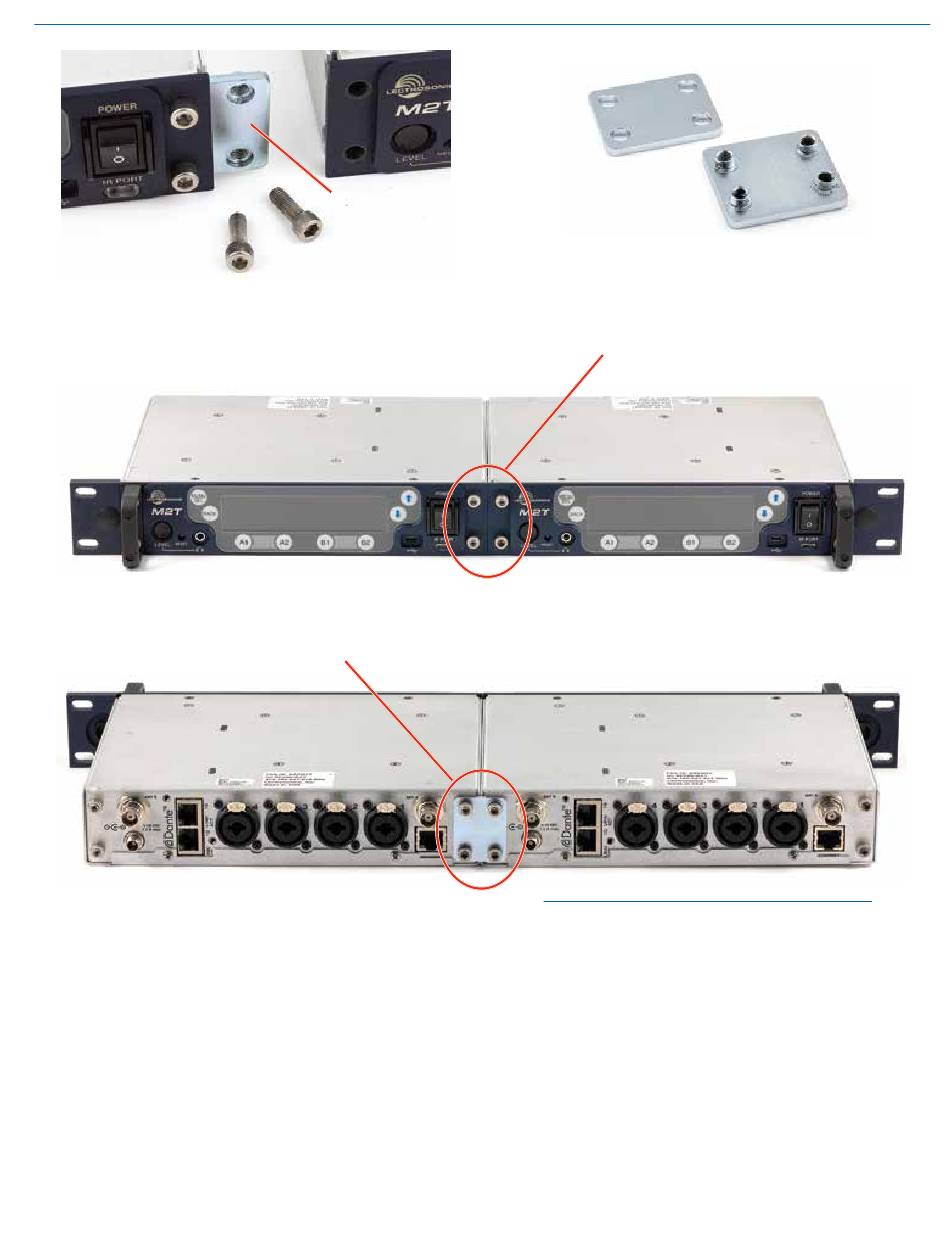

Tensioning lock
nuts on the rear
side of the bracket
Digital IEM Transmitter
Rear tie bracket
Front tie bracket
(Part #25991)
Slide the other transmitter over the tie bracket and
insert the screws, but do not tighten them complete-
ly until the rear tie bracket is installed.
NOTE: If the supplied rubber feet are installed on
under side of M2T, it will not fit in a rack unless
there is an empty space below it.
(Part #25990)
15
