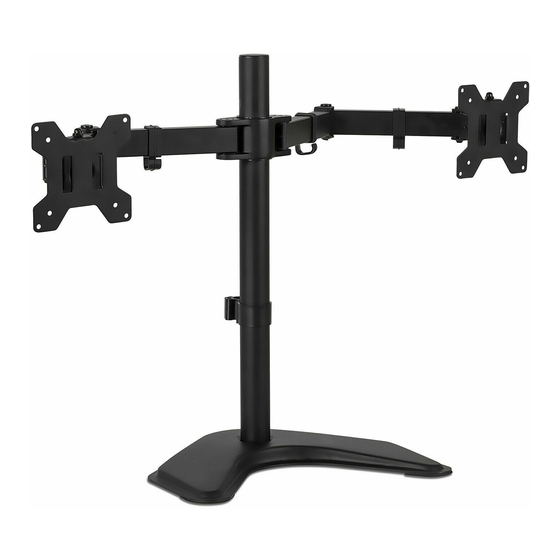

Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Table of Contents
Related Manuals for Mount-It! 2781
Summary of Contents for Mount-It! 2781
-
Page 1: Important Safety Information
English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts. - Page 2 Supplied Par ts List (1) Pole-a (1) Weighted Base-b (1) Swivel Arm-c (3) M5x14 Bolt-e (2) VESA Plate-d (2) Nut-h (1)M10 Bolt-i (1)Support Plate-j (1)M10 Washer-k (1)Spring Washer-l (1) Grommet Base (1)Wire Clip-n1 (4)Wire Clip-n2 (1)Allen Key-o Plate-m (1)Wrench-p (8)M4x12 Bolt-q (8)M4x30 Bolt-r (8)M4 Spacer-s Tools Required...
- Page 3 Install the Pole to the Desktop Step 1 Option A: Weighted Base Install 1. Install the Pole(a) to the Weighted Base(b) using 3pcs M5x14 Bolts(e), and tighten using the Allen Key(o), see Figure 1. 2. Optionally, you can drill a 10mm diameter hole in your desk and secure using the Support Plate (j), M10 Washer(k), Spring Washer(l) and M10 Bolt(i).
- Page 4 Install the Pole to the Desktop Step 1 Option B: Grommet Base Install Self Drilled Grommet Hole Installation 1. Position the Pole(a) on the mounting surface and mark the center hole. Drill a 3/8" (10mm) diameter hole at the marked position through the mounting surface.
- Page 5 Step 3 Attach the VESA Plate to the Monitor For Monitor with Flat Back For Monitor with Curved or Recessed Back Step 4 Slide the Monitor onto the Head of Swivel Arm Slide the monitor onto the head of Install the security Nut(h). Make Swivel Arm(c) as shown in the sure the security nut is installed above diagram.
- Page 6 Fix the Tilt Angle and Adjust the Level of Monitor Step 5 Ignore this step if Fix the tilt angle monitors are level Tighten the bolt with the supplied Allen If one monitor is lower, remove the Nut(h) and turn the bolt counter-clockwise with supplied Key(o) to fix the tilt angle.
