Completing Assembly - LOGICDATA TOUCH Series Manual

2. Ensure the cable is routed correctly. For correct operation, a 10cm Cable Loop must be routed.
Use the Cable supports on the back edge of the Control Box to help you do this (Fig. 12).

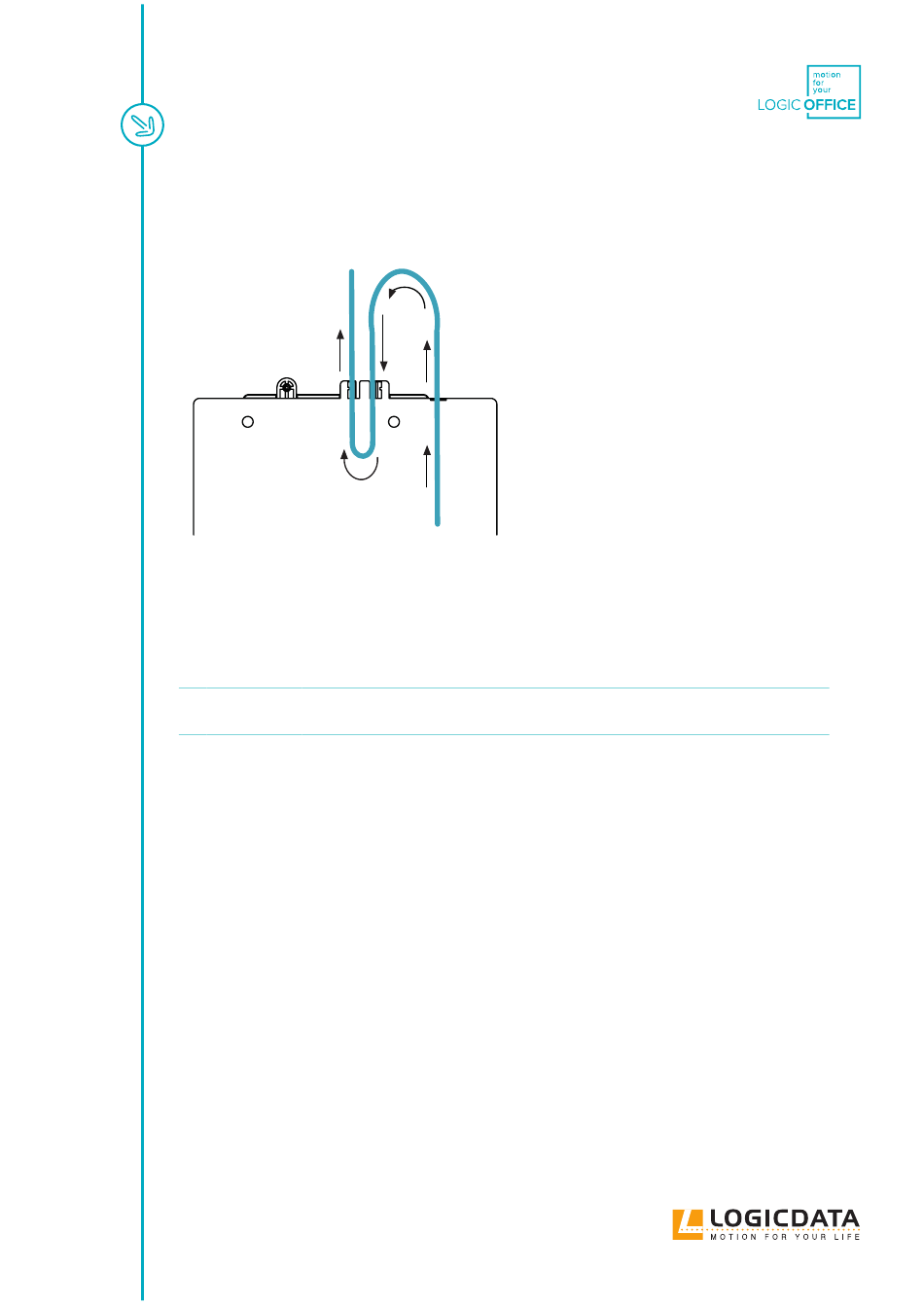

Fig. 12: Creating a Cable Loop
3. Use the screwdriver and 4 Mounting Screws to attach the Handset to the Table Top at the
marked drilling points.
The required tightening torque depends on the material of the Table Top. Do not exceed
NOTICE
2 Nm.

6.3.3 COMPLETING ASSEMBLY

After the TOUCHdown is attached to the Table Top, you must connect the Cable to the Control Box. Refer to
the manual for your chosen Control Box for instructions.
