5.2.3 TOUCHINLAY

Length
Width
Height (to bottom of rubber ribs)
1
2

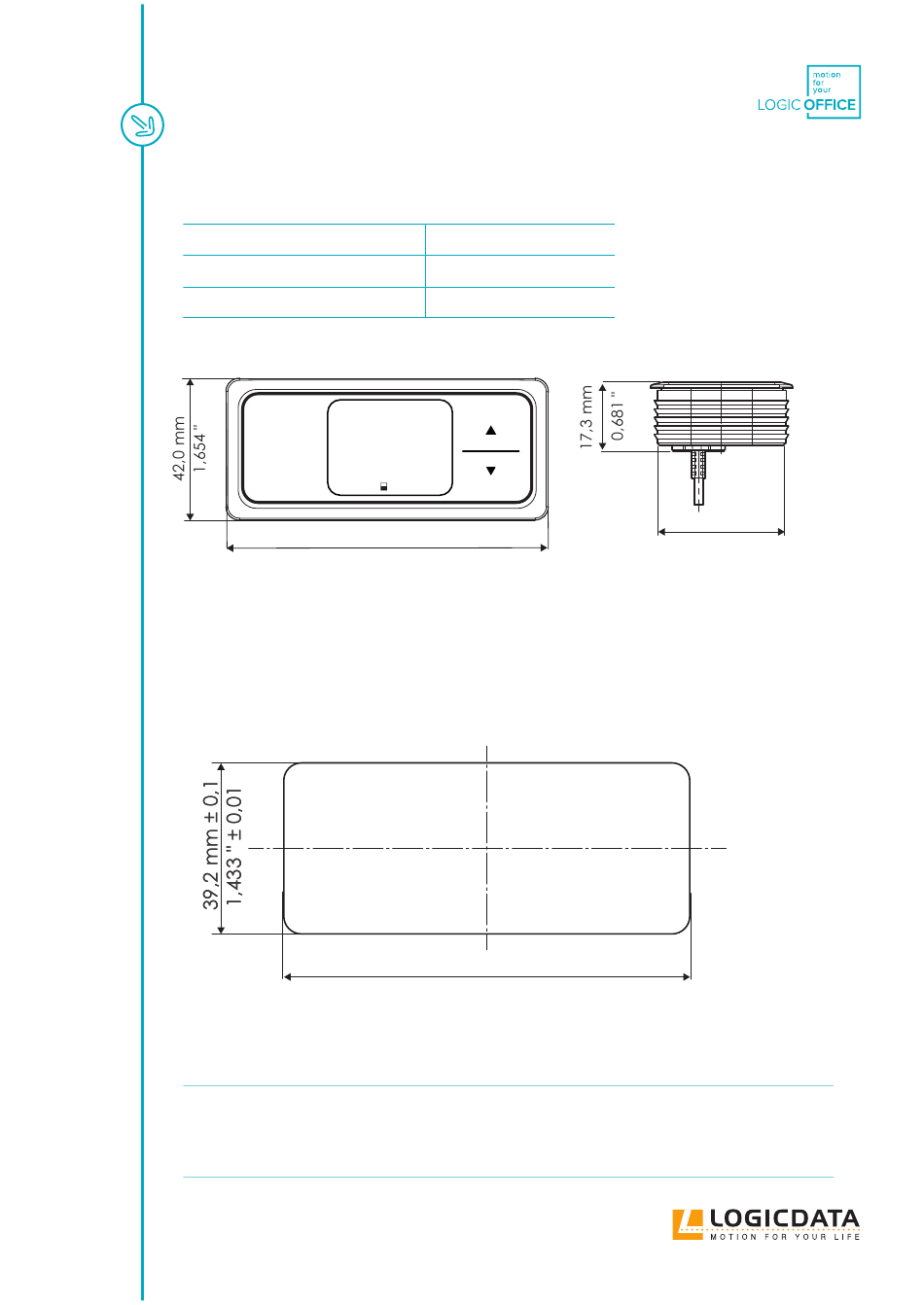

Fig. 6: Product dimensions, TOUCHinlay

5.2.4 DIMENSIONS FOR THE MILLED CUT-OUT

The milled cut-out for the TOUCHinlay shall have the following dimensions (image to scale):
Fig. 7: Dimensions for the milled cut-out, TOUCHinlay
INFO
It is assumed that the milled cut-out will pass through the entire table top (i.e. milling
will create a hole rather than an indent). If you do not mill through the entire Table
Top, you will need to drill a separate hole to accomodate the TOUCHinlay's cable. In this
case, contact LOGICDATA for further information on dimensions.
TOUCH FAMILY - OPERATING MANUAL // PAGE 14
42.0 mm | 1.654 "
95.4 mm | 3.756 "
17.3 mm | 0.681 "
SAVE
95,4 mm
3,756 "
93,0 mm ± 0,1 93,0 mm ± 0,1
3,661 " ± 0,01 3,661 " ± 0,01
35,7 mm
1,406 "
