6.2 ASSEMBLY: TOUCHfx

6.2.1 REQUIRED COMPONENTS

1

TOUCHfx

2 2 Mounting Screws (supplied by Reseller)
Tool Screwdriver
Screw specifications
INFO
Thread diameter: max. 5 mm | Head diameter: 8.5 mm - 10.6 mm
If possible, do not use countersunk-head screws.

6.2.2 PROCESS

1. Position the Handset under the table top and mark the position of the drilling holes. If necessary,
use the Drilling Template in chapter 5.3.1 to help you.
2. Insert the Strain Relief into the designated slot on the Handset (Fig. 6).
NOTICE
Inserting the Strain Relief incorrectly may cause damage to the Cable and Handset.
Ensure that the Cable does not protrude over the housing

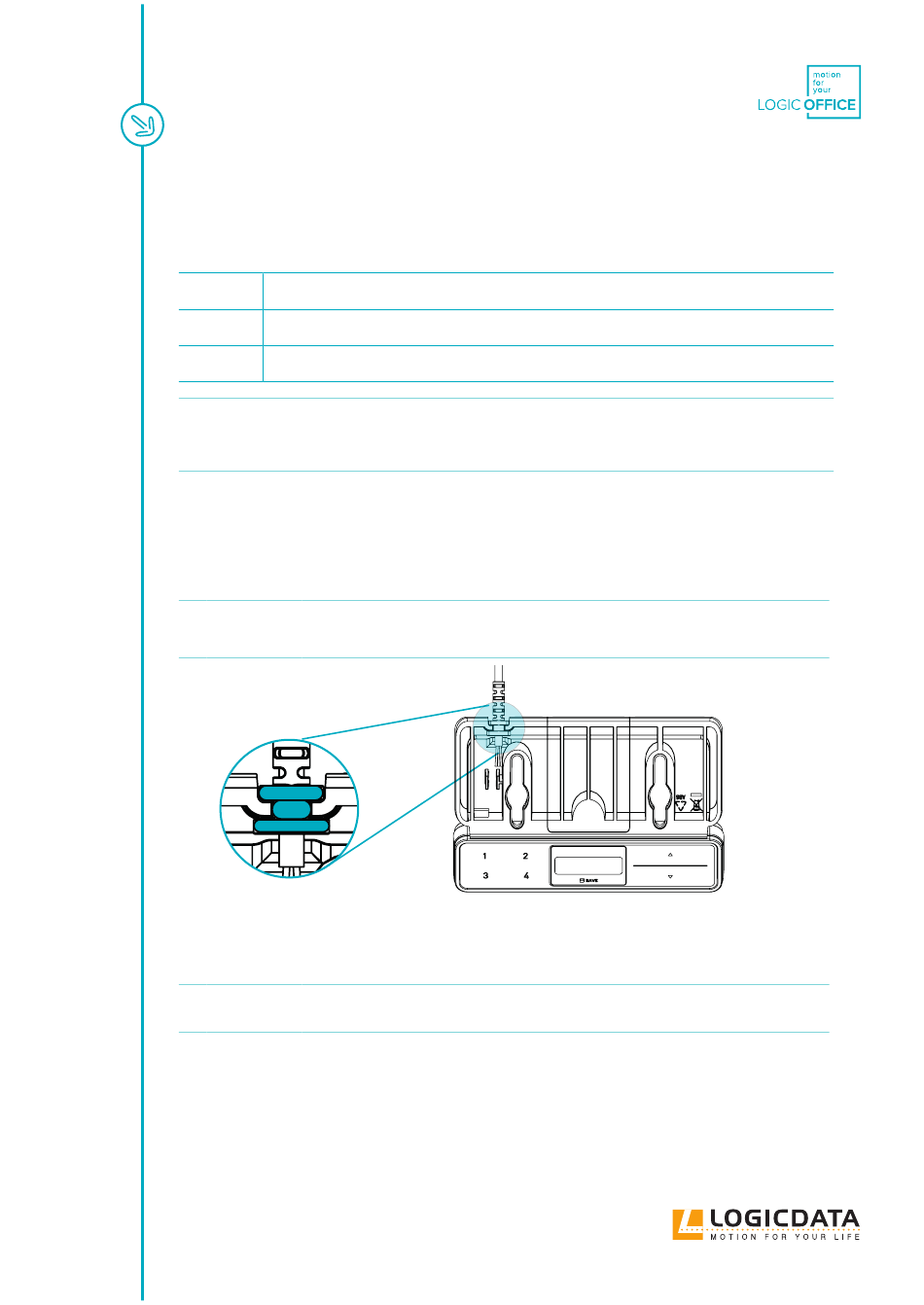

Fig. 10: Inserting the TOUCHfx Strain Relief
3. Use the screwdriver and 2 Mounting Screws to attach the Handset to the Table Top at the
marked drilling points.
The required tightening torque depends on the material of the Table Top. Do not exceed
NOTICE
2 Nm.

6.2.3 COMPLETING ASSEMBLY

After the TOUCHfx is attached to the Table Top, you must connect the Cable to the Control Box. Refer to the
manual for your chosen Control Box for instructions.
