ASSIST PLUS – Operating instructions V02
2 Description of the device
2.1

Scope of delivery

• ASSIST PLUS (pipettes to be ordered separately, see "8.1 Accessories" on page 48)
• Mains adapter
• Tip waste bags sample pack
• Trial pack 10 ml, 25 ml and 100 ml multichannel reagent reservoir
• Trial pack 300 ml automation friendly reagent reservoir
• Pipette charging cable, tip waste bin with reflector for tip sensor
C
AUTION
Verify the scope of delivery when unpacking the device and check for
potential transportation damage. Do not operate a device that is damaged,
instead contact your local dealer.
2.2

Overview of the ASSIST PLUS

2.2.1

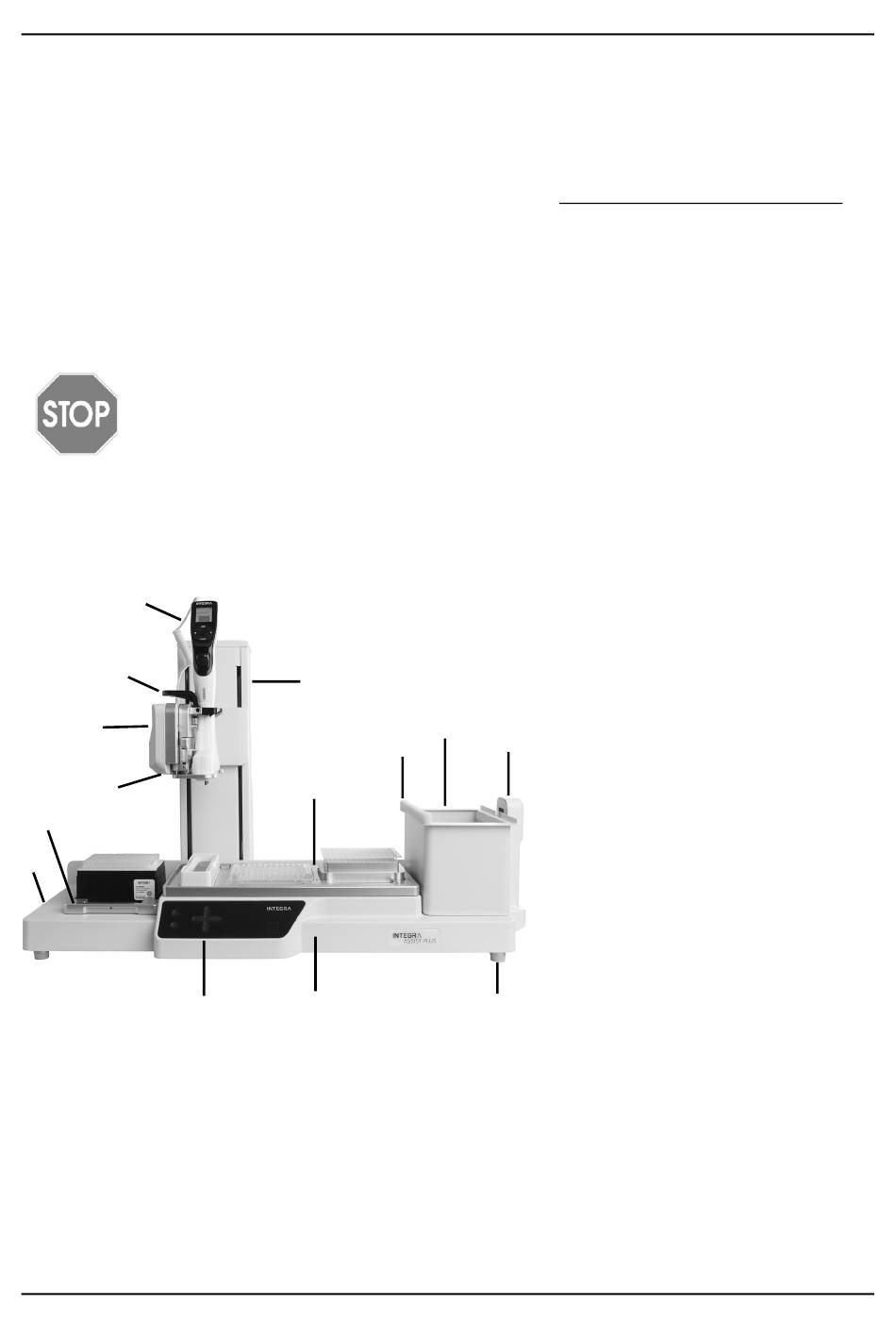

ASSIST PLUS base unit

2
3
4
5
6
11
8 Reflector for tip sensor, removable.
9 Waste bin, for automatic tip ejection,
removable.
10 Tip sensor, for tip monitoring.
8
1
7
13
12
1 Tower with Pipette arm.
2 Charging cable for pipette
3 Gripper with lever to release
9
10
8
4 Pipette arm with Pipette
5 LEDs for adjustable deck
6 Tip rack deck for GripTips,
7 Deck, removable, with
14
11 Interfaces and Main switch
12 Touch panel
13 Instrument base
14 Feet, adjustable.
Description of the device
Tower moves in X-direction,
Pipette arm in Z-direction.
the pipette.
holder, that moves in Y-
direction.
illumination.
removable.
Positions, e.g. A, B and C.
