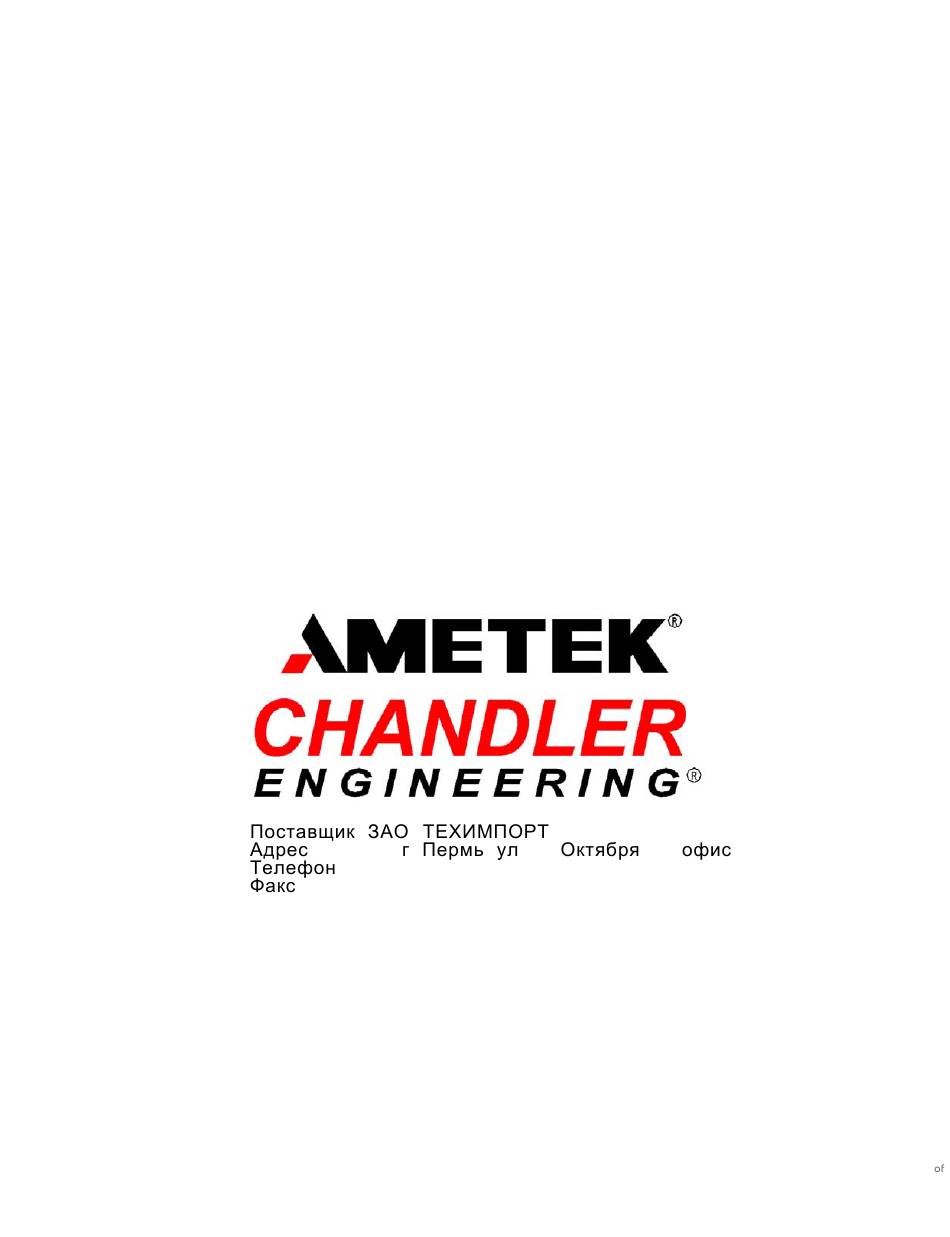

- Page 1 INSTRUCTION MANUAL MODEL 3065 Wettability Tester Revision F – January 2016 P/N: 3065-0009 S/N: ____________ “ ” : 614007, . . 25 : +7 (342) 262-85-56 : +7 (342) 262-85-60 email: office@techimport.ru www.techimport.ru...
- Page 2 This publication contains the following trademarks and/or registered trademarks: AMETEK, CHANDLER ENGINEERING. These trademarks or registered trademarks and stylized logos are all owned by AMETEK, Inc. All other company, product and service names and logos are trademarks or service marks of their...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents General Information..............P-1 Introduction ........................... P-1 Purpose and Use ......................P-1 Description ........................P-1 Features and Benefits ......................P-1 Specifications ......................... P-2 Safety Requirements ......................P-3 Section 1 – Installation ............. 1-1 Unpacking the Instrument ...................... 1-1 Utilities Required ........................ - Page 4 TABLE OF CONTENTS This page is intentionally left blank.
-
Page 5: General Information
PREFACE General Information Introduction This manual contains installation, operation and maintenance instructions for the Chandler Engineering Model 3065 Wettability Tester. Purpose and Use The Chandler Engineering Model 3065 Wettability Tester is designed to evaluate the water- wetting capability of spacers and/or pre-flushes designed to water-wet surfaces after these surfaces have been exposed to non-aqueous fluids, specifically oil- and synthetic-based drilling fluids. -
Page 6: Specifications
PREFACE • Stability of the unit is ensured by the heavy base plate and control panel which is designed for safe and simple operation • Heavy duty industrial-grade mixer assures its trouble-free and long-life operation Specifications Operating Conditions: 75°F - 194°F (24°C - 90°C) Maximum Temperature: 194°F (90°C) Input Voltage:... -
Page 7: Safety Requirements
PREFACE Safety Requirements READ BEFORE ATTEMPTING OPERATION OF INSTRUMENT The Chandler Engineering Model 3065 Wettability Tester is designed for operator safety. Any instrument that is capable of high temperatures should always be operated with CAUTION!! To ensure safety: • Locate the instrument in a low traffic area. •... - Page 8 PREFACE This page is intentionally left blank.
-
Page 9: Section 1 - Installation
SECTION 1 – INSTALLATION Section 1 – Installation Unpacking the Instrument Note: Verify all parts listed on packing slip have been shipped with instrument. If parts are missing, contact Chandler Engineering. Utilities Required 100-130 VAC/200-240 VAC 10 A 50/60 Hz Tools/Equipment Required None Setting up the Instrument... - Page 10 SECTION 1 – INSTALLATION Figure 1 (Viewed from the back of the instrument)
-
Page 11: Section 2 - Operating Instructions
SECTION 2 – OPERATING INSTRUCTIONS Section 2 – Operating Instructions Sample Preparation for Wettability Test 1. Prepare a mud sample according to instructions from the supplier. Laboratory-prepared mud samples may require additional preparation such as static aging or hot rolling to more fully simulate field mud properties. -
Page 12: Mixing A Cement Slurry
SECTION 2 – OPERATING INSTRUCTIONS Mixing a Cement Slurry 1. Measure the amount of water and pour into the mixer cup. Place the cover on the mixer cup. 2. Using a scale, measure the amount of cement. 3. Set the Timer Switch to the AUTO position. 4. -
Page 13: Section 3 - Maintenance
SECTION 3 – MAINTENANCE Section 3 – Maintenance Tools Required 7/8” socket 3/8” wrench Cleaning and Service Tips Most of the problems that occur with the Model 3065 Wettability Tester are due to inadequate cleaning. The blade assembly, mixing cup, and probe leads must be thoroughly cleaned after each test. -
Page 14: Maintenance Schedule
SECTION 3 – MAINTENANCE Maintenance Schedule MAINTENANCE SCHEDULE INSTRUMENT NAME COMPONENT EACH TEST MONTHLY 3 MONTHS 6 MONTHS ANNUAL Blending Clean Assembly Mixing Cup Clean Control Base Clean Mixer Motor Clean Check and Per API Spec 10 Replace Blending Recommendation Blade Inspect the Inspect... -
Page 15: Section 4 - Troubleshooting Guide
SECTION 4 – TROUBLESHOOTING GUIDE Section 4 – Troubleshooting Guide Problem Solution Faulty motor 1. Remove the mixing cup from the motor. 2. Place the AUTO/MANUAL switch in Manual. 3. Push the VAR button in. 4. Rotate VARIABLE SPEED control counterclockwise. 5. - Page 16 SECTION 4 – TROUBLESHOOTING GUIDE the cable. The peak-to-peak voltage should be at least 0.4 V and may be as high as 3 to 5 V depending on the motor speed. If the voltage is too low or not present, the possible causes are: Open or shorted cable Failed transducer...
- Page 17 SECTION 4 – TROUBLESHOOTING GUIDE Heater is not functioning 1. Check connections 2. Check to see that thermocouple is plugged in and functioning properly Conductivity probe is not 1. Check to see that leads are completely plugged into functioning mixing cup and that probe is plugged into the Control Enclosure.
- Page 18 SECTION 4 – TROUBLESHOOTING GUIDE This page is intentionally left blank.
-
Page 19: Section 5 - Replacement Parts
SECTION 5 – REPLACEMENT PARTS Section 5 - Replacement Parts Part Number Description 106917 Fitting, Thermocouple 30-0048 Blending Assembly 30-0049 Hardened Blade (1 liter) 3065-0012 Modified Blender Cup 3065-0020 Test Lead Assembly 3065-0021 TC,1.00" Long 3065-0027 Heater Jacket Assy,W/O T/C C07709 Washer, SS C07710... - Page 20 SECTION 5 – REPLACEMENT PARTS This page is intentionally left blank. 3065-REPL_PARTS REV C...
-
Page 21: Section 6 - Drawings And Schematics
SECTION 6 – DRAWINGS AND SCHEMATICS Section 6 - Drawings and Schematics Drawing Number Description 30-0048 Modified Blending Assembly 3065-0001 Wettability Tester Model 3065 3065-0013 Schematic Wiring, 110V 3065-0014 Schematic Wiring, 220V 3065-0027 Assembly Heater, Jacket 3065-0112 Assembly, Slurry Cup -????-DWGS REV A... - Page 22 SECTION 6 – DRAWINGS AND SCHEMATICS This page is intentionally left blank. -????-DWGS REV A...
- Page 23 DESCRIPTION DATE APPROVED ECN T6603; ADDED KRYTOX GREASE 5/12/15 BLADES FACE DOWN SECTION A-A NOTES: 1. LUBRICATE WITH DUPONT KRYTOX GPL-250 GREASE (C16748). ITEM PART NUMBER DESCRIPTION P-2232 CAPNUT,SS,1/4,BLENDER 30-0049 HARDENED BLADE P-2233 CAP,BRNG BLENDING CONTAINER P-1798 ORING,BUNA-N,AS010 30-0055 HOLDER, BEARING P-2235 WSHR,FLAT,FB,1/2 P-2236...
- Page 27 CHANDLER ENGINEERING...
- Page 28 CHANDLER ENGINEERING...
- Page 30 DESCRIPTION DATE APPROVED ECN T6802; DEL70615-04, REPL C12349 W/ 10/23/15 C16704, ADD C00595 AND QX-C-1029 DRILL .25 HOLE DRILL 0.25 HOLE TIGHTEN FITTING DOWN ON SHAFT. PART OF ITEM 2 SECTION A-A DETAIL C DRILL 0.130 THRU ITEM PART NUMBER DESCRIPTION 3065-0017 CUP,MODIFIED,WETTABILITY...
- Page 31 TIMER #814 GENERAL FUNCTIONS: A, B, C, D, Di, H OPERATING MODES A - Delay on energization B - Timing on impulse C - Timing after impulse (one-shot) D - Cyclic Repetitive cycle Start-pause Di - Cyclic Repetitive cycle Start-pause H - Timing on energization 11 TIMING RANGES: 99.99 s 999.9 s...
- Page 32 READOUT LEGENDS 1. Power supply symbol 2. Closed control contact symbol 3. Flashing symbol during time delay 4. Current value readout (4 digits) 5. Unit of time 6. Separation of units of time 7. Operating modes 8. Increasing (Up) or decreasing (Down) mode 9.
- Page 33 PROGRAMING - Increment value of T by pressing one of the 4 keys 13 corresponding to each digit. a) To program, simply set the switch on the side of the unit to the AON@ position. b) During operation of the timer, change of time delay values: - taken into account immediately if your display is on the up count (Up) and if the new value is greater than the time that has already elapsed.
