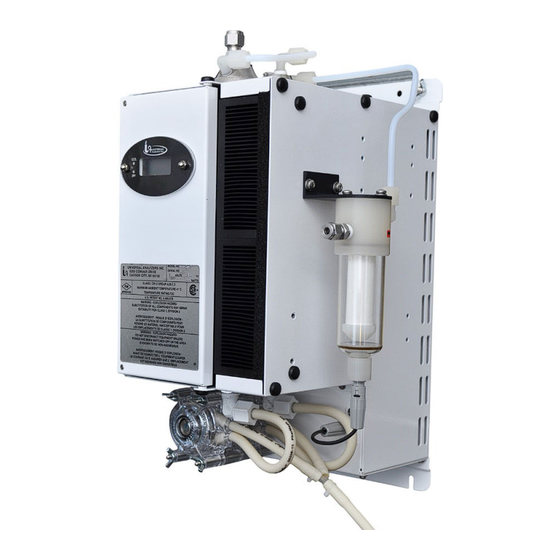

- Page 1 Model Series 3000 Thermoelectric Gas Cooler Instruction Manual 5200 Convair Drive • Carson City, NV 89706 +1 (775)883 2500 • sales.universal@ametek.com • www.universalanalyzers.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Receiving and Storage ..................3 Definition of Symbols ..................... 4 Product Identification & Configuration ..............5 Specifications ......................6 Description and Principle of Operation ..............7 Application ............................. 7 ... -
Page 3: Receiving And Storage
Receiving and Storage The Universal Analyzers 3000 series dual channel or single channel dual stage gas sample cooler is a completely pre-assembled unit. No assembly is necessary when received on-site. Carefully inspect the product and any special accessories included with it immediately on arrival by removing them from the packing and checking for missing articles against the packing list. -
Page 4: Definition Of Symbols
Definition of Symbols CAUTION, RISK OF DANGER SYMBOL INDICATES INJURY MAY OCCUR IF MANUFACTURER’S INSTRUCTIONS ARE NOT ADHERED TO. PLEASE READ MANUAL CAREFULLY WHEN SYMBOL IS DISPLAYED CAUTION, HOT SURFACE SYMBOL INDICATES EXPOSED SURFACE TEMPERATURE CAN CAUSE BURNS OR PERSONAL INJURY. CARE SHOULD BE TAKEN WHEN CONTACT IS REQUIRED. -
Page 5: Product Identification & Configuration
Product Identification & Configuration For the current version of all Model 3000 product configurations, visit the Universal Analyzers website. https://www.universalanalyzers.com/ Navigate to: Products -> Gas Sample Coolers -> Model 3000 Thermoelectric Gas Cooler. A link to the current configuration is provided at the bottom of the page. UA-MAN-3000-19RN Page 5 of 17... -
Page 6: Specifications
Specifications OPERATING SPECIFICATIONS Sample Flow Rate Model 3040 0 to 6 l/m total (at STP) Model 3050 0 to 8 l/m total (at STP) Model 3080 Single sample mode: 0 to 10 l/m total (at STP) Dual sample mode: 0 to 12 l/m total (at STP) Maximum Inlet Temperature Stainless Steel Heat Exchanger 700°... -
Page 7: Description And Principle Of Operation
Description and Principle of Operation Application The Universal Analyzers 3000 Series Gas Sample Coolers are designed to be installed in a sample system where the gas sample contains moisture to be removed. They have an option to be installed in hazardous locations or unclassified locations. - Page 8 Universal Analyzers Sample Chillers are designed to interface with a condensate carry over sensor. The standard sensor is provided with a filter (which is referred to as a “CCSF”) or it can be ordered without a filter (“CCS”). This sensor is put in place as an early warning device to ensure that a clean, dry sample is presented to the analyzer(s), thereby minimizing future maintenance and/or costly repairs.
-
Page 9: Installation
ADEQUATE VENTILATION MUST BE PROVIDED FOR DISSIPATION OF A MINIMUM OF 1200 BTU/hr (1265 kJ/hr) Universal Analyzers 3000 Series Sample Coolers should be installed away from heat sources in a well ventilated area of an instrument rack or enclosure. The Cooler performance is proportional to ambient temperature, too high a temperature will degrade performance. -
Page 10: Start-Up
SHOULD BE AT OPERATING TEMPERATURE BEFORE STARTING THE CHILLER AND SAMPLE PUMP Apply power to the Universal Analyzers 3000 Series Sample Cooler. The indicated temperature will start to drop immediately. It should be below the over-temperature alarm point in approximately four minutes and the “COOL”... -
Page 11: Shutdown
Shutdown Disconnect the heated sample line. Allow the cooler to run for several minutes to remove any remaining possibly hazardous condensate from the impingers. Turn off power to the cooler. UA-MAN-3000-19RN Page 11 of 17... -
Page 12: Maintenance
Maintenance Before performing any maintenance on the cooler, ensure that all plant safety procedures are followed. As with any electri-cal device, ensure power is removed before performing any procedures. The cooler is designed for maintenance free operation but if any is required, ensure power has been removed before maintenance or repair is performed. -
Page 13: Troubleshooting
10.0 Troubleshooting The following table should give an overview of possible errors and an instruction to check and to repair them (not valid for the starting-up period of cooler). Error Possible reason Check/Repair Condensate sensor alarm/ Overloading of the refrigeration capacity of Reduce flow rate Dry light not Illuminated the cooler due to too much water vapor or too... -
Page 14: Drawings And Spare Parts
11.0 Drawings and Spare Parts For the current revision of all Model 3000 drawings and spare parts, visit the Universal Analyzers website. https://www.universalanalyzers.com/ Navigate to: Products -> Gas Sample Coolers -> Model 3000 Thermoelectric Gas Cooler. Links to all current drawings and spare parts for standard probe configurations are provided at the bottom of the page. -
Page 15: Standard Terms & Conditions Of Sale And Warranty
12.0 Standard Terms & Conditions of Sale and Warranty THE FOLLOWING TERMS/CONDITIONS, TOGETHER WITH ANY OTHER TERMS/CONDITIONS SPECIFICALLY AGREED TO IN WRITING BY SELLER, SHALL APPLY TO ALL ORDERS (“Order(s)”) FROM, AND SALES OF PRODUCTS (“Products”) OR SERVICES (“Services”) TO BUYER. ANY ACCEPTANCE OF ANY ORDER OF BUYER IS CONDITIONED UPON THESE TERMS/CONDITIONS. - Page 16 learns of or has reason to know of any violation of FCPA and/or If Buyer receives a claim that Products, or part thereof or UKBA in connection with the sale or distribution of manufactured by Seller infringes a patent, Buyer shall notify Products/Services, Buyer shall immediately advise Seller.
- Page 17 A. Buyer shall not acquire any rights to any software which may under breach of contract, warranty, tort (regardless of the be delivered with Products, except as granted in Seller’s degree of fault or negligence), strict liability or otherwise. standard software license. Any software license granted in Where Seller approves the application of the Products in a connection with Products shall be an interim license, which nuclear facility, the Buyer shall, before such use or provision,...
