SCAN 1010 Series Assembly And Instruction Manual page 6

6
324,5 D
Scan 1010
NAVN:
MATERIALE:
M3 NR.:
T E C H N I C A L D ATA

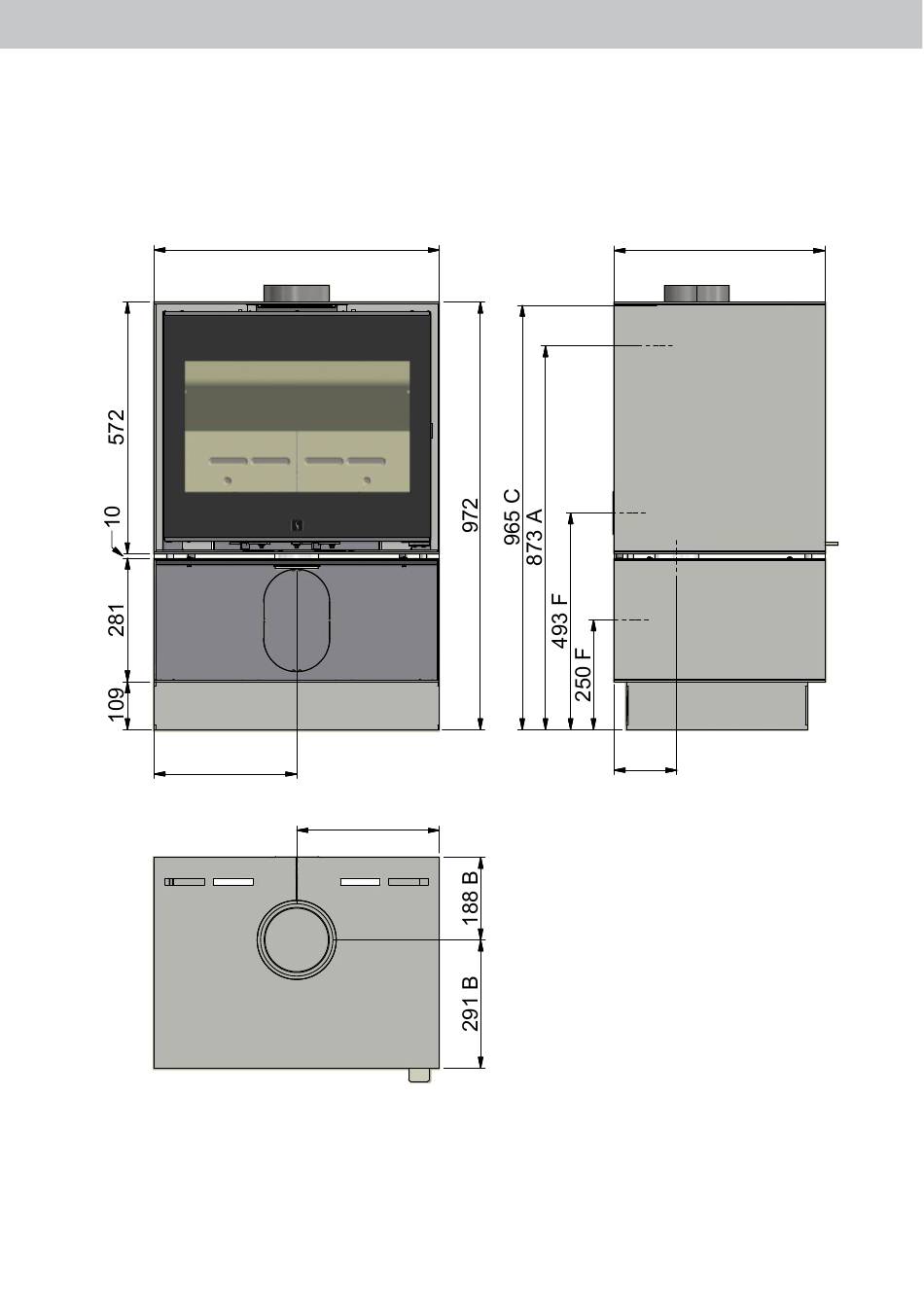

Dimension sketch Scan 1010
649
324,5 B
Mål ovn, base, sokkel
EMNE:
DIM.: AREAL:
143 D
A Centre rear outlet
B Top outlet
C Height to the beginning of the
connecting piece at top outlet
D Centre of fresh air intake bottom
F Fresh air intake at the back of the stove
N/A
DATO:
VÆGT:
N/A
DK-5492 Vissenbjerg©
479
91010008
TG.NR:
hms
20-05-2016
SIGN:
Scan A/S
