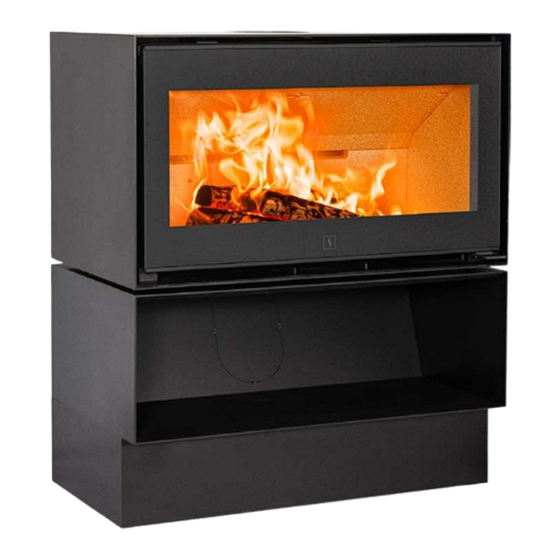

1006-B
EU - ASSEMBLY AND INSTRUCTIONS MANUAL
SCAN 1006-B
ASSEMBLY AND INSTRUCTION MANUAL SCAN 1006-B

Advertisement

Table of Contents
loading

Related Manuals for SCAN 1006-B

Summary of Contents for SCAN 1006-B

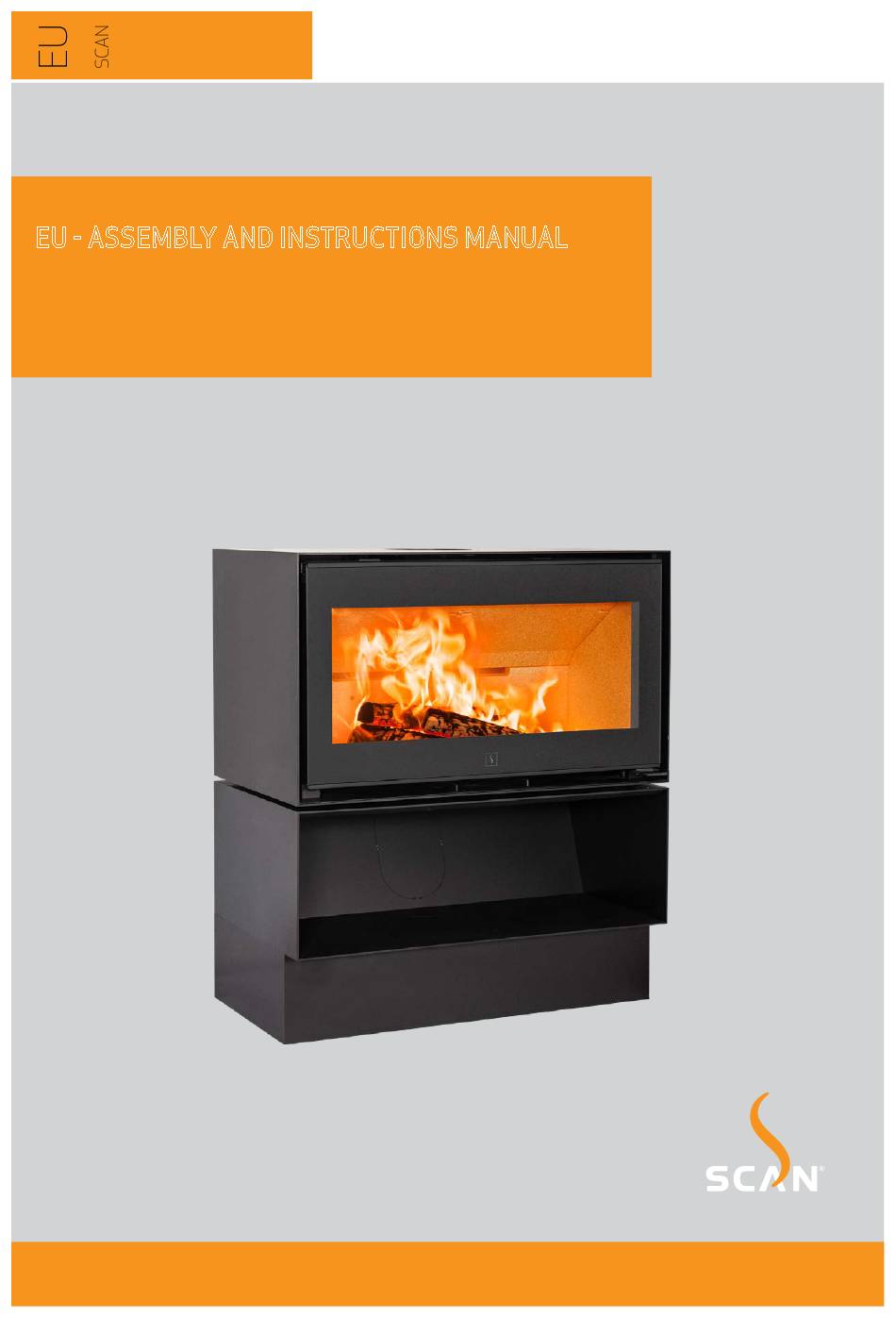

  • Page 1 1006-B EU - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 1006-B ASSEMBLY AND INSTRUCTION MANUAL SCAN 1006-B...
  • Page 2 1006-B CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.

  • Page 3: Table Of Contents

    CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch and minimum distances Safety Type plate Technical data and dimensions Product registrationumber ¬ ¬ ASSEMBLY Tools needed for mounting of the stove Operating the door Loose parts Fitting the flue connection piece Disposal of packaging Fresh air intake Additional accessories...

  • Page 4: Technical Data

    Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed.

  • Page 5: Technical Data And Dimensions

    41 kg Connecting piece internal diameter 144 mm Connecting piece external diameter 148 mm Intermittent Approval type fuelling* Scan 1006-B – Test in compliance with EN 13240 Ceramic Vermi- Combustion chamber stone culite CO Emission at 13% O 0,07...

  • Page 6: Dimension Sketch And Minimum Distances

    DIMENSION SKETCH AND MINIMUM DISTANCES...
  • Page 7 MINIMUM DISTANCES...

  • Page 8: Type Plate

    PRODUCT REGISTRATIONUMBER All Scan wood burning stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S.

  • Page 9: Assembly

    3 pins Ø6 x 50 mm ¬ Eco energy label DISPOSAL OF PACKAGING Your Scan stove may come supplied with the following packaging: The wood packaging can be reused and after final use can be incinerated as a CO neutral Wood packaging...

  • Page 10: Additional Accessories

    Scan 1010 fresh air 91010034 NAVN: EMNE: TG.NR: shield inlet 12-08-2016 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 1010\91010034.idw STI: Large plinth Small side module Small plinth...

  • Page 11: Load-Bearing Foundation

    EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim- ney sweep, for advice. These experts will also let you know if your chimney needs renovating.

  • Page 12: Storage Of Flammable Material

    324,5 324,5 = 10 mm You can store wood under the stove in the module with heat shield and fresh air inlet CARRYING CAPACITY Scan 1003-B Målskitse Scan 1003-B 91003024 NAVN: EMNE: TG.NR: 23-05-2019 MATERIALE: VÆGT: DATO: SIGN: M3 NR.:...

  • Page 13: Safety Distance

    The wood-burning stove must be set up so that the stove itself, the flue pipe, and the chimney can all be cleaned. Min. 140 mm Min. Min. 140 mm 175 mm 324,5 324,5 Scan 1003-B Målskitse Scan 1003-B NAVN: EMNE: TG.NR: 23-05-2019 MATERIALE: VÆGT: DATO: SIGN: M3 NR.: DIM.:...

  • Page 14: Operating The Door

    OPERATING THE DOOR Push down the handle and the door will open The door should be banged shut, as on a car. Grip the handle (hold in a horizontal position) and bang the door shut FITTING THE FLUE CONNECTION PIECE The stove is prepared for a top flue outlet from the factory, but the connection piece can be turned around for a rear outlet.

  • Page 15: Fresh Air Intake

    External air supply on the rear of the cassette External combustion air on the bottom of the cassette Ekstern forbrænding Scan 1003-B 91003039 NAVN: EMNE: TG.NR: DATO: 28-05-2019 MATERIALE: VÆGT: SIGN: M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 1003\91003039.idw STI:...
  • Page 16 SIGN: M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 1003\91003040.idw STI: MOUNTING OF EXTERNAL AIR SUPPLY THROUGH THE BOTTOM OF THE CASSETTE Mount the Ø100 mm sleeve 4 x self-tapping screws 4.2 x 6.5 mm Scan 1003-B Ovn uden kasse...
  • Page 17 Scan 1001 Krog Iversen & Co A/S Frisklufttilførsel bund af ovn NAVN: EMNE: TG.NR: 91001032 Scan 1010 Frisklfuft bund NAVN: EMNE: TG.NR: 91010036 DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 1010\91010036.idw STI: 07-05-2012 MATERIALE: VÆGT: DATO: SIGN: MATERIALE: VÆGT: DATO: 18-08-16 SIGN: DIMENSION: DIMENSION:...

  • Page 18: Mounting With Plinth

    Please follow the order below A, B, C and D Scan 1010 indstil ben NAVN: EMNE: TG.N 23-08-2016 DATO: MATERIALE: VÆGT: DIMENSION: AREAL: Krog Iversen & DK-5492 Vissen C:\Working Folder\Designs\Scan 1010\91010039.idw STI: justering af sokkel 1010 91010015 EMNE: TG.NR: 08-06-2016 VÆGT: DATO: SIGN: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg©...

  • Page 19: Wall-Hung Model

    There must be a distance of at least 6 mm between the first section and the flange on the flue Min. 839 mm collar. Please consult a specialist. Scan A/S disclaims all liability for the installation of Min. 466,5 mm wall-hung wood-burning stoves. Scan 1006-B DIMENSIONAL DRAWINGS OF THE WALL BRACKETS For wall installation we recommend using the wall brackets supplied.

  • Page 20: Mounting Of The Wall Bracket

    PLEASE NOTE: that one of the delivered type plates (depending on choice of Large wall bracket combustion chamber lining) must be placed on the stove after dismounting the heat shield Scan 1006-B VE Scan 1006-B CS Heat shield (Vermiculite) (Ceramic stones) First dismount the heat shield at the rear.
  • Page 21 Scan 1010 NAVN: EMNE: MATERIALE: M3 NR.: DIM.: AREAL: justerskive Scan 1010 NAVN: EMNE: MATERIALE: C:\Working Folder\Designs\Scan 1010\91010045.idw STI: MATERIALE: VÆGT: M3 NR.: DIM.: M3 NR.: DIM.: AREAL: C:\Working Folder\Designs\Scan 1010\9101004 STI: C:\Working Folder\Designs\Scan 1010\91010023.idw STI: Mount the module (A) on the wall fitting. Place the stove (B). Put on the indicator plate (C)

  • Page 22: Mounting Of Combustion Chamber

    When installing the bottom stones follow instructions 2 and 3 - otherwise proceed to instruction 4 ION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© \Working Folder\Designs\Scan 1003\91003035.idw Place the log guard against the front of the insert Place the bottom stones with the inclined edge turning to the rear and downwards...
  • Page 23 VÆGT: DATO: SIGN: ION: AREAL: Krog Iversen & Co A/S DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© DK-5492 Vissenbjerg© \Working Folder\Designs\Scan 1003\91003030.idw C:\Working Folder\Designs\Scan 1003\91003029.idw STI: Montering af nederste røgvenderplade Scan 1003-B NAVN: EMNE: TG.NR: 91003028 27-05-2019 MATERIALE: VÆGT:...

  • Page 24: Adjustment Of The Door

    Krog Iversen & Co A/S The door is delivered without self-closing DK-5492 Vissenbjerg© function (Bauart 1). C:\Working Folder\Designs\Scan 1003\91003037.idw STI: If you want a self-closing door, the spring can be tightened by turning the long screw (inside the spring) counter-clockwise using...

  • Page 25: Instructions For Use

    Scan 1005 NAVN: EMNE: TG.NR: 91005014 DIMENSION: AREAL: Krog Iversen & Co A/S DATO: 19-03-2018 MATERIALE: VÆGT: SIGN: Primary air Secondary air DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 1003\91003037.idw STI: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 1005\91005014.idw STI:...

  • Page 26: Instructions For Heating

    LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan-stoves.com or scan the QR-code. Please note that Scan the QR-code this video is only intended as a guide.

  • Page 27: Continuous Operation

    CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane.

  • Page 28: The Function Of The Chimney

    THE FUNCTION OF THE CHIMNEY The chimney is the wood-burning stove’s motor; its performance determines how well your stove will work. The draught in the chimney creates negative pressure in the wood-burning stove. The negative pressure draws the smoke out of the stove and takes in air through the combustion air damper to fuel the combustion process.

  • Page 29: Handling Of The Fuel

    HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st.

  • Page 30: Maintainance

    Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter.

  • Page 31: Cleaning The Glass

    91003038 28-05-2019 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 1003\91003038.idw STI: DISPOSAL OF STOVE PARTS Steel/cast iron Send for recycling Glass Dispose of as ceramic waste Brændkammerforing, eksploderet Scan 1003 91003003 NAVN: EMNE: TG.NR:...
  • Page 32 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in the room ¬...
  • Page 33 All wood-fired Scan products are made of high-quality materials and subject to strict quality controls before leaving the factory. We give a warranty of 5 years on manufacturing errors or defects. You must quote your stove‘s product registration number when you contact us or your authorised Scan dealer with a warranty claim.
  • Page 34 NOTES...
  • Page 36 Product registration number Quote this number at all enquiries Edition: EU 91006500 10059460-P02 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 14.08.2023...
