OSD Menu Motion
_

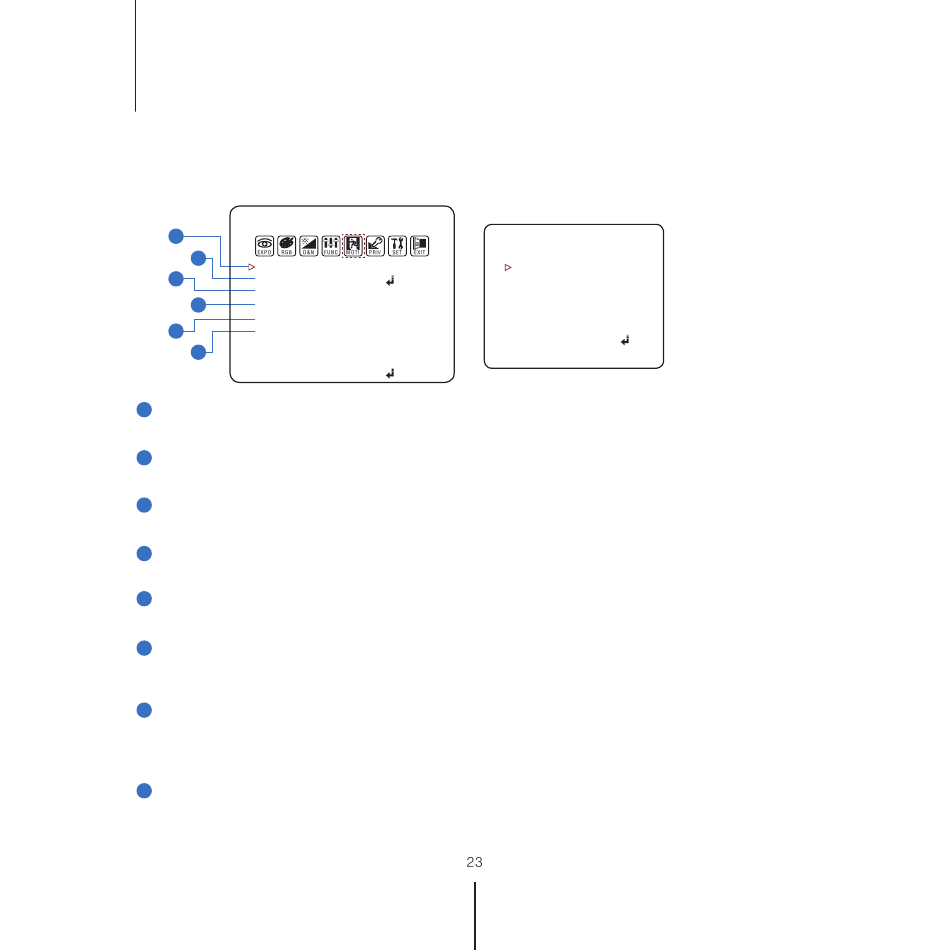

The camera can detect movement and display an alarm on the screen. when movement is detected.
MOTION
1
2
MOTION
3
DET WINDOW
DET TONE
4
MDRECT FILL
SENSITIVITY
5
MOTION OSD
TEXT ALARM
6
SIGNAL OUT
EXIT JUMP
1
MOTION
To use the motion detection settings, be fore Motion is ON.
2
DET WINDOW
MOTION ZONE setting
3
DET TONE
Four each different motion tone color available
4
MDRECT FILL
Color setting for operating motion zone
5
SENSITIVITY
The smaller the movement you want to detect, the higher the sensitivity value must be.
6
MOTION OSD
MOTION ZONE display.
MOTION OSD interoperable with 'DET TONE' and 'MDRECT FILL'.
7
TEXT ALARM
Setup a text to appear on the screen when motion is detected explaining the alarm situation.
- WINDOW MOTION: Will appear when a motion alarm is detected.
- CAMERA MOVING : Will appear if the camera is shaken abruptly.
8
SIGNAL OUT (ON / OFF)
- ON : 'HIGH' SIGNAL OUT upon ALARM.
- OFF : 'SIGNAL OUT' off regardless of ALARM
DET WINDOW
ON
WINDOW USE
WINDOW ZONE
___ DET H-POS
DET V-POS
___
DET H-SIZE
5
DET V-SIZE
OFF
RETURN
OFF
ON
0
ON
1
1
58
32
