Connecting to

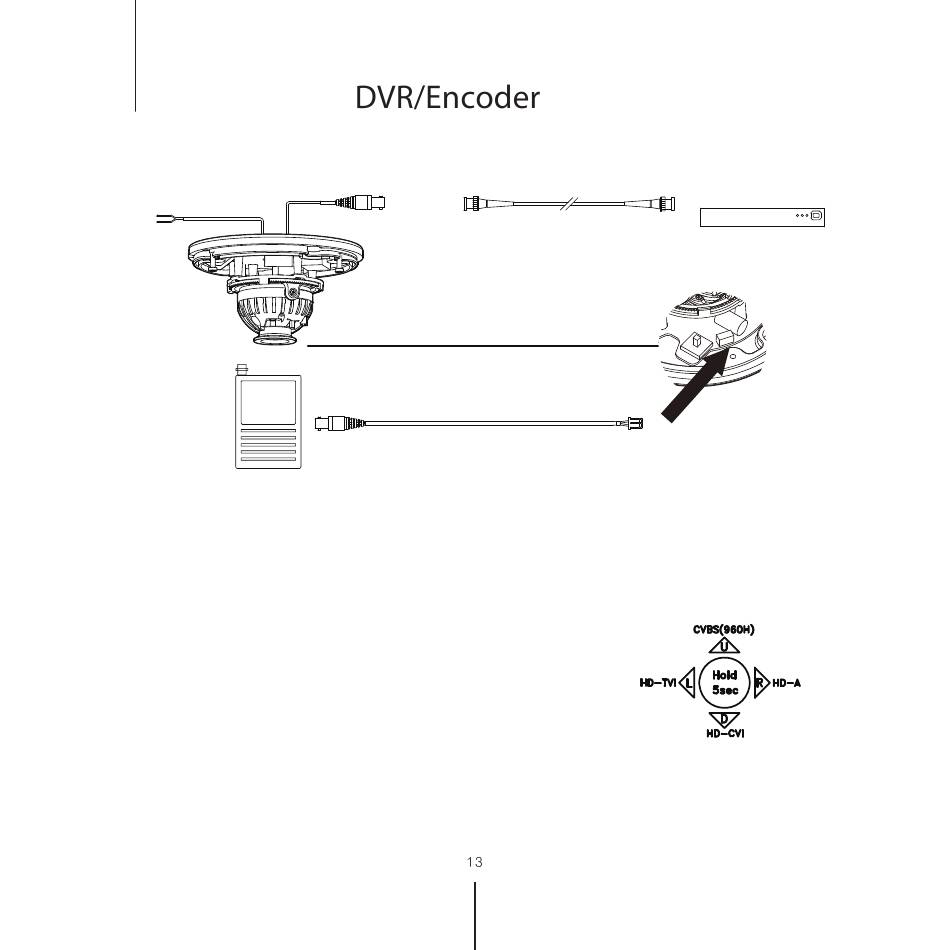

Use the diagram below to connect to an Universal DVR or CRT Monitor properly.
12VDC
Monitor
- Power Connection - 12vdc Voltage
- All cameras are equipped with a test video output for on-site configuration.
- OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A)
Image Mode
Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer.
Switches to HD-A mode when press OSD Joystick to right 5sec or longer.
Switches to CVBS mode when press OSD Joystick to up 5sec or longer.
Switches to HD-CVI mode when press OSD Joystick to down 5sec or longer.
COAX
Test Video Output
UNIVERSAL DVR
