2.3.

Opening And Securing The Back Sensor Array

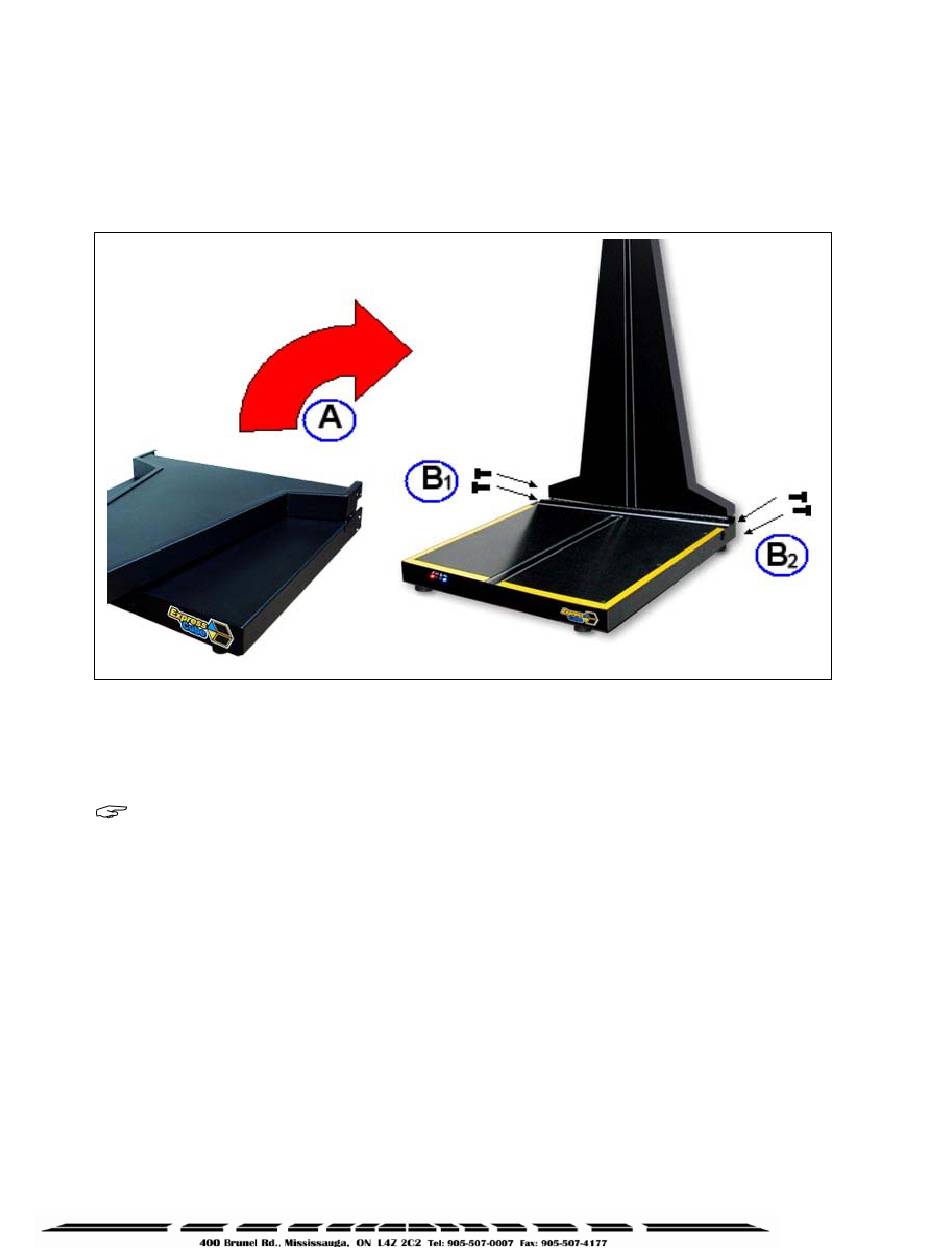

Refer to the diagram below to raise and secure the back sensor array from the shipping / storage
position. Inspect the device before starting the procedure to ensure that all bindings and/or shipping
restraints have been removed.
A. Carefully lift up the rear sensor panel 90° to the surface of the platform until the holes at the
rear of both parts of the assembly line up.
B. Insert the supplied four locking bolts into the back assembly and tighten.
It is important to put the locking bolts in without cross threading. Although the back
assembly requires little effort to be held in place, it is recommended that one person hold the
back sensor panel in place while a second person installs the locking bolts.
