8.10. LCD Controller Display

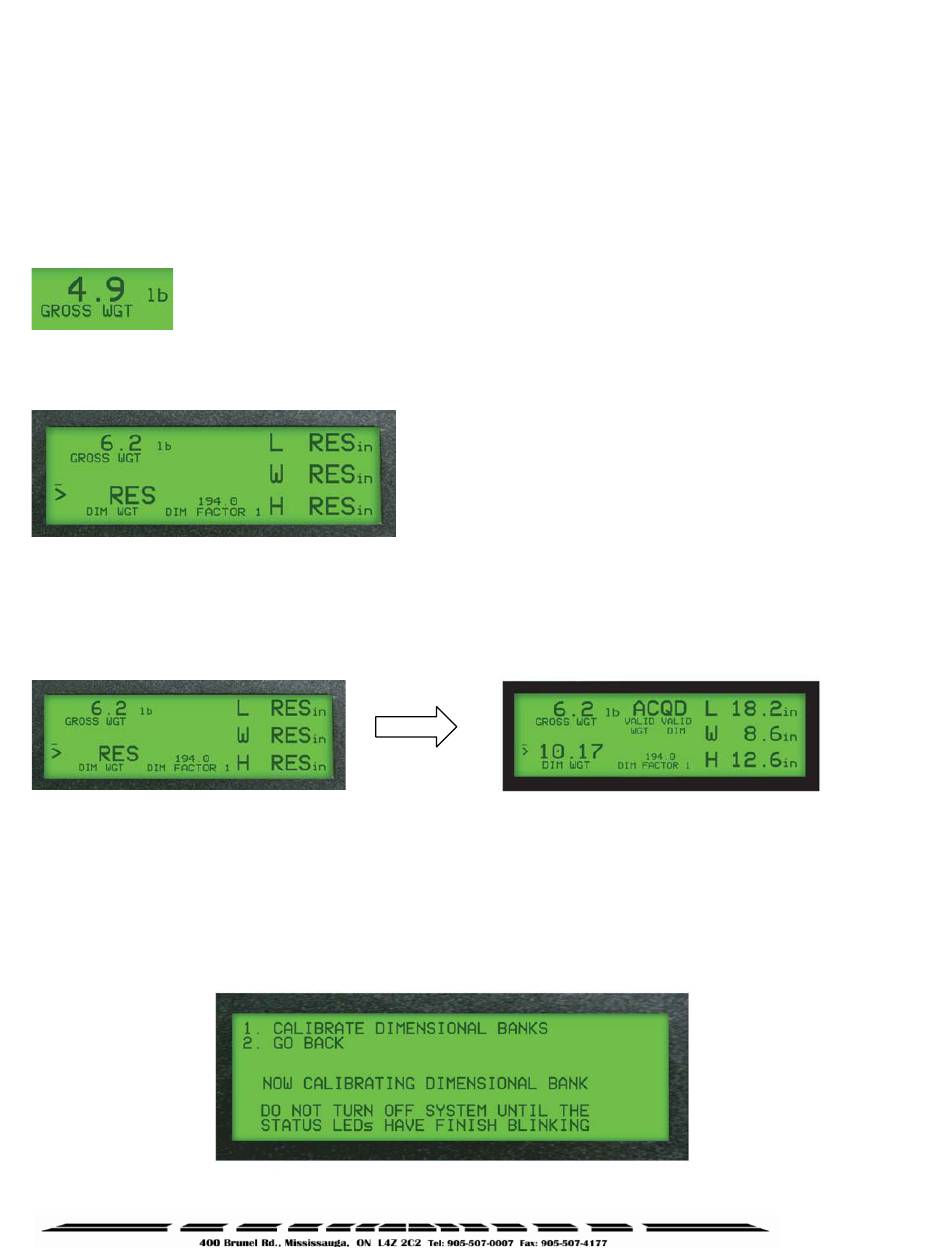

LCD display functions are highlighted here to acquaint you with the
measurement processes.
A) Gross weight is shown with one decimal figure which conforms to the
current measure unit specification.
B) The letters "RES" will appear while the system is resolving a "Valid weight"
and / or a "Valid dimension".
C) After a box has been placed on the platform for measurement, the "Acquire" button
can be pressed at any time while the system is still in the "RES" (resolve stage). This
allows faster weight and dimension acknowledgement and eliminates the need to
wait for the "Valid" numbers to settle in first, as required previously.
D) Calibrate DIM Banks - A very important addition to the capability of the new updated
Diagnostic version enables the operator to perform the sensor array bank calibration.
This procedure can be a valuable addition to a regular maintenance program as the
calibration will help the sensor measurements to run at peak performance and correct
any unexpected aberrations on the lens that can affect accurate readings. To access the
Calibration DIM Banks feature, press "PROG" on the keypad, then select number "5" .
Then follow the instructions on the display.
