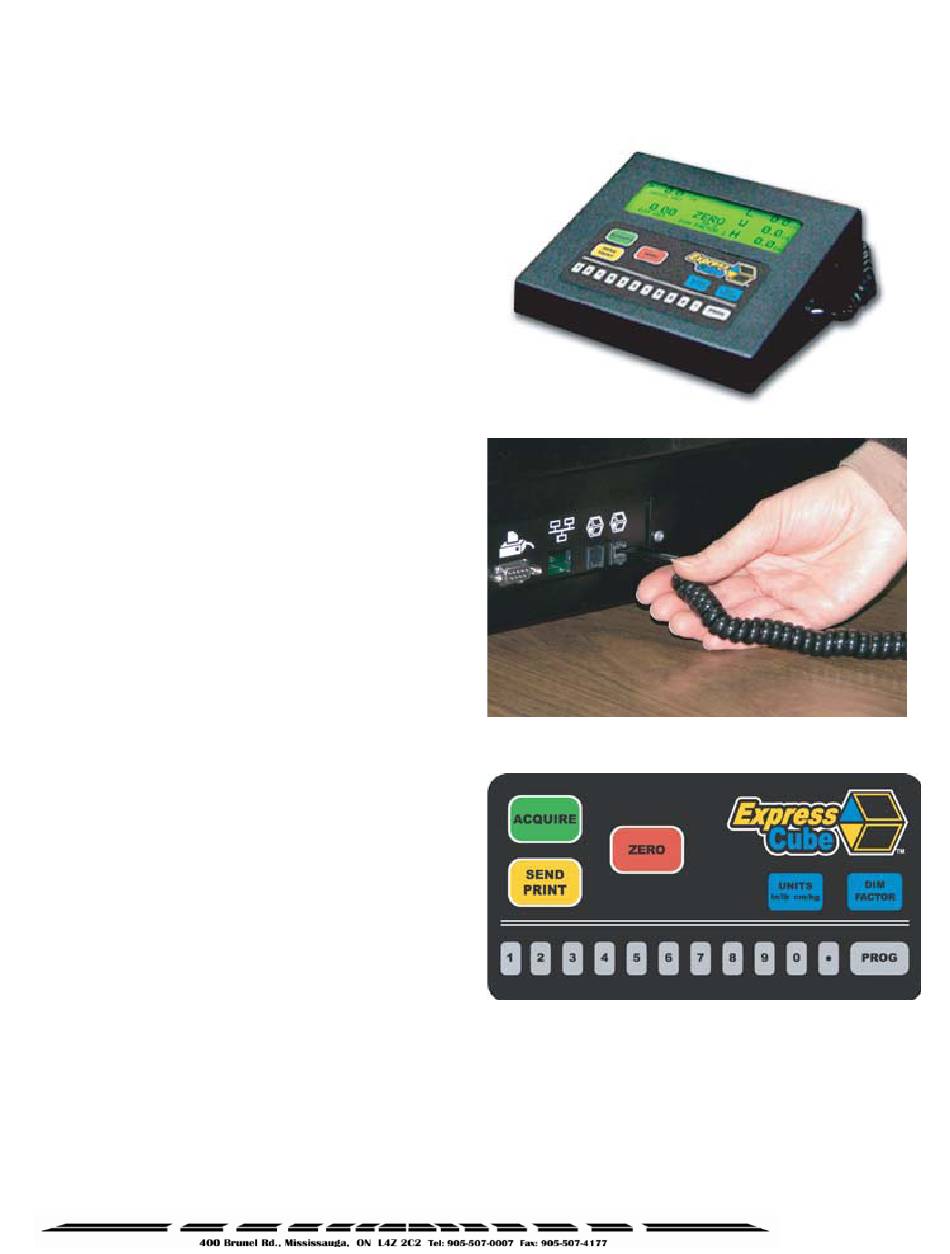

8.8. Controller Quick Setup Guide
1
Carefully remove the Controller
from the packing material and
place the unit in the final
location.
2
Place the device to be
connected in the location
that it will be used.
3
Carefully route the cable
and insert the RJ-11 connector
into either one of the two
ExpressCube external
device ports.
4
The control panel will be ready
for operation after the system
check is performed within a few
milliseconds of power-up.
